54775 Series

Catalog

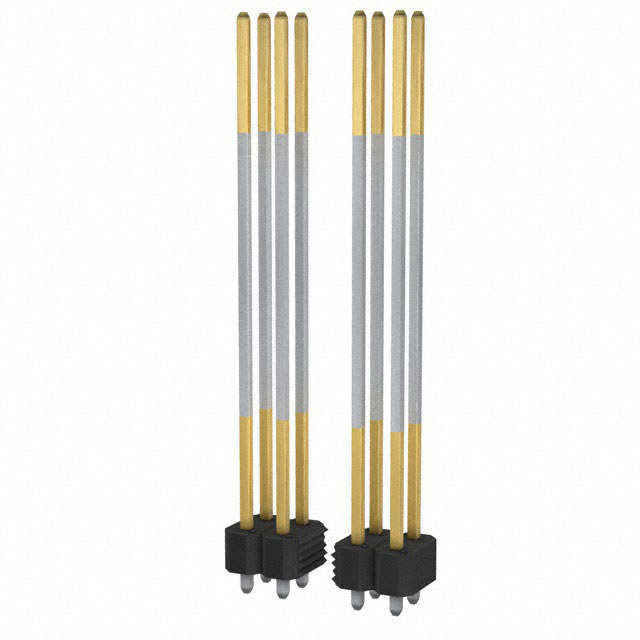

CONN HEADER VERT 36POS 2.54MM

Part	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions	Contact Type	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Shape	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Insulation Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Number of Rows	Connector Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 54775-101-36LF	Black	0.1 in	2.54 mm	1.5 mm	0.059 in	Phosphor Bronze	36	Male Pin	Unshrouded	Solder	0.1 in	2.54 mm	Push-Pull	Square	Board to Board Cable	2.54 mm	0.1 in	35.05 mm	1.38 in	Thermoplastic	Through Hole	30.99 mm	1.22 "	Gold GXT™	2	Header	UL94 V-0	All	30 Áin	0.76 Ám
Amphenol ICC (FCI) 54775-102-30LF	Black	0.1 in	2.54 mm	1.5 mm	0.059 in	Phosphor Bronze	30	Male Pin	Unshrouded	Solder	0.1 in	2.54 mm	Push-Pull	Square	Board to Board Cable	2.54 mm	0.1 in	35.05 mm	1.38 in	Thermoplastic	Through Hole	30.99 mm	1.22 "	Gold GXT™	2	Header	UL94 V-0	All	30 Áin	0.76 Ám
Amphenol ICC (FCI) 54775-602-36LF	Black	0.1 in	2.54 mm	1.5 mm	0.059 in	Phosphor Bronze	36	Male Pin	Unshrouded	Solder	0.1 in	2.54 mm	Push-Pull	Square	Board to Board Cable	2.54 mm	0.1 in	35.05 mm	1.38 in	Thermoplastic	Through Hole	30.99 mm	1.22 "	Gold GXT™	2	Header	UL94 V-0	All	30 Áin	0.76 Ám
Amphenol ICC (FCI) 54775-102-36LF	Black	0.1 in	2.54 mm	1.5 mm	0.059 in	Phosphor Bronze	36	Male Pin	Unshrouded	Solder	0.1 in	2.54 mm	Push-Pull	Square	Board to Board Cable	2.54 mm	0.1 in	35.05 mm	1.38 in	Thermoplastic	Through Hole	30.99 mm	1.22 "	Gold GXT™	2	Header	UL94 V-0	All	30 Áin	0.76 Ám
