NLV27WZ00 Series

Dual 2-Input NAND Gate

Catalog

Dual 2-Input NAND Gate

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Circuits	Number of Inputs	Supplier Device Package	Logic Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Max) [Max]	Current - Output High, Low [y]	Current - Output High, Low [x]	Package / Case [y]	Package / Case	Package / Case [y]
ON Semiconductor NL27WZ00USG-F22190	5.5 V	1.65 V	Surface Mount	2	2	US8	NAND Gate	-55 °C	125 °C	1 çA	32 mA	32 mA	2.3 mm	8-VFSOP	0.091 in

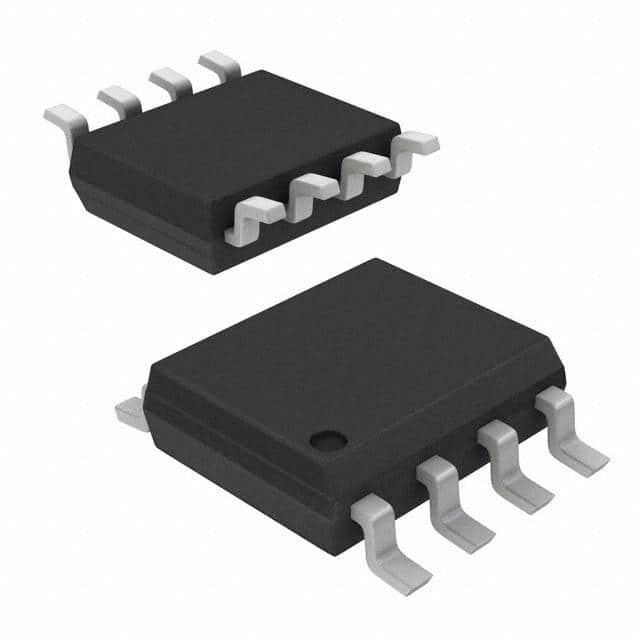

ON Semiconductor NL27WZ00USH
ON Semiconductor NL27WZ00USG	5.5 V	1.65 V	Surface Mount	2	2	US8	NAND Gate	-55 °C	125 °C	1 çA	32 mA	32 mA	2.3 mm	8-VFSOP	0.091 in

Dual 2-Input NAND Gate

• Extremely High Speed: tPD2.4 ns (typical) at VCC= 5 V

• Designed for 1.65 V to 5.5 V VCCOperation

• Over Voltage Tolerant Inputs

• LVTTL Compatible – Interface Capability With 5 V TTL Logic with VCC= 3 V

• LVCMOS Compatible

• 24 mA Balanced Output Sink and Source Capability

• Near Zero Static Supply Current Substantially Reduces System Power Requirements

• Replacement for NC7WZ00

• Chip Complexity: FET = 112

• Pb-Free Package is Available

• Designed for 1.65 V to 5.5 V Vcc Operation Wide Operating Vcc Range

The NL27WZ00 is a high performance dual 2 Input NAND Gate operating from a 1.65 V to 5.5 V supply.
