150-08 Series

Catalog

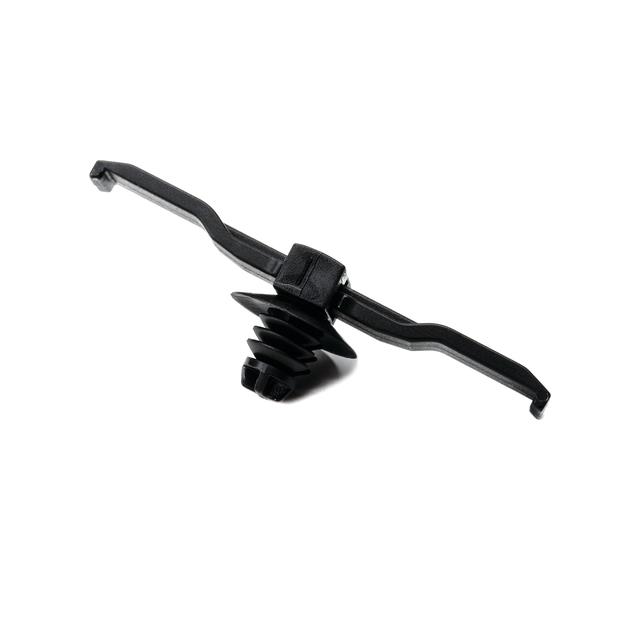

CBL CLIP BUNDLING BLACK ARROW

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Width [x]	Width [x]	Color	Features	Material	Type	Material Flammability Rating	Length	Length	Panel Hole Size [Max]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Mounting Type	Height [z]	Height [z]
HELLERMANNTYTON 150-08110	0.047 in	0.02 in	0.5 mm	1.2 mm	6 mm	0.236 in	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	Clip Bundling	UL94 V-2	2.126 in	54 mm	0.276 in	7 mm	6.3 mm	0.248 in	Arrowhead Cupped	7.7 mm	0.303 in
