046235 Series

Manufacturer: Molex

Catalog

CONN SOCKET 20-24AWG CRIMP GOLD

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Type	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish Thickness
Molex 0462355001	20 AWG	24 AWG	Gold	Lubricated Stamped	Socket	Crimp	15 µin	0.38 µm
Molex 0462350003	26 AWG	30 AWG	Gold		Socket	Crimp	15 µin	0.38 µm

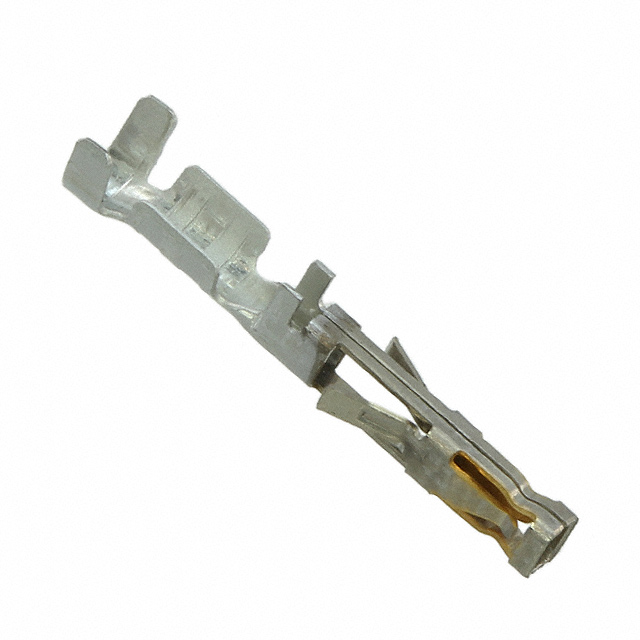

Molex 0462350004	26 AWG	30 AWG	Gold		Socket	Crimp	30 Áin	0.76 Ám

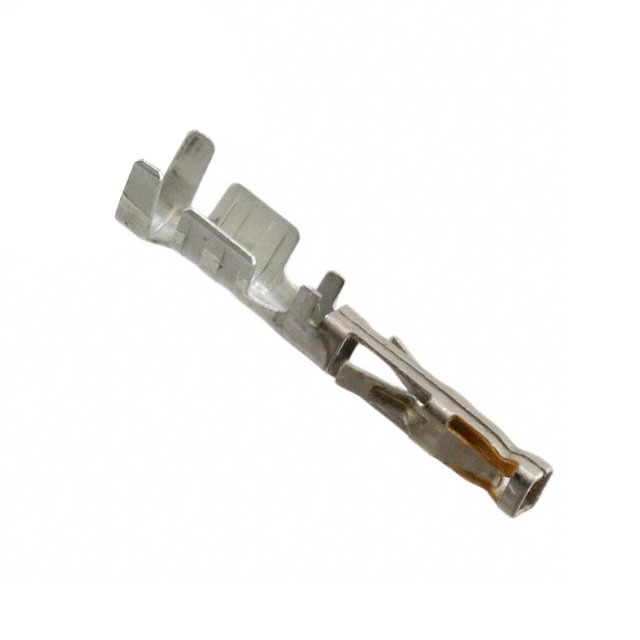

Molex 0462355002	20 AWG	24 AWG	Gold	Lubricated Stamped	Socket	Crimp	30 Áin	0.76 Ám
Molex 0462350002	20 AWG	24 AWG	Gold		Socket	Crimp	30 Áin	0.76 Ám
