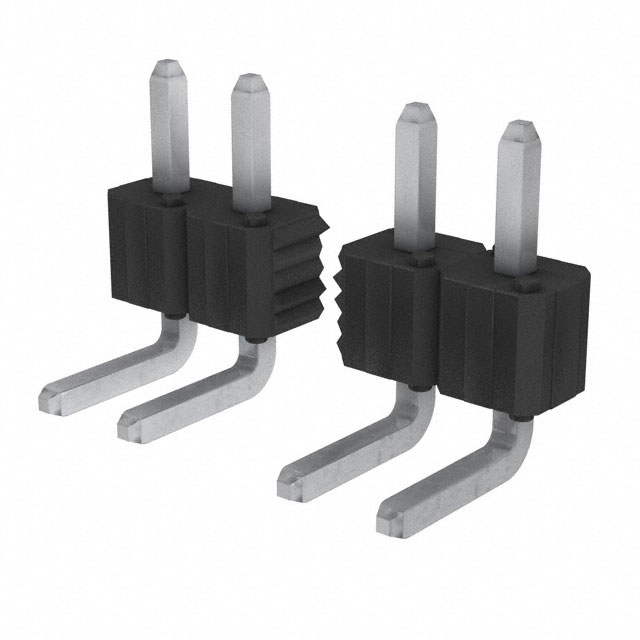

86641 Series

Catalog

CONN HEADER R/A 36POS 2.54MM

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Contact Shape	Mounting Type	Fastening Type	Material Flammability Rating	Number of Rows	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Termination	Contact Material	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 86641-436H	Black	2.54 çm	100 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Header	3.05 mm	0.12 in	0.095 in	2.41 mm	Square	Through Hole Right Angle	Push-Pull	UL94 V-0	1	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	All	Kinked Pin Solder	Phosphor Bronze	36
Amphenol ICC (FCI) 86641-412HLF	Black	2.54 çm	100 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Header	3.05 mm	0.12 in	0.095 in	2.41 mm	Square	Through Hole Right Angle	Push-Pull	UL94 V-0	1	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	All	Kinked Pin Solder	Phosphor Bronze	12	Tin
Amphenol ICC (FCI) 86641-426H	Black	2.54 çm	100 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Header	3.05 mm	0.12 in	0.095 in	2.41 mm	Square	Through Hole Right Angle	Push-Pull	UL94 V-0	1	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	All	Kinked Pin Solder	Phosphor Bronze	26
Amphenol ICC (FCI) 86641-406H	Black	2.54 çm	100 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Header	3.05 mm	0.12 in	0.095 in	2.41 mm	Square	Through Hole Right Angle	Push-Pull	UL94 V-0	1	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	All	Kinked Pin Solder	Phosphor Bronze	6
