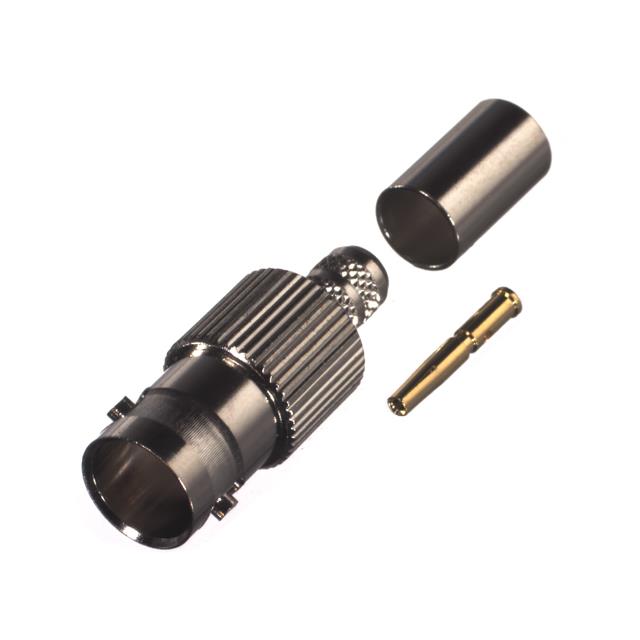

RFB-1724 Series
Manufacturer: RF Industries
Beta
⌘K
BNC FEMALE CRIMP; 75 OHMS
| Part | Body Finish | Body Material | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Impedance | Connector Type | Cable Group | Housing Color | Center Contact Material | Mounting Type | Fastening Type | Number of Ports | Connector Style | Contact Termination | Shield Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 V | 75 Ohms | Female Socket Jack | 179 179A 187 187A RG-161 | Silver | Phosphor Bronze | Free Hanging (In-Line) | Bayonet Lock | 1 | BNC | Crimp | Crimp | 2 GHz |
RF Industries | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 V | 75 Ohms | Female Socket Jack | Belden 1694A RG-6 | Silver | Phosphor Bronze | Free Hanging (In-Line) | Bayonet Lock | 1 | BNC | Crimp | Crimp | 2 GHz |
