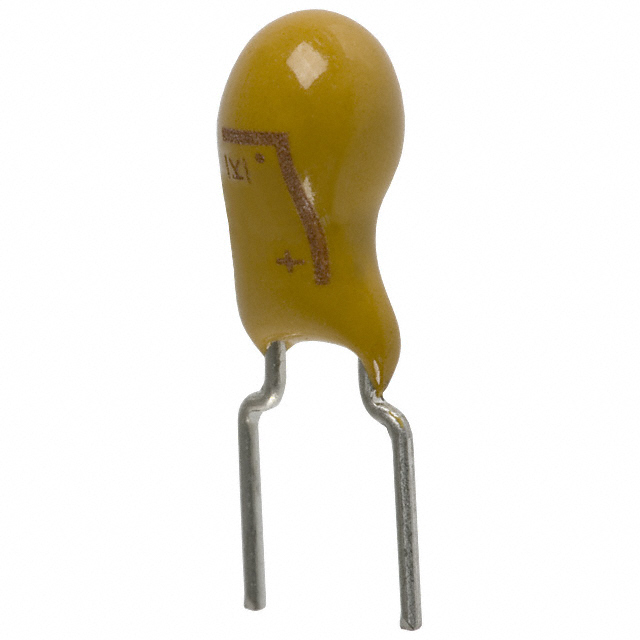

T356E Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITOR, POLAR, 10 ΜF, 20 V, ± 10%, PC PIN, 5 MM, 2.9 OHM

Part	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Type	Manufacturer Size Code	Features	Mounting Type	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET T356E106K020AT	2.9 Ohm	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	20 V	-55 C	125 °C	5.5 mm	0.217 in	10 µF	10 %	0.402 in	10.2 mm	Radial
KEMET T356E106K016AT	3.2 Ohms	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	16 V	-55 C	125 °C	5.5 mm	0.217 in	10 µF	10 %	0.402 in	10.2 mm	Radial
KEMET T356E336K006AT	3 Ohm	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	6.3 VDC	-55 C	125 °C	5.5 mm	0.217 in	33 ÁF	10 %	0.402 in	10.2 mm	Radial
KEMET T356E475M035AS	3 Ohm	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	35 V	-55 C	125 °C	5.5 mm	0.217 in	4.7 µF	20 %	0.402 in	10.2 mm	Radial
KEMET T356E225K050AS	3.5 Ohms	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	50 VDC	-55 C	125 °C	5.5 mm	0.217 in	2.2 µF	10 %	0.402 in	10.2 mm	Radial
KEMET T356E685K025AS	3.1 Ohm	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	25 VDC	-55 C	125 °C	5.5 mm	0.217 in	6.8 µF	10 %	0.402 in	10.2 mm	Radial
KEMET T356E106M025AT7301	2.5 Ohm	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	25 VDC	-55 C	125 °C	5.5 mm	0.217 in	10 µF	20 %			Radial	0.4 in	10.16 mm
KEMET T356E106K020AT7301		0.2 in	5.08 mm	Molded	E	General Purpose	Through Hole	20 V	-55 C	125 °C	5.5 mm	0.217 in	10 µF	10 %	0.402 in	10.2 mm	Radial
KEMET T356E475M035AT7301		0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	35 V	-55 C	125 °C	5.5 mm	0.217 in	4.7 µF	20 %	0.402 in	10.2 mm	Radial
KEMET T356E156K016AT	2.5 Ohm	0.2 in	5.08 mm	Conformal Coated	E	General Purpose	Through Hole	16 V	-55 C	125 °C	5.5 mm	0.217 in	15 µF	10 %	0.402 in	10.2 mm	Radial
