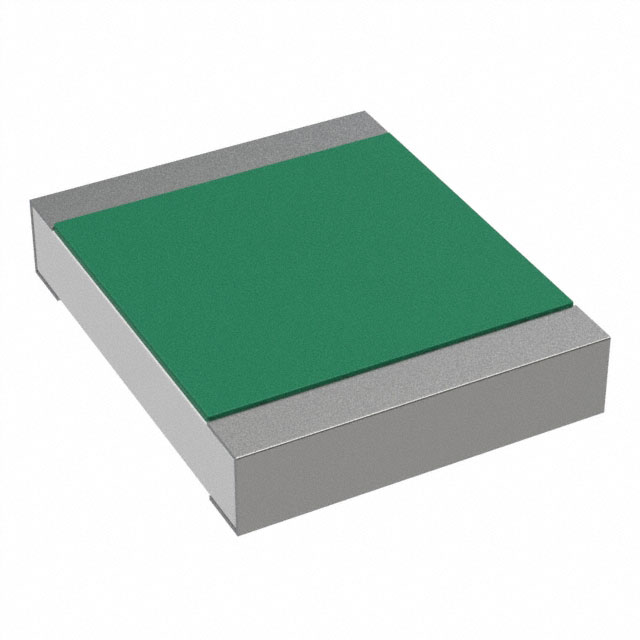

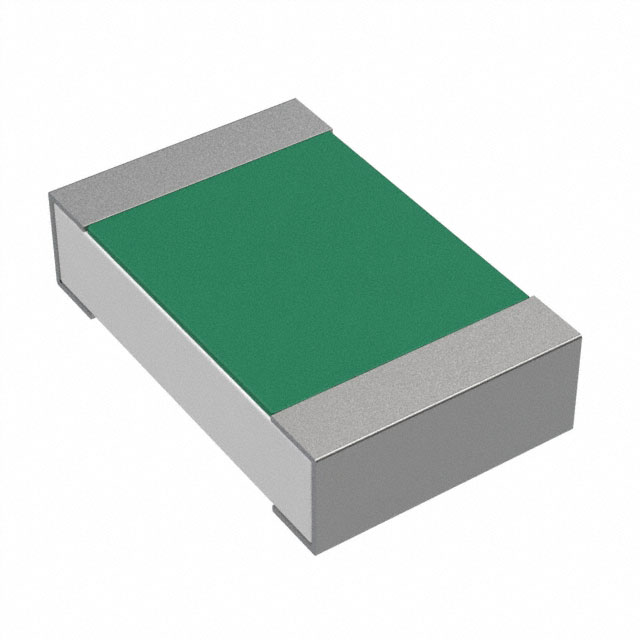

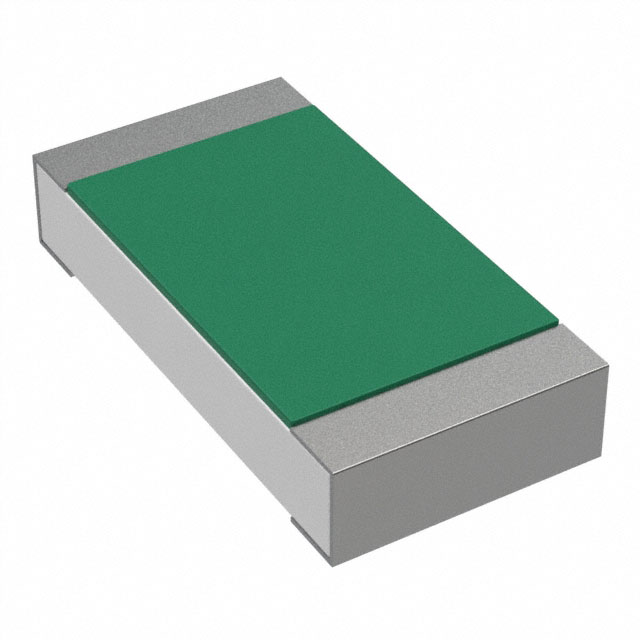

SG73S2 Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES 3.01K OHM 1% 1/3W 1206

...

Part	Composition	Package / Case	Tolerance	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Number of Terminations	Temperature Coefficient	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case
KOA Speer Electronics, Inc. SG73S2BTTD3011F	Thick Film	1206 (3216 Metric)	1 %	0.333 W	0.3333333333333333 W	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	1206	AEC-Q200	0.7 mm	0.028 in	3.01 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding
KOA Speer Electronics, Inc. SG73S2ATTD1802F	Thick Film	0805	1 %	250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			18 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
KOA Speer Electronics, Inc. SG73S2ATTD5492F	Thick Film	0805	1 %	250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			54.9 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
KOA Speer Electronics, Inc. SG73S2ETTD1430D	Thick Film	1210		0.5 W	0.5 W		0.102 " 2.6 mm		0.126 in 3.2 mm	155 °C	-55 °C	1210	AEC-Q200	0.7 mm	0.028 in	143 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding					3225 Metric
KOA Speer Electronics, Inc. SG73S2ATTD6343D	Thick Film	0805		250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			634 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
KOA Speer Electronics, Inc. SG73S2BTTD3601F	Thick Film	1206 (3216 Metric)	1 %	0.333 W	0.3333333333333333 W	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	1206	AEC-Q200	0.7 mm	0.028 in	3.6 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding
KOA Speer Electronics, Inc. SG73S2ETTD1503F	Thick Film	1210	1 %	0.5 W	0.5 W		0.102 " 2.6 mm		0.126 in 3.2 mm	155 °C	-55 °C	1210	AEC-Q200	0.7 mm	0.028 in	150000 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding					3225 Metric
KOA Speer Electronics, Inc. SG73S2BTTD2400D	Thick Film	1206 (3216 Metric)		0.333 W	0.3333333333333333 W	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	1206	AEC-Q200	0.7 mm	0.028 in	240 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding
KOA Speer Electronics, Inc. SG73S2ETTD8251D	Thick Film	1210		0.5 W	0.5 W		0.102 " 2.6 mm		0.126 in 3.2 mm	155 °C	-55 °C	1210	AEC-Q200	0.7 mm	0.028 in	8.25 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding					3225 Metric
KOA Speer Electronics, Inc. SG73S2ATTD2700F	Thick Film	0805	1 %	250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			270 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
