0501-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

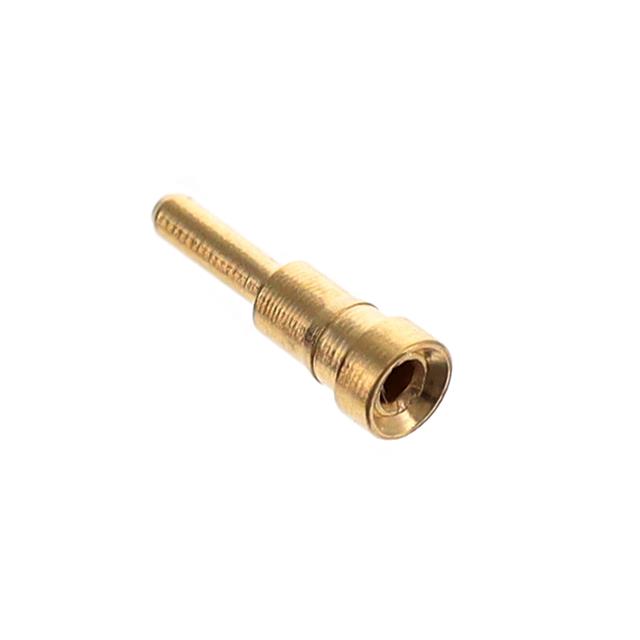

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Tail Type	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0501-0-15-01-30-27-04-0	-55 C	125 °C	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.77 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm	30 Áin	0.76 Ám	1.45 mm	0.057 in	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0501-0-15-01-30-02-04-0	-55 C	125 °C	Tin-Lead	0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.77 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm	100 µin	2.54 µm	1.45 mm	0.057 in	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0501-0-15-80-30-14-04-0	-55 C	125 °C	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.78 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm	10 Áin	0.25 Ám	1.45 mm	0.057 in	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0501-0-15-80-30-09-04-0	-55 C	125 °C		0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.78 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm			1.45 mm	0.057 in	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0501-0-15-80-30-27-04-0	-55 C	125 °C	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.78 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm	30 Áin	0.76 Ám	1.45 mm	0.057 in	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0501-0-15-15-30-27-04-0	-55 C	125 °C	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.77 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm	30 Áin	0.76 Ám	1.45 mm	0.057 in	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0501-0-15-01-30-14-04-0	-55 C	125 °C	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Press-Fit	1.77 mm	0.07 in	Beryllium Copper	Standard Tail	0.151 in	3.84 mm	10 Áin	0.25 Ám	1.45 mm	0.057 in	0.03 in	0.76 mm
