THS4521-HT Series

High Temperature, Very Low Power, Negative Rail Input, Rail-to-Rail Output, Differential Amp

Catalog

High Temperature, Very Low Power, Negative Rail Input, Rail-to-Rail Output, Differential Amp

Part	Mounting Type	Current - Supply	Current - Input Bias	Current - Output / Channel	Voltage - Supply Span (Min) [Min]	Amplifier Type	Gain Bandwidth Product	Slew Rate	Voltage - Input Offset	Package / Case	Package / Case [custom]	Package / Case	Number of Circuits	Output Type	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Package / Case [y]	Package / Case [x]	Current - Supply (Main IC)	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplied Contents	Utilized IC / Part	Board Type	Channels per IC
Texas Instruments THS4521IDGKT	Surface Mount	1.14 mA	700 nA	55 mA	2.5 V	Differential	95 MHz	600 V/µs	240 µV	8-MSOP 8-TSSOP	0.118 in	3 mm	1	Differential Rail-to-Rail	145 MHz	85 °C	-40 °C	5.5 V
Texas Instruments THS4521SHKJ	Surface Mount	1 mA	750 nA	35 mA	2.5 V	Differential	81 MHz	422.5 V/µs	100 çV	8-CFlatPack			1	Differential Rail-to-Rail	104.3 MHz	210 °C	-55 °C	3.6 V	8-CFP
Texas Instruments THS4521HD	Surface Mount	1 mA	750 nA	35 mA	2.5 V	Differential	81 MHz	422.5 V/µs	100 çV	8-SOIC			1	Differential Rail-to-Rail	104.3 MHz	347 °F	-55 °C	3.6 V	8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4521IDR	Surface Mount	1.14 mA	700 nA	55 mA	2.5 V	Differential	95 MHz	600 V/µs	240 µV	8-SOIC			1	Differential Rail-to-Rail	145 MHz	85 °C	-40 °C	5.5 V	8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4521ID	Surface Mount	1.14 mA	700 nA	55 mA	2.5 V	Differential	95 MHz	600 V/µs	240 µV	8-SOIC			1	Differential Rail-to-Rail	145 MHz	85 °C	-40 °C	5.5 V	8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4521SHKQ	Surface Mount	1 mA	750 nA	35 mA	2.5 V	Differential	81 MHz	422.5 V/µs	100 çV	8-CSOIC			1	Differential Rail-to-Rail	104.3 MHz	210 °C	-55 °C	3.6 V	8-CFP	5.65 mm	0.22 in

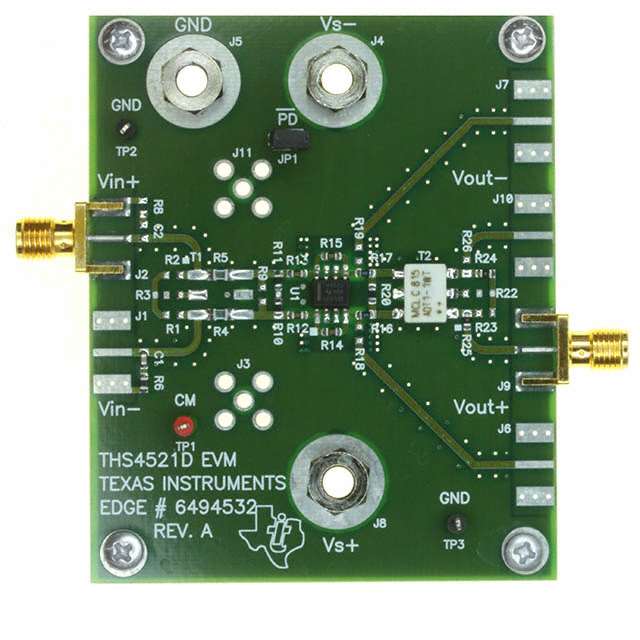

Texas Instruments THS4521EVM				55 mA		Differential		600 V/µs						Differential Rail-to-Rail	145 MHz							1.1 mA	-1.25 V 2.5 V	2.75 V 5.5 V	Board(s)	THS4521	Fully Populated	1 - Single

Catalog

High Temperature, Very Low Power, Negative Rail Input, Rail-to-Rail Output, Differential Amp

Key Features

• Fully Differential ArchitectureBandwidth: 40.7 MHz (210°C)Slew Rate: 353.5 V/µs (210°C)HD2: –96 dBc at 1 kHz(1 VRMS, RL= 1 kΩ) (210°C)HD3: –91.5 dBc at 1 kHz(1 VRMS, RL= 1 kΩ) (210°C)Input Voltage Noise: 19.95 nV/√Hz(f = 100 kHz)Open-Loop Gain: 90 dB (typ) (210°C)NRI—Negative Rail InputRRO—Rail-to-Rail OutputOutput Common-Mode Control (with Low Offset and Drift)Power Supply:Voltage: 2.5 V (±1.25 V) to 3.3 V (±1.65 V)Current: 1.4 mA/ch (3.3 V)Power-Down Capability: 10 µA (typ) (210°C)Fully Differential ArchitectureBandwidth: 40.7 MHz (210°C)Slew Rate: 353.5 V/µs (210°C)HD2: –96 dBc at 1 kHz(1 VRMS, RL= 1 kΩ) (210°C)HD3: –91.5 dBc at 1 kHz(1 VRMS, RL= 1 kΩ) (210°C)Input Voltage Noise: 19.95 nV/√Hz(f = 100 kHz)Open-Loop Gain: 90 dB (typ) (210°C)NRI—Negative Rail InputRRO—Rail-to-Rail OutputOutput Common-Mode Control (with Low Offset and Drift)Power Supply:Voltage: 2.5 V (±1.25 V) to 3.3 V (±1.65 V)Current: 1.4 mA/ch (3.3 V)Power-Down Capability: 10 µA (typ) (210°C)

Description

The THS4521 is a very low-power, fully differential op amp with rail-to-rail output and an input common-mode range that includes the negative rail. This amplifier is designed for low-power data acquisition systems and high-density applications where power dissipation is a critical parameter, and provides exceptional performance in audio applications. The THS4521 features accurate output common-mode control that allows for dc-coupling when driving analog-to-digital converters (ADCs). This control, coupled with an input common-mode range below the negative rail as well as rail-to-rail output, allows for easy interfacing between single-ended, ground-referenced signal sources. Additionally, this device is ideally suited for driving both successive-approximation register (SAR) and delta-sigma (ΔΣ) ADCs using only a single 2.5-V to 3.3-V and ground power supply. The THS4521 is characterized for operation from –55°C to 210°C. The THS4521 is a very low-power, fully differential op amp with rail-to-rail output and an input common-mode range that includes the negative rail. This amplifier is designed for low-power data acquisition systems and high-density applications where power dissipation is a critical parameter, and provides exceptional performance in audio applications. The THS4521 features accurate output common-mode control that allows for dc-coupling when driving analog-to-digital converters (ADCs). This control, coupled with an input common-mode range below the negative rail as well as rail-to-rail output, allows for easy interfacing between single-ended, ground-referenced signal sources. Additionally, this device is ideally suited for driving both successive-approximation register (SAR) and delta-sigma (ΔΣ) ADCs using only a single 2.5-V to 3.3-V and ground power supply. The THS4521 is characterized for operation from –55°C to 210°C.
