T41454 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

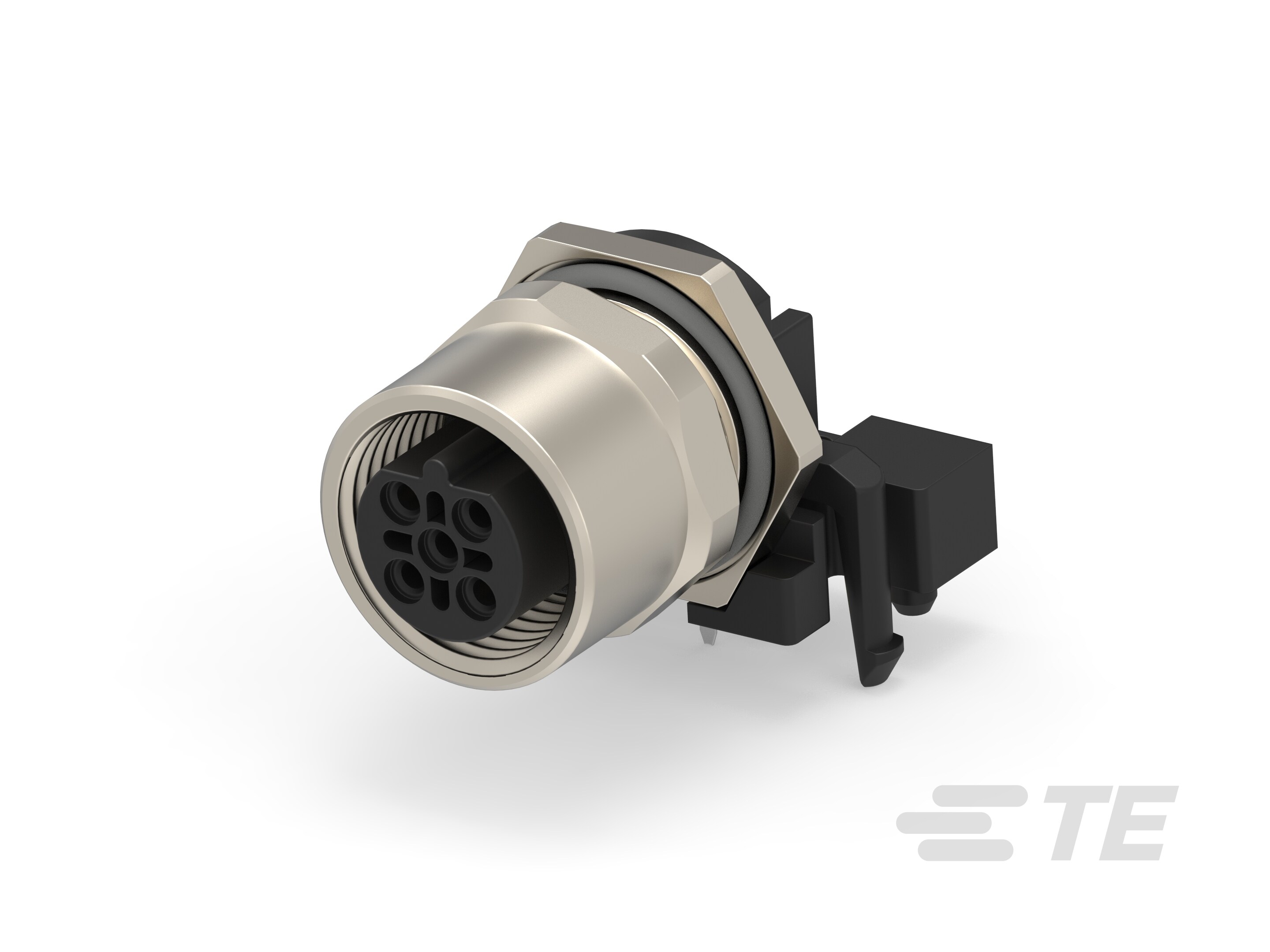

M12 R/A F PNL STAMPED PIN B-CODE 2P SHLD
| Part | Contact Material | Insert Material | Contact Finish Thickness - Mating | Applications | Primary Material | Features | Orientation | Voltage Rating | Number of Positions | Shell Size - Insert | Ingress Protection | Color | Shielding | Shell Finish | Shell Material | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Feature | Fastening Type | Connector Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Flash | Industrial | Metal | Board Guide Board Lock | B | 250 V | 2 | M12-2 | IP67 - Dust Tight Waterproof | Silver | Shielded | Nickel | Copper Alloy | Panel Mount Right Angle Through Hole | 4 A | 85 °C | -40 C | Solder | Bulkhead | Threaded | Plug Female Sockets | Gold |
 TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Flash | Industrial | Metal | Board Guide Board Lock | B | 250 V | 2 | M12-2 | IP67 - Dust Tight Waterproof | Silver | Unshielded | Nickel | Copper Alloy | Panel Mount Right Angle Through Hole | 4 A | 85 °C | -40 C | Solder | Bulkhead | Threaded | Plug Female Sockets | Gold |
 TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Flash | Industrial | Metal | Board Guide Board Lock | B | 60 VDC | 5 | M12-5 | IP67 - Dust Tight Waterproof | Silver | Shielded | Nickel | Copper Alloy | Panel Mount Right Angle Through Hole | 4 A | 85 °C | -40 C | Solder | Bulkhead | Threaded | Plug Female Sockets | Gold |
 TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Flash | Industrial | Metal | Board Guide Board Lock | B | 250 V | M12-3 | IP67 - Dust Tight Waterproof | Silver | Shielded | Nickel | Copper Alloy | Panel Mount Right Angle Through Hole | 4 A | 85 °C | -40 C | Solder | Bulkhead | Threaded | Plug Female Sockets | Gold | |
 TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Flash | Industrial | Metal | Board Guide Board Lock | B | 60 VDC | 5 | M12-5 | IP67 - Dust Tight Waterproof | Silver | Unshielded | Nickel | Copper Alloy | Panel Mount Right Angle Through Hole | 4 A | 85 °C | -40 C | Solder | Bulkhead | Threaded | Plug Female Sockets | Gold |
