325-086 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 86POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Flange Feature	Contact Finish	Card Type	Contact Material	Card Thickness	Card Thickness	Mounting Type	Number of Rows [custom]	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Gender	Termination	Number of Positions	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]

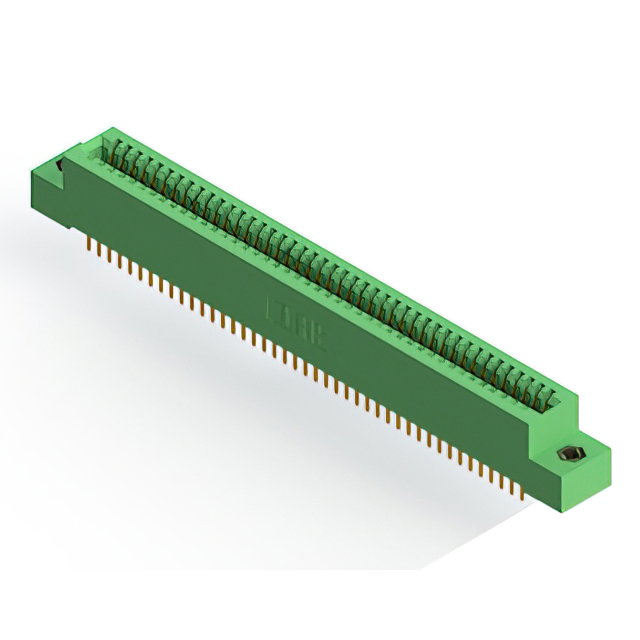

EDAC Inc. 325-086-520-207	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening	Gold	Non Specified - Dual Edge	Copper Alloy	3.18 mm	0.125 in	Through Hole	2	Dual	Green	0.25 Ám	10 Áin	Cantilever	Female	Solder	86	43	-65 ░C	125 °C

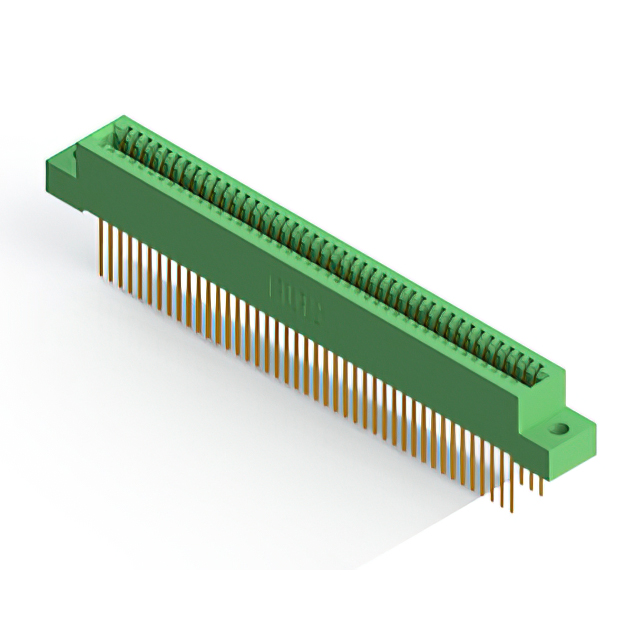

EDAC Inc. 325-086-540-209	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	Gold	Non Specified - Dual Edge	Copper Alloy	3.18 mm	0.125 in	Through Hole	2	Dual	Green	0.25 Ám	10 Áin	Cantilever	Female	Wire Wrap	86	43	-65 ░C	125 °C	0.16 "	4.06 mm

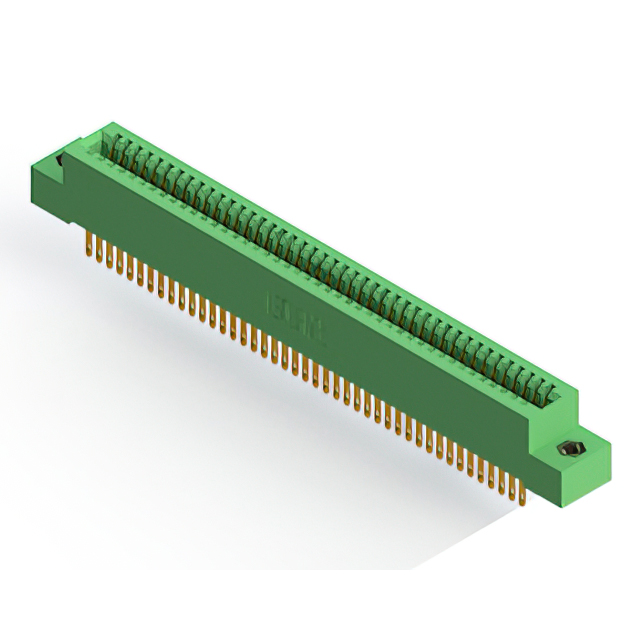

EDAC Inc. 325-086-500-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Dual Edge	Copper Alloy	3.18 mm	0.125 in	Through Hole	2	Dual	Green	0.25 Ám	10 Áin	Cantilever	Female	Solder Eyelet(s)	86	43	-65 ░C	125 °C
EDAC Inc. 325-086-500-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm		Gold	Non Specified - Dual Edge	Copper Alloy	3.18 mm	0.125 in	Through Hole	2	Dual	Green	0.25 Ám	10 Áin	Cantilever	Female	Solder Eyelet(s)	86	43	-65 ░C	125 °C
EDAC Inc. 325-086-540-207	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening	Gold	Non Specified - Dual Edge	Copper Alloy	3.18 mm	0.125 in	Through Hole	2	Dual	Green	0.25 Ám	10 Áin	Cantilever	Female	Wire Wrap	86	43	-65 ░C	125 °C
