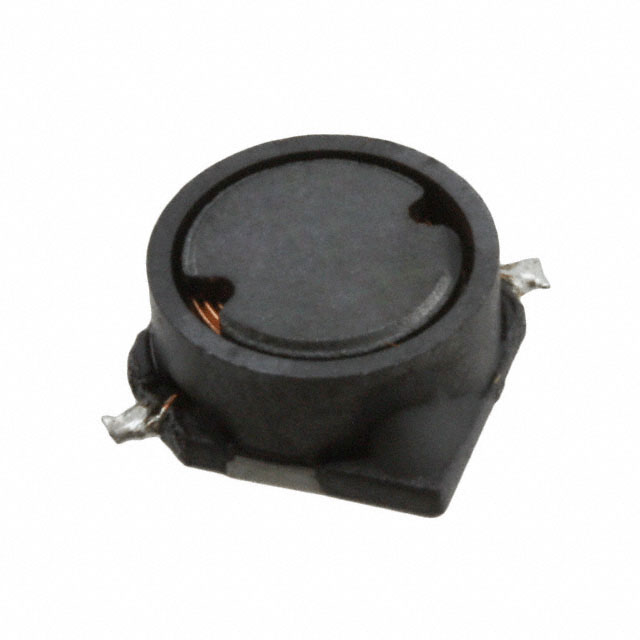

SRR7032 Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SHIELDED WIREWOUND 6.8UH 20% 1KHZ 17Q-FACTOR FERRITE 1.6A 0.054OHM DCR T/R
| Part | Inductance Frequency - Test | Type | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Current - Saturation (Isat) | Inductance | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Q @ Freq | Shielding | DC Resistance (DCR) [Max] | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) | Material - Core | Frequency - Self Resonant | DC Resistance (DCR) | Q @ Freq [custom] | Q @ Freq [custom] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 1.8 A | 6.8 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 7.96 MHz 17 | Shielded | 54 mOhm | 1.6 A | 0.134 in | 3.4 mm | Ferrite | 37 MHz | ||||
Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 1.2 A | 15 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 22 | Shielded | 1.1 A | 0.134 in | 3.4 mm | Ferrite | 32 MHz | 95 mOhm | ||||
 Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 320 mA | 220 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | Shielded | 1.3 Ohm | 0.3 A | 0.134 in | 3.4 mm | Ferrite | 7.5 MHz | 796 kHz | 47 | |||
 Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 2 A | 4.7 ÁH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 7.96 MHz 16 | Shielded | 42 mOhm | 2 A | 0.134 in | 3.4 mm | Ferrite | 43 MHz | ||||
 Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 500 mA | 100 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | Shielded | 0.45 A | 0.134 in | 3.4 mm | Ferrite | 12 MHz | 796 kHz | 28 | 540 mOhm | |||
Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 1.05 A | 22 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 2.52 MHz 20 | Shielded | 135 mOhm | 960 mA | 0.134 in | 3.4 mm | Ferrite | 29 MHz | ||||
Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 2.6 A | 2.2 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 7.96 MHz 12 | Shielded | 2.65 A | 0.134 in | 3.4 mm | Ferrite | ||||||
Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 140 mA | 1 mH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 120 252 kHz | Shielded | 5.4 Ohm | 150 mA | 0.134 in | 3.4 mm | Ferrite | 3.1 MHz | ||||
Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 5.6 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | Shielded | 0.134 in | 3.4 mm | Ferrite | |||||||||
Bourns Inc. | 100 kHz | Drum Core Wirewound | 20 % | 125 °C | -40 C | 150 mA | 680 µH | Nonstandard | 0.276 " | 0.276 in | 7 mm | 7 mm | Surface Mount | 58 796 kHz | Shielded | 3.75 Ohm | 160 mA | 0.134 in | 3.4 mm | Ferrite | 3.8 MHz |
