51K611 Series

Catalog

CONN BNC JACK STR 50OHM SOLDER

Part	Body Finish	Body Material	Voltage Rating	Includes	Mating Cycles	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Housing Color	Impedance	Connector Style	Center Contact Material	Mounting Type	Contact Termination	Frequency - Max [Max]	Fastening Type	Shield Termination	Mounting Feature	Connector Type	Number of Ports	Cable Group

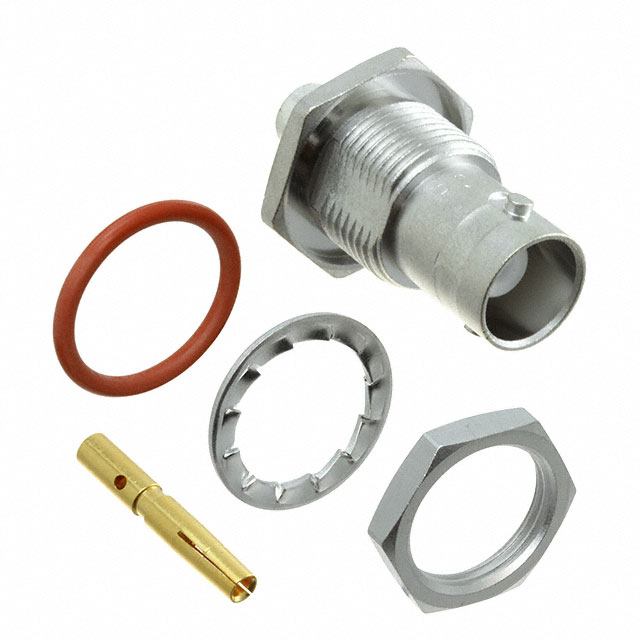

Rosenberger 51K611-272N5	White Bronze	Brass	400 V	1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut	500	Polytetrafluoroethylene (PTFE)	85 °C	-45 °C	Gold	Silver	50 Ohms	BNC	Bronze	Panel Mount	Solder	10 GHz	Bayonet Lock	Solder	Bulkhead - Front Side Nut	Female Socket Jack	1

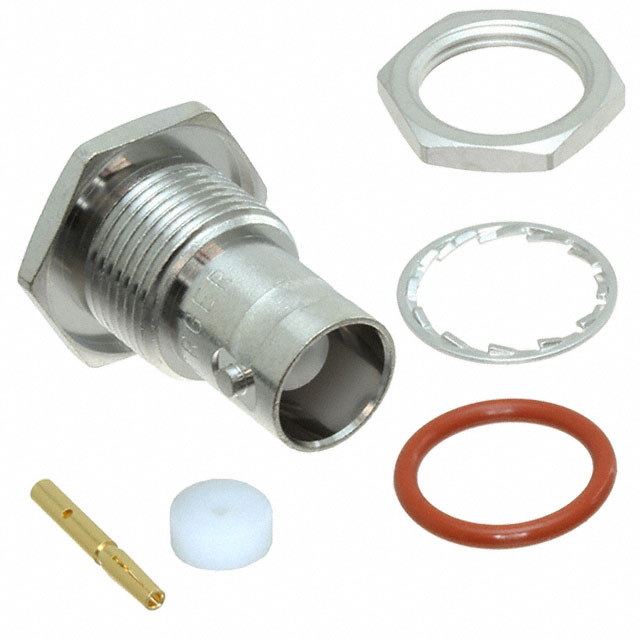

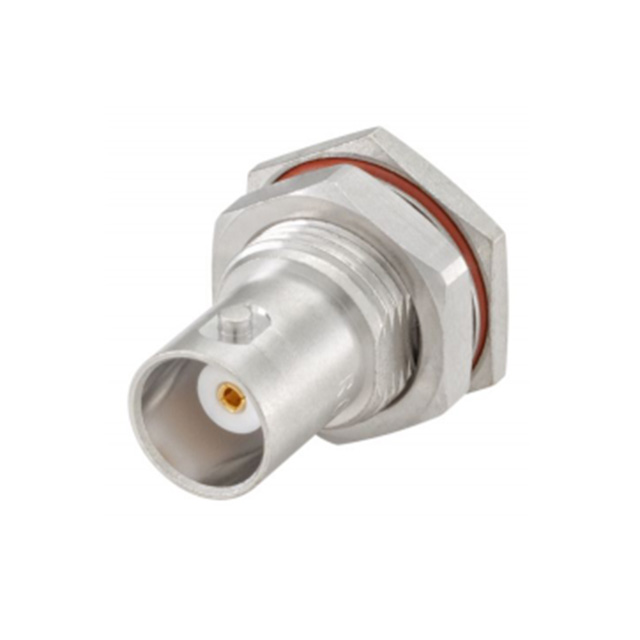

Rosenberger 51K611-271N5	White Bronze	Brass	400 V	1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut	500	Polytetrafluoroethylene (PTFE)	85 °C	-45 °C	Gold	Silver	50 Ohms	BNC	Bronze	Panel Mount	Solder	10 GHz	Bayonet Lock	Solder	Bulkhead - Front Side Nut	Female Socket Jack	1	RG-405 (.085" Semi Rigid)
