TPA2010D1 Series

2.5-W, analog input Class-D audio amp with variable gain & short-circuit protection

Catalog

2.5-W, analog input Class-D audio amp with variable gain & short-circuit protection

Part	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Board Type	Utilized IC / Part	Supplied Contents
Texas Instruments TPA2010D1YZFT	Class D	Surface Mount	85 °C	-40 °C	9-DSBGA	9-UFBGA DSBGA	Depop Differential Inputs Shutdown Thermal Protection	2.5 V	5.5 V	1-Channel (Mono)	2.5 W	1

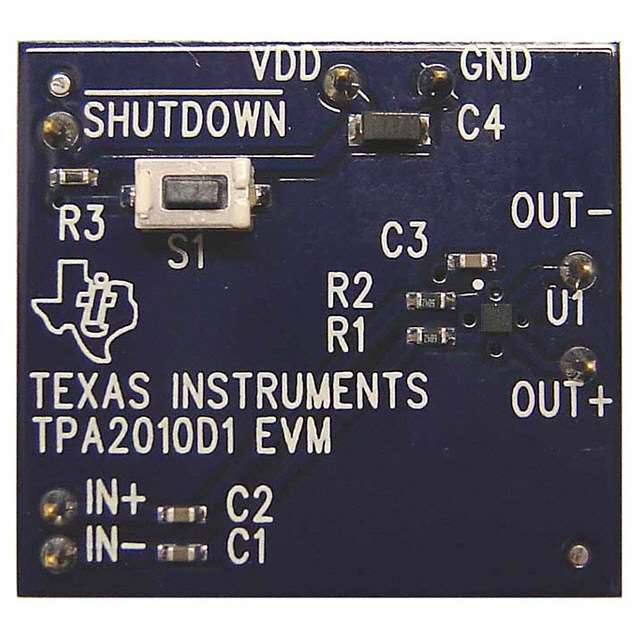

Texas Instruments TPA2010D1EVM								2.5 V	5.5 V	1-Channel (Mono)	2.5 W	1	Fully Populated	TPA2010D1	Board(s)

Catalog

2.5-W, analog input Class-D audio amp with variable gain & short-circuit protection

Key Features

• Maximum Battery Life and Minimum HeatEfficiency with an 8-Ω Speaker:88% at 400 mW80% at 100 mW2.8-mA Quiescent Current0.5-µA Shutdown CurrentOnly Three External ComponentsOptimized PWM Output Stage Eliminates LCOutput FilterInternally Generated 250-kHz SwitchingFrequency Eliminates Capacitor and ResistorImproved PSRR (–75 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) Eliminates Need for aVoltage RegulatorFully Differential Design Reduces RFRectification and Eliminates Bypass CapacitorImproved CMRR Eliminates Two InputCoupling CapacitorsDie-size ball grid (DSBGA)NanoFree™ Lead-Free (YZF)NanoStar™ SnPb (YEF)Maximum Battery Life and Minimum HeatEfficiency with an 8-Ω Speaker:88% at 400 mW80% at 100 mW2.8-mA Quiescent Current0.5-µA Shutdown CurrentOnly Three External ComponentsOptimized PWM Output Stage Eliminates LCOutput FilterInternally Generated 250-kHz SwitchingFrequency Eliminates Capacitor and ResistorImproved PSRR (–75 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) Eliminates Need for aVoltage RegulatorFully Differential Design Reduces RFRectification and Eliminates Bypass CapacitorImproved CMRR Eliminates Two InputCoupling CapacitorsDie-size ball grid (DSBGA)NanoFree™ Lead-Free (YZF)NanoStar™ SnPb (YEF)

Description

The TPA2010D1 (sometimes referred to as TPA2010) is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm die-size ball grid array (DSBGA) that requires only three external components. Features like 88% efficiency, –75-dB PSRR, improved RF-rectification immunity, and 8 mm2total PCB area make the TPA2010D1 (TPA2010) class-D amp ideal for cellular handsets. A fast start-up time of 1 ms with minimal pop makes the TPA2010D1 (TPA2010) ideal for PDA applications. In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the TPA2010D1. The TPA2010D1 allows independent gain while summing signals from separate sources and has a low 36 µV noise floor that is A-weighted. The TPA2010D1 (sometimes referred to as TPA2010) is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm die-size ball grid array (DSBGA) that requires only three external components. Features like 88% efficiency, –75-dB PSRR, improved RF-rectification immunity, and 8 mm2total PCB area make the TPA2010D1 (TPA2010) class-D amp ideal for cellular handsets. A fast start-up time of 1 ms with minimal pop makes the TPA2010D1 (TPA2010) ideal for PDA applications. In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the TPA2010D1. The TPA2010D1 allows independent gain while summing signals from separate sources and has a low 36 µV noise floor that is A-weighted.
