055763 Series
Manufacturer: Molex
Beta
⌘K

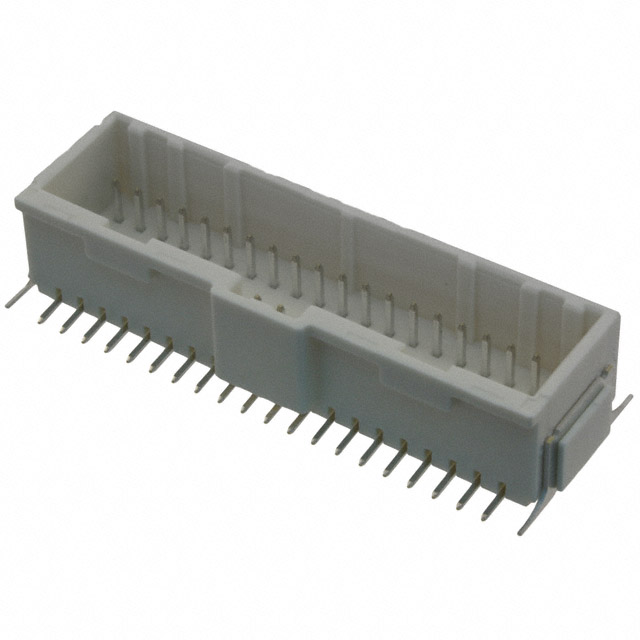

CONN SHROUDED HEADER (4 SIDES) HDR 40 POS 2MM SOLDER ST SMD MICROCLASP T/R
| Part | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Number of Positions | Mounting Type | Number of Rows | Shrouding | Contact Finish - Post | Insulation Height | Insulation Height | Insulation Material | Contact Material | Insulation Color | Contact Shape | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Positions Loaded | Material Flammability Rating | Applications | Termination | Features | Mated Stacking Heights | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Latch Holder | 5 mm | 0.197 in | Male Pin | 40 | Surface Mount | 2 | Shrouded - 4 Wall | Tin | 10.11 mm | 0.398 in | Polyamide (PA46) Nylon 4/6 | Brass | Natural | Square | 0.079 in | 2 mm | 78.7 µin | 2 µm | Header | All | UL94 V-0 | General Purpose Industrial Medical | Solder | Solder Retention | 14.15 mm | Board to Cable/Wire |
