1.10107 Series
Manufacturer: RAFI USA
Beta
⌘K

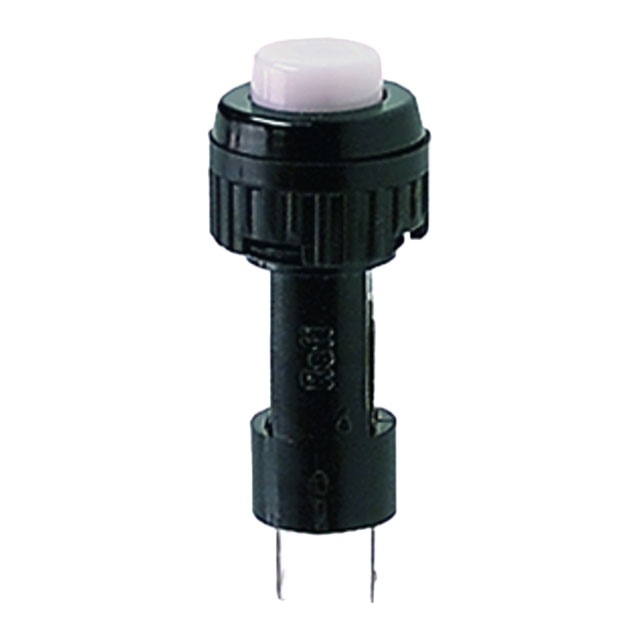

SWITCH, PUSHBUTTON, MOM, OPAQUE, WHITE
| Part | Voltage Rating - DC | Ingress Protection | Actuator Marking | Type | Color - Actuator/Cap | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Circuit | Switch Function | Termination Style | Current Rating (Amps) | Mounting Type | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | 24 V | IP40 | No Marking | Standard | White | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | ||
RAFI USA | 24 V | IP40 | No Marking | Standard | White | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | 40000 Cycles | |
 RAFI USA | 24 V | IP40 | No Marking | Standard | Red | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | 40000 Cycles | |
RAFI USA | 24 V | IP40 | No Marking | Standard | Red | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | ||
 RAFI USA | 24 V | IP40 | No Marking | Standard | Yellow | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | 40000 Cycles | |
 RAFI USA | 24 V | IP40 | No Marking | Standard | Green | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | ||
RAFI USA | 24 V | IP40 | No Marking | Standard | Green | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front | 40000 Cycles | |
RAFI USA | 24 V | IP40 | No Marking | Standard | Yellow | Button Round | -25 °C | 70 °C | 24 V | 9.1 mm | SPST-NO | Off-Mom | Solder Lug | 100 mA | Panel Mount Front |
