JWM21R Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Mechanical Life | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Actuator Type | Color - Actuator/Cap | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Switch Function | Current Rating (Amps) | Mounting Type | Actuator Marking | Features | Circuit | Voltage Rating - AC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Red | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | O I | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |

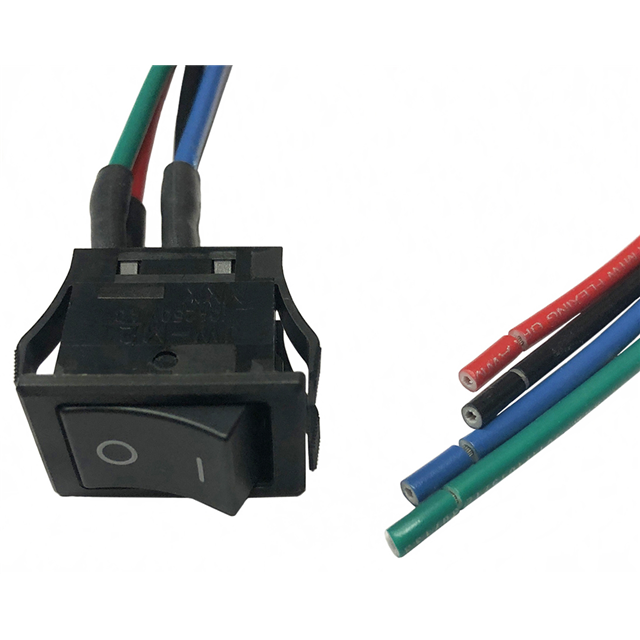

 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Black | 15.4 mm | 24 mm | Wire Leads | On-Off | 10 A | Panel Mount Snap-In | O - | DPST | 125 V | CSA UL VDE | |
 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Black | 15.4 mm | 24 mm | Wire Leads | On-Off | 10 A | Panel Mount Snap-In | O I | DPST | 125 V | CSA UL VDE | |

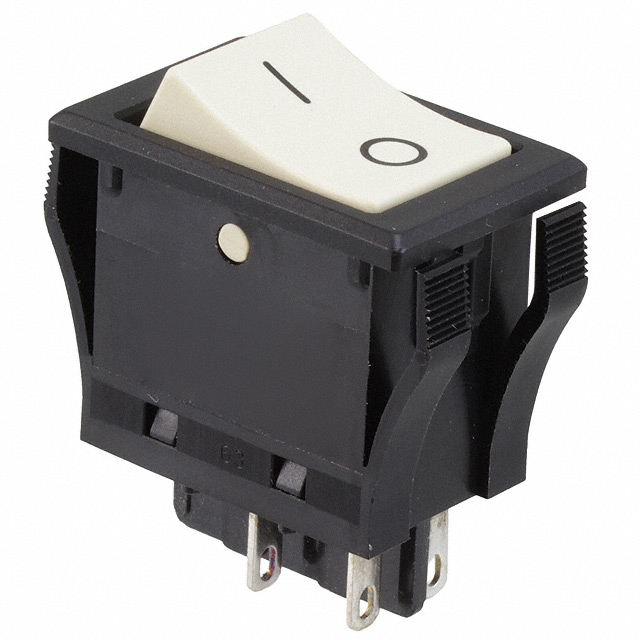

 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Ivory | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | O - | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |
NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Red | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | O I | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |

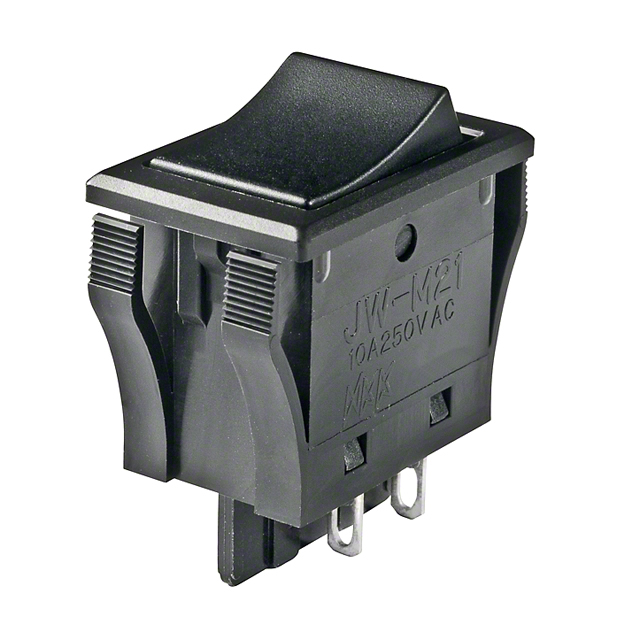

 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Black | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | O I | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |
NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | O I | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE | |
 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Red | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | No Marking | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |
 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Black | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | No Marking | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |
 NKK Switches | 25000 Steps | 25000 Steps | -25 °C | 70 °C | Dust Proof | Concave (Curved) | Black | 15.4 mm | 24 mm | Solder Quick Connect - 0.110" (2.8mm) | On-Off | 10 A | Panel Mount Snap-In | O - | Epoxy Sealed Terminals | DPST | 125 V | CSA UL VDE |
