AWHW2 50 Series

Catalog

CONN HEADER R/A 50POS 2MM

Part	Contact Length - Post [custom]	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Number of Rows [custom]	Contact Material	Shrouding	Insulation Height	Insulation Height	Fastening Type	Termination	Mounting Type	Insulation Color	Contact Type	Features	Current Rating (Amps)	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post

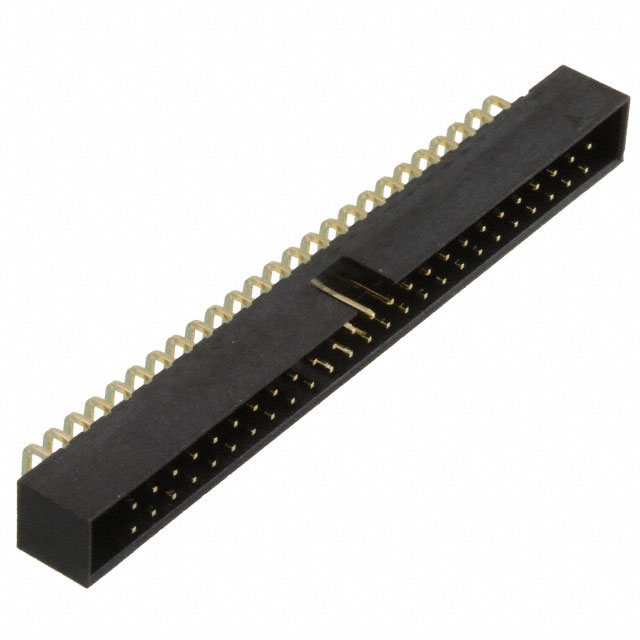

Assmann WSW Components AWHW2 50A-0202	0.11 in	2.79 mm	Gold	All	-40 C	105 ░C	Glass Filled Nylon 9T Polyamide (PA9T)	Square	2	Brass	Shrouded - 4 Wall	0.217 in	5.51 mm	Push-Pull	Solder	Right Angle Through Hole	Black	Male Pin	Keying Slot	1.5 A	UL94 V-0	4 mm	0.157 in	Board to Cable/Wire	0.079 "	2 mm	Flash	2 mm	0.079 in	Header	50

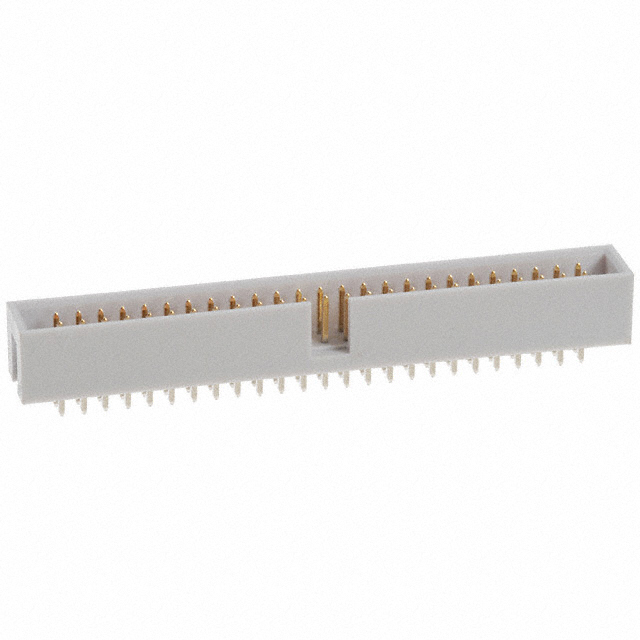

Assmann WSW Components AWHW50G-0202-T-R		3.3 mm	Gold	All	-40 C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	Square	2	Brass	Shrouded - 4 Wall	0.354 in	9 mm	Push-Pull	Solder	Through Hole	Gray	Male Pin	Keying Slot	3 A	UL94 V-0	5.7 mm	0.224 in	Board to Cable/Wire	0.1 "	2.54 mm	Flash			Header	50	Tin	0.1 in	2.54 mm	0.13 "
