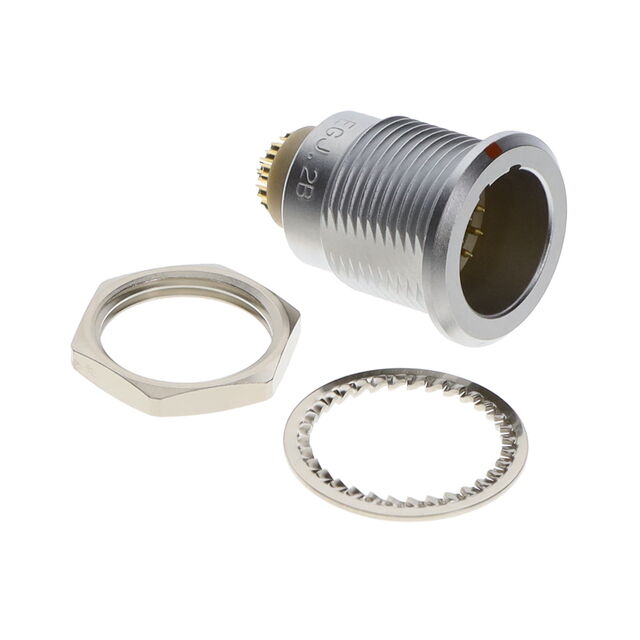

EGJ.2B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT MALE 5P GOLD SLDR CUP
| Part | Primary Material | Connector Type | Contact Finish - Mating | Fastening Type | Insert Material | Orientation | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Mounting Feature | Shell Finish | Color | Current Rating (Amps) | Contact Material | Material Flammability Rating | Shielding | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Type | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 14 A | Brass | UL94 V-0 | Shielded | 305 | -55 °C | 250 °C | ||||
 LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 6.5 A | Brass | UL94 V-0 | Shielded | 314 | -55 °C | 250 °C | 14 | |||
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 7 A | Brass | UL94 V-0 | Shielded | 312 | -55 °C | 250 °C | 12 | |||
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 10 A | Brass | UL94 V-0 | Shielded | 308 | -55 °C | 250 °C | 8 | |||
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 5 A | Brass | UL94 V-0 | Shielded | 319 | -55 °C | 250 °C | 19 | Panel Mount Through Hole | Solder | |
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 25 A | Brass | UL94 V-0 | Shielded | 302 | -55 °C | 250 °C | 2 | Crimp | ||
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 6 A | Brass | UL94 V-0 | Shielded | 316 | -55 °C | 250 °C | 16 | |||
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 5.5 Amps | Brass | UL94 V-0 | Shielded | 318 | -55 °C | 250 °C | 18 | |||
LEMO | Metal | Male Pins Receptacle | Gold | Push-Pull | Polyetheretherketone (PEEK) | J | Brass | 1 µm | 39.4 µin | IP50 | Bulkhead - Rear Side Nut | Chrome | Silver | 8 A | Brass | UL94 V-0 | Shielded | 310 | -55 °C | 250 °C | 10 | Crimp |
