ASDXAVX015 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

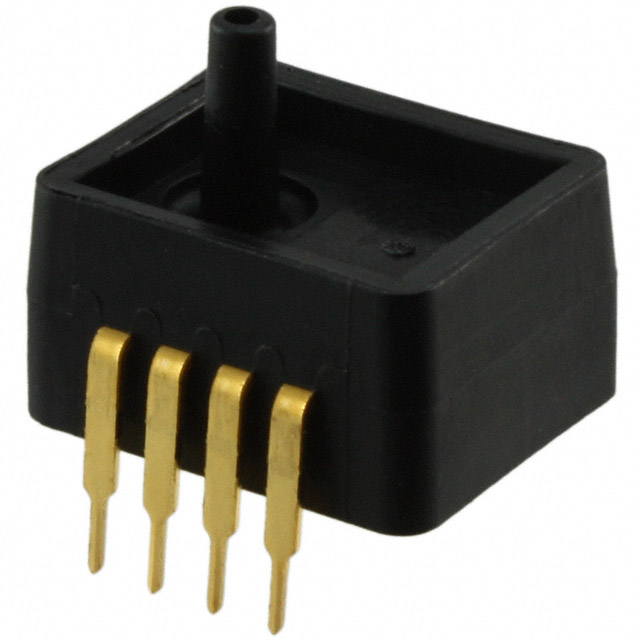

SENSOR 15PSIG 0.09" 4.5V
| Part | Features | Accuracy | Operating Pressure [custom] | Operating Pressure [custom] | Pressure Type | Output [Min] | Output [Max] | Maximum Pressure [Max] | Maximum Pressure [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Port Style | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Port Size | Port Size | Output Type | Termination Style | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Temperature Compensated | 2 % | 15 PSI | 103.42 kPa | Vented Gauge | 0.5 V | 4.5 V | 30 PSI | 206.84 kPa | 4.75 V | 5.25 V | Barbless | 8-DIP Module | -20 C | 105 ░C | Through Hole | 0.09 " 2.31 mm | Male | Analog Voltage | PC Pin | Board Mount |
