fakra-generation-3 Series
Manufacturer: Amphenol RF
Beta
⌘K

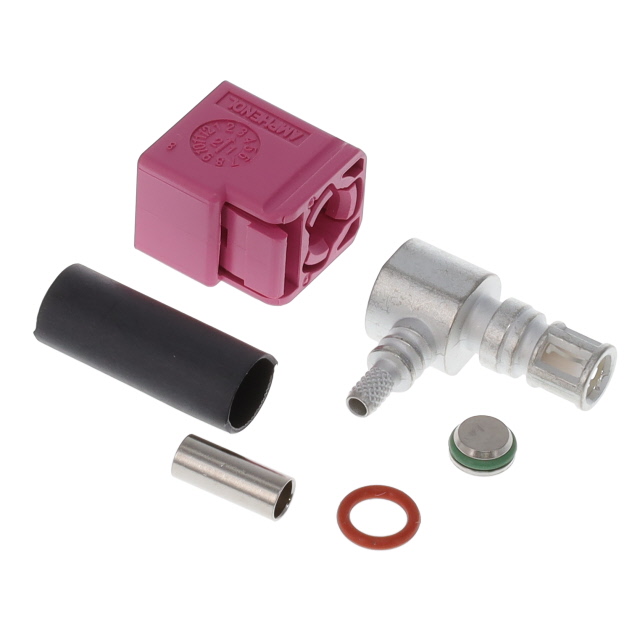

FAKRA GEN 3 RIGHT ANGLE CRIMP JACK RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM LOW PROFILE IP67 H KEY CODE
| Part | Dielectric Material | Connector Style | Body Material | Cable Group | Connector Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Frequency - Max [Max] | Shield Termination | Center Contact Plating | Mounting Type | Fastening Type | Number of Ports | Contact Termination | Housing Color | Features | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | Polytetrafluoroethylene (PTFE) | Fakra SMB | Zinc Die Cast | 188 316 RG-174 | Female Socket Jack | IP67 - Dust Tight Waterproof | 85 °C | -40 °C | Tin | 3 GHz | Crimp | Gold | Free Hanging (In-Line) Right Angle | Latch Lock | 1 | Solder | Heather Violet | Code H | Beryllium Copper | 50 Ohms |
