88778 Series
Manufacturer: Belden Inc.
Beta
⌘K

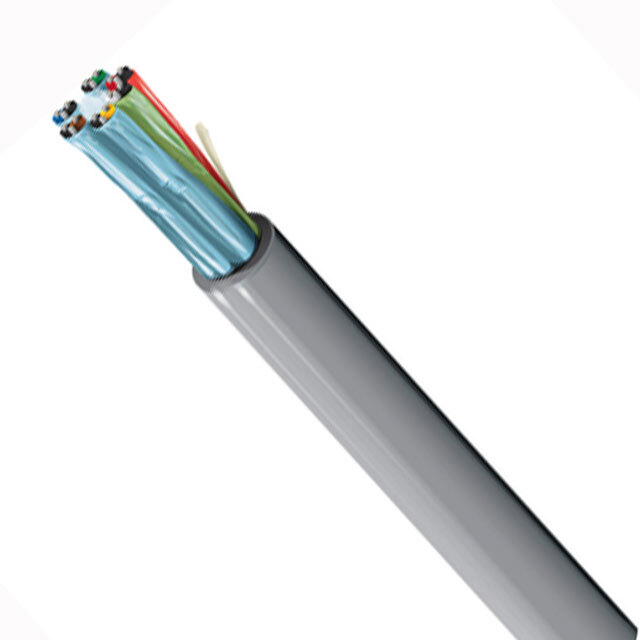

MULTI-PAIR 12COND 22AWG RED
| Part | Shield Material | Shield Coverage | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Shield Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Cable Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Ratings | Length | Length | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 12 | Red | Fluorinated Ethylene-Propylene (FEP) Plenum | Foil | 22 AWG | 7.85 mm | 0.309 in | Drain Wire | Multi-Pair | Fluorinated Ethylene-Propylene (FEP) | -70 °C | 200 °C | 30 AWG | 7 | 100 ft | 30.5 m | Copper Tinned | 0.014 in | 0.356 mm | |||||
 Belden Inc. | Aluminum | 100 % | 12 | Red | Fluorinated Ethylene-Propylene (FEP) Plenum | Foil | 22 AWG | 7.85 mm | 0.309 in | Drain Wire | Multi-Pair | Fluorinated Ethylene-Propylene (FEP) | -70 °C | 200 °C | 30 AWG | 7 | Copper Tinned | 0.014 in | 0.356 mm | 300 VDC | UL Style 2937 | 152.4 m | 500 ft | Audio Control Instrumentation |
