4414 Series

Catalog

FAN AXIAL 119X25.4MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Air Flow	Air Flow	Material - Frame	Bearing Type	Voltage - Rated	Noise	Weight	Weight	Features	Power (Watts)	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	RPM	Width [y]	Fan Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Static Pressure	Static Pressure	Ingress Protection
ebm-papst Inc. 4414F/2L	18 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	80000 Hrs	55 CFM	1.54 mł/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	55 dB(A)	175.09 g	0.386 lb	Speed Sensor (Tach)	1.2 W	Square	119 mm	119 mm	-4 °F	167 °F	3 Wire Leads	1600 RPM	25.4 mm	Tubeaxial
ebm-papst Inc. 4414L	18 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	67500 Hrs	88.4 CFM	2.47 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	42 dB	250.84 g	0.553 lb		2.4 W	Square	119 mm	119 mm	-20 ░C	80 °C	2 Wire Leads	2700 RPM	38 mm	Tubeaxial
ebm-papst Inc. 4414L3	12 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	75500 Hrs	59 CFM 100 CFM	1.65 mł/min 2.8 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	37 dB	273.97 g	0.604 lb			Square	119 mm	119 mm	-20 ░C	80 °C	2 Wire Leads	1800 RPM	38 mm	Tubeaxial

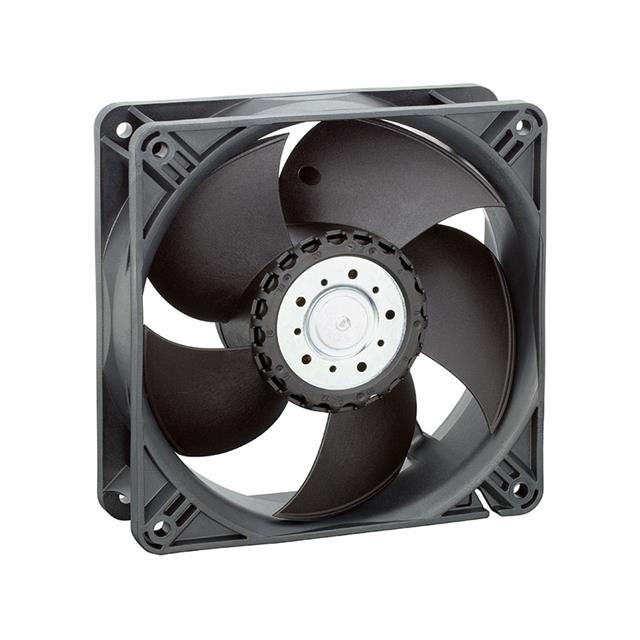

ebm-papst Inc. 4414/2MP	18 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced		108 CFM	3.02 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	26 dB	273.97 g	0.604 lb	Speed Sensor (Tach)	4 W	Square	119 mm	119 mm				3300 RPM	38 mm	Tubeaxial
ebm-papst Inc. 4414FG	12 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 60000 Hrs	100.1 CFM	2.8 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Sintec	24 VDC	50 dB(A)	175.09 g	0.386 lb		5 W	Square	119 mm	119 mm	-20 ░C	60 °C	2 Wire Leads	2900 RPM	25.4 mm	Tubeaxial	CE CSA UL VDE	60 °C	-4 °F
ebm-papst Inc. 4414FNH	18 VDC	26.4 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 60000 Hrs	132.4 CFM	3.71 mł/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	55 dB(A)	239.95 g	0.529 lb		12 W	Square	119 mm	119 mm	-20 ░C	70 °C	2 Wire Leads	5400 RPM	25.4 mm	Tubeaxial
ebm-papst Inc. 4414/2N-522	18 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	62500 Hrs	120.7 CFM	3.38 mł/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	46 dB(A)	286.22 g	0.631 lb	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	5.4 Watts	Square	119 mm	119 mm	-30 ░C	75 ░C	3 Wire Leads	3650 RPM	38 mm	Tubeaxial				0.226 A	117.6 Pa	0.472 in H2O
ebm-papst Inc. 4414FM	12 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	70000 Hrs	82.4 CFM	2.31 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	38 dB(A)	175.09 g	0.386 lb		3.2 W	Square	119 mm	119 mm	-4 °F	167 °F	2 Wire Leads	2400 RPM	25.4 mm	Tubeaxial	CE CSA UL VDE						IP20
ebm-papst Inc. 4414F/2	12 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 60000 Hrs	100.1 CFM	2.8 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	43 dB	175.09 g	0.386 lb	Locked Rotor Protection Speed Sensor (Tach)	5 W	Square	119 mm	119 mm	-20 ░C	60 °C	3 Wire Leads	2900 RPM	25.4 mm	Tubeaxial		60 °C	-4 °F
ebm-papst Inc. 4414FNN	14 VDC	28 V	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 60000 Hrs	117.7 CFM	3.3 m³/min	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Ball	24 VDC	52 dB	239.95 g	0.529 lb		8.5 W	Square	119 mm	119 mm	-20 ░C	70 °C	2 Wire Leads	4850 RPM	25.4 mm	Tubeaxial
