HM2P95 Series

Catalog

CONN HEADER 200POS 2MM PRESS-FIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Mounting Type	Number of Positions	Termination	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Style	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions Loaded
Amphenol ICC (FCI) HM2P95PNF110GF	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm
Amphenol ICC (FCI) HM2P95PK8111GF	-55 C	125 °C	1.5 A	500 V	All	Through Hole		Press-Fit	Header Male Pins	30 Áin	0.76 Ám		DE 25	Gold	0.079 in	2 mm	44	200
Amphenol ICC (FCI) HM2P95PNE170GF	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm
Amphenol ICC (FCI) HM2P95PN8114GFLF	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole		Press-Fit	Header Male Pins				DE 25	Gold	0.079 in	2 mm	44	200
Amphenol ICC (FCI) HM2P95PCG1X0N9	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm
Amphenol ICC (FCI) HM2P95PDG1G0N9	-55 C	125 °C	1.5 A	750 Vrms		Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm			136
Amphenol ICC (FCI) HM2P95PME120GF	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm
Amphenol ICC (FCI) HM2P95PDF1J0N9	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm

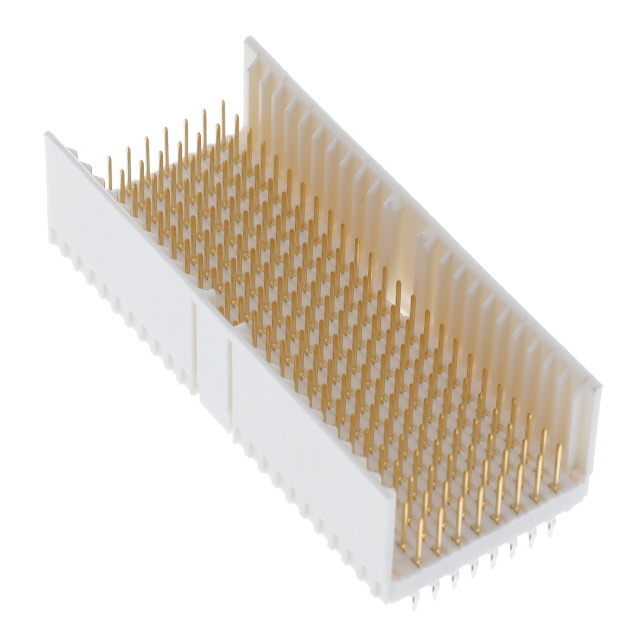

Amphenol ICC (FCI) HM2P95PD8110N9LF	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm
Amphenol ICC (FCI) HM2P95PKJ1F0GFLF	-55 C	125 °C	1.5 A	750 Vrms	All	Through Hole	200	Press-Fit	Header Male Pins	30 Áin	0.76 Ám	8	DE 25	Gold	0.079 in	2 mm
