R11555 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

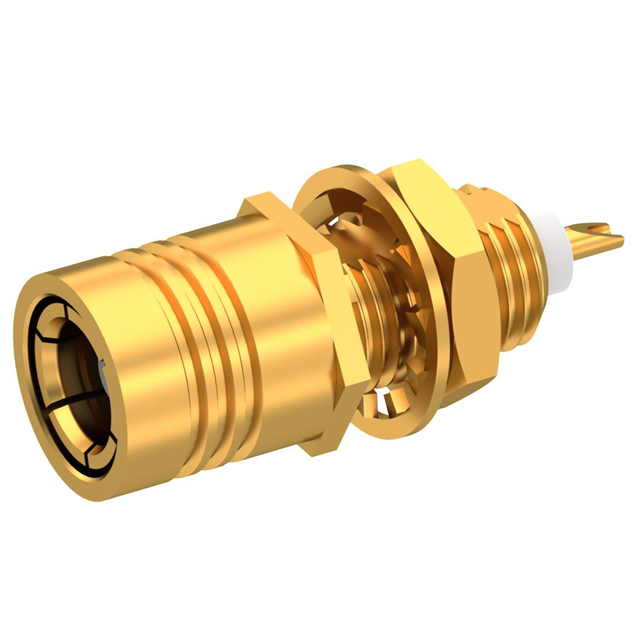

SMB / STRAIGHT BULKHEAD PLUG REC
| Part | Body Material | Dielectric Material | Mating Cycles | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Impedance | Connector Style | Features | Frequency - Max [Max] | Housing Color | Center Contact Material | Connector Type | Fastening Type | Contact Termination | Number of Ports | Mounting Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | 500 | Gold | Gold | -65 ░C | 165 °C | Bulkhead - Rear Side Nut | 50 Ohms | SMB | Extended Insulation | 4 GHz | Gold | Beryllium Copper Bronze | Female Socket Plug | Snap-On | Solder Cup | 1 | Panel Mount | Solder |
