CONN BARRIER STRP 24CIRC 0.325"
| Part | Number of Circuits | Terminal Block Type | Voltage Rating | Current Rating (Amps) | Wire Gauge [Max] | Wire Gauge [Min] | Top Termination | Number of Rows | Pitch | Pitch | Bottom Termination | Barrier Type | Color | Number of Wire Entries | Material - Insulation | Terminal Screw Material | Terminal Screw Finish | Material Flammability Rating | Mounting Type | Operating Temperature | Features | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

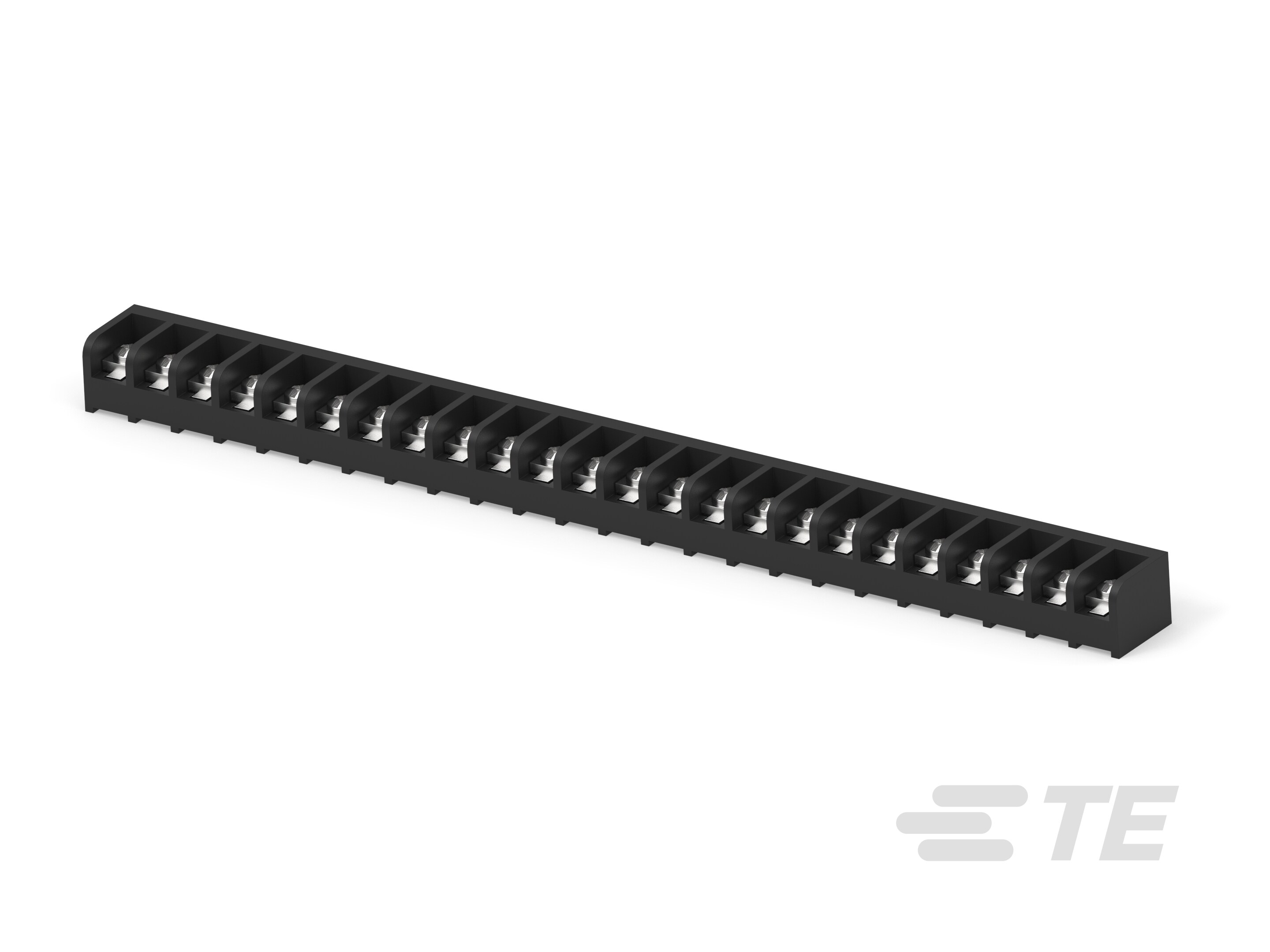

 TE Connectivity AMP Connectors | 24 | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | |||||||||

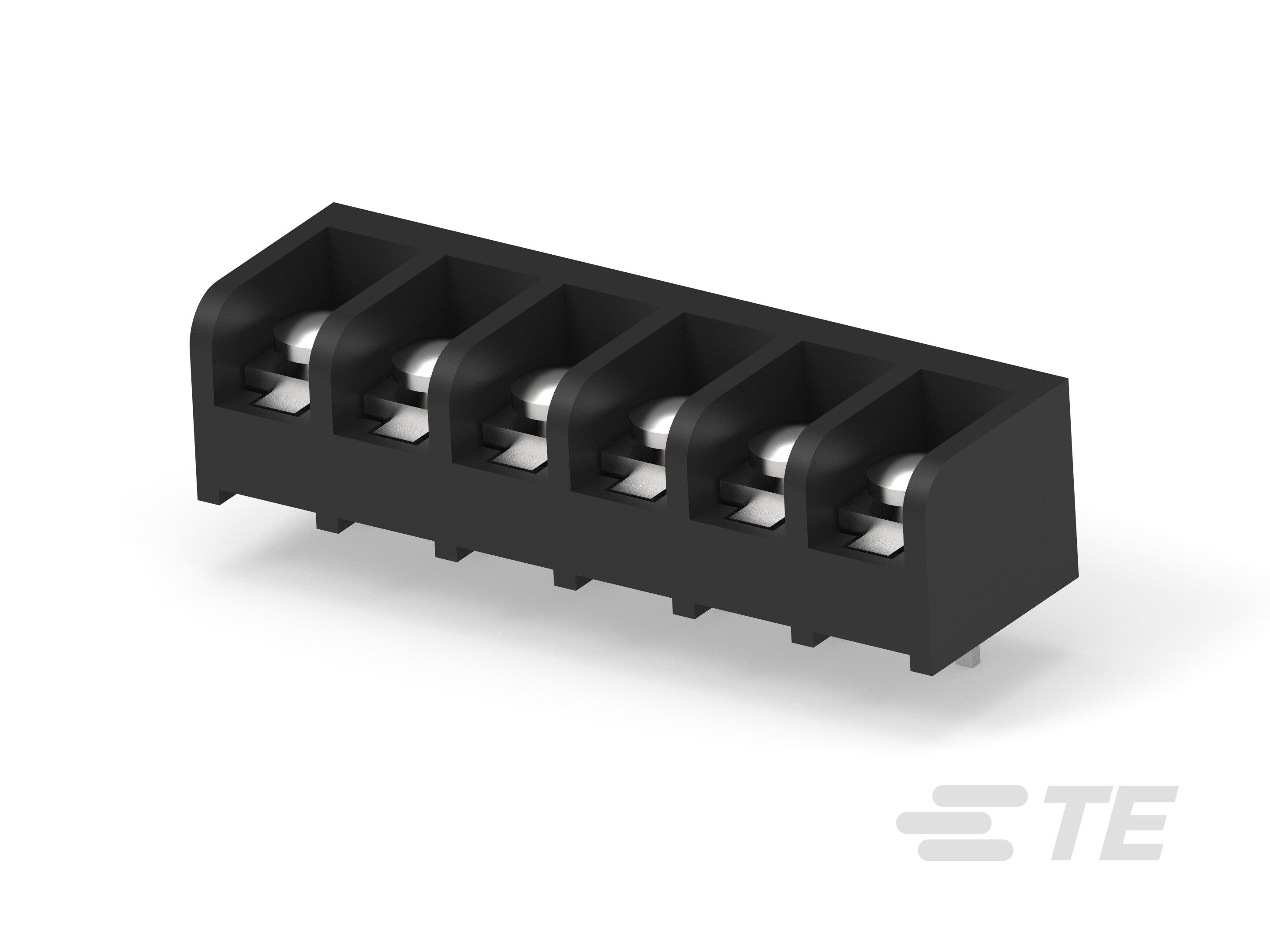

 TE Connectivity AMP Connectors | 6 | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 6 | ||||||||
 TE Connectivity AMP Connectors | 12 | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 12 | Nylon Polyamide (PA) | Steel | Zinc | UL94 V-0 | Through Hole | 105 C | ||

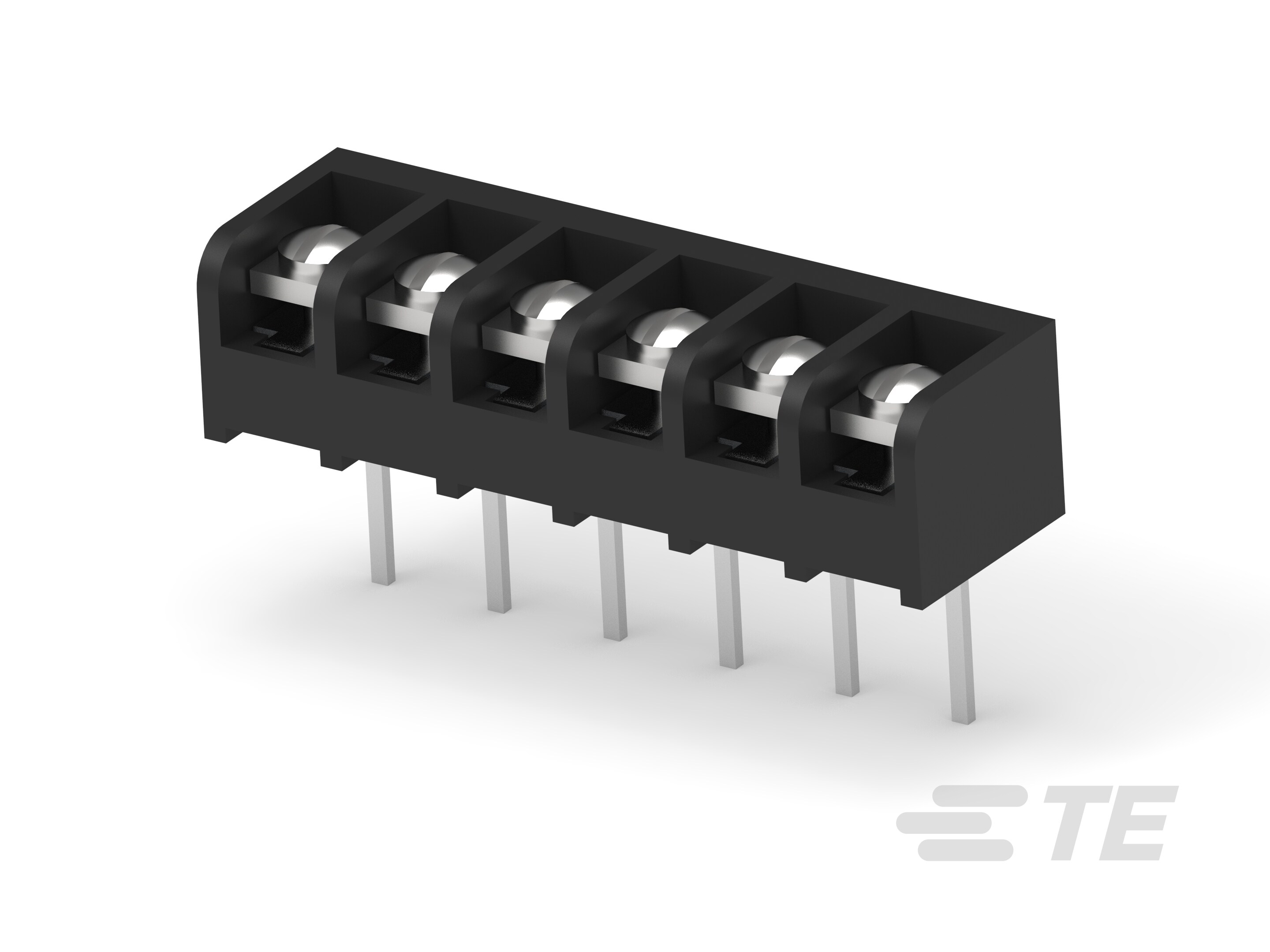

 TE Connectivity AMP Connectors | 6 | Barrier Block | 150 VDC | 20 A | 22 AWG | 14 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | Wire Wrap | 3 Wall (Tri) | Black | 6 | ||||||||

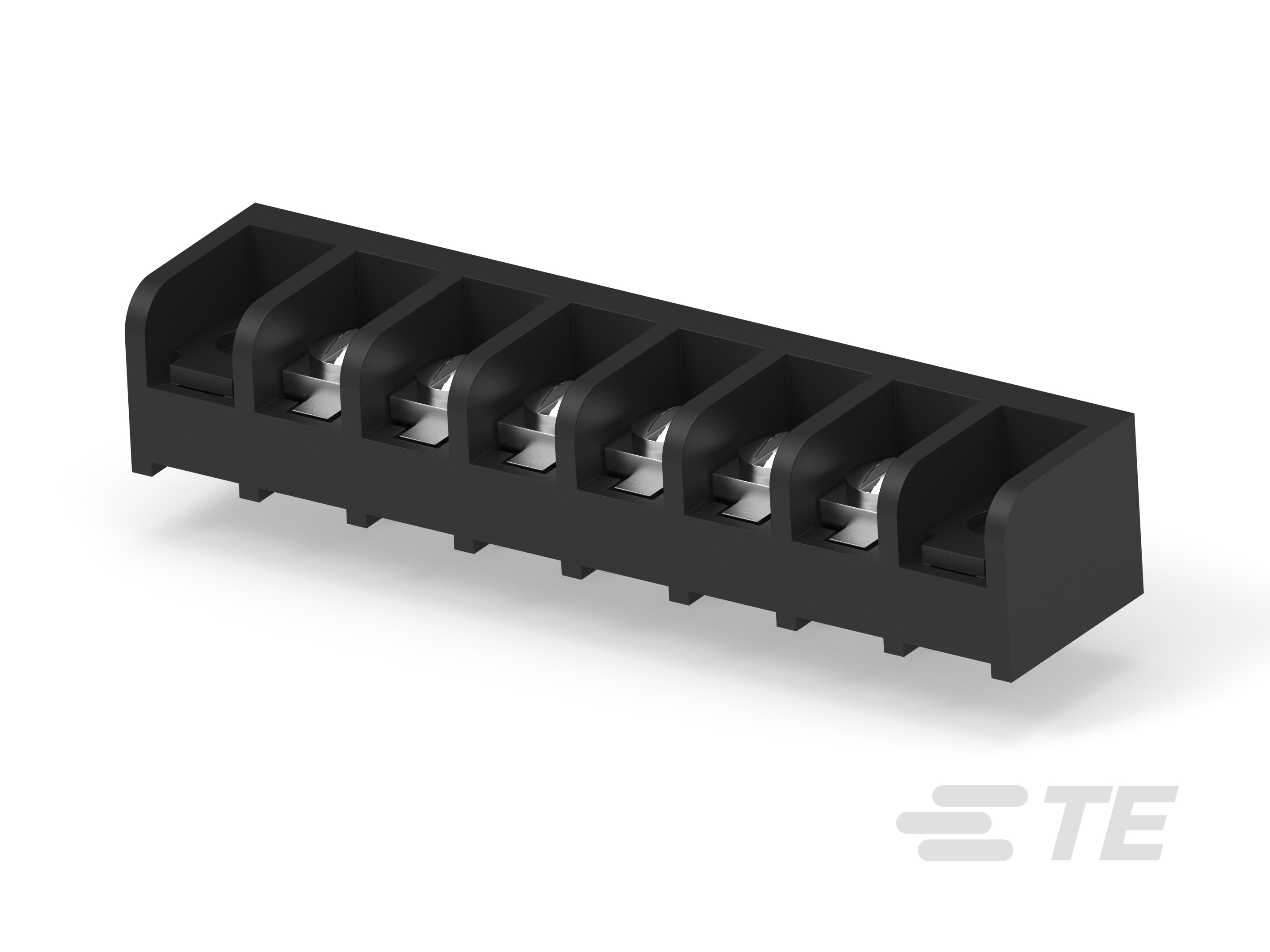

 TE Connectivity AMP Connectors | 6 | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 6 | Flange | |||||||
 TE Connectivity AMP Connectors | 11 | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 11 | Nylon Polyamide (PA) | Steel | Zinc | UL94 V-0 | Through Hole | 105 C | ||

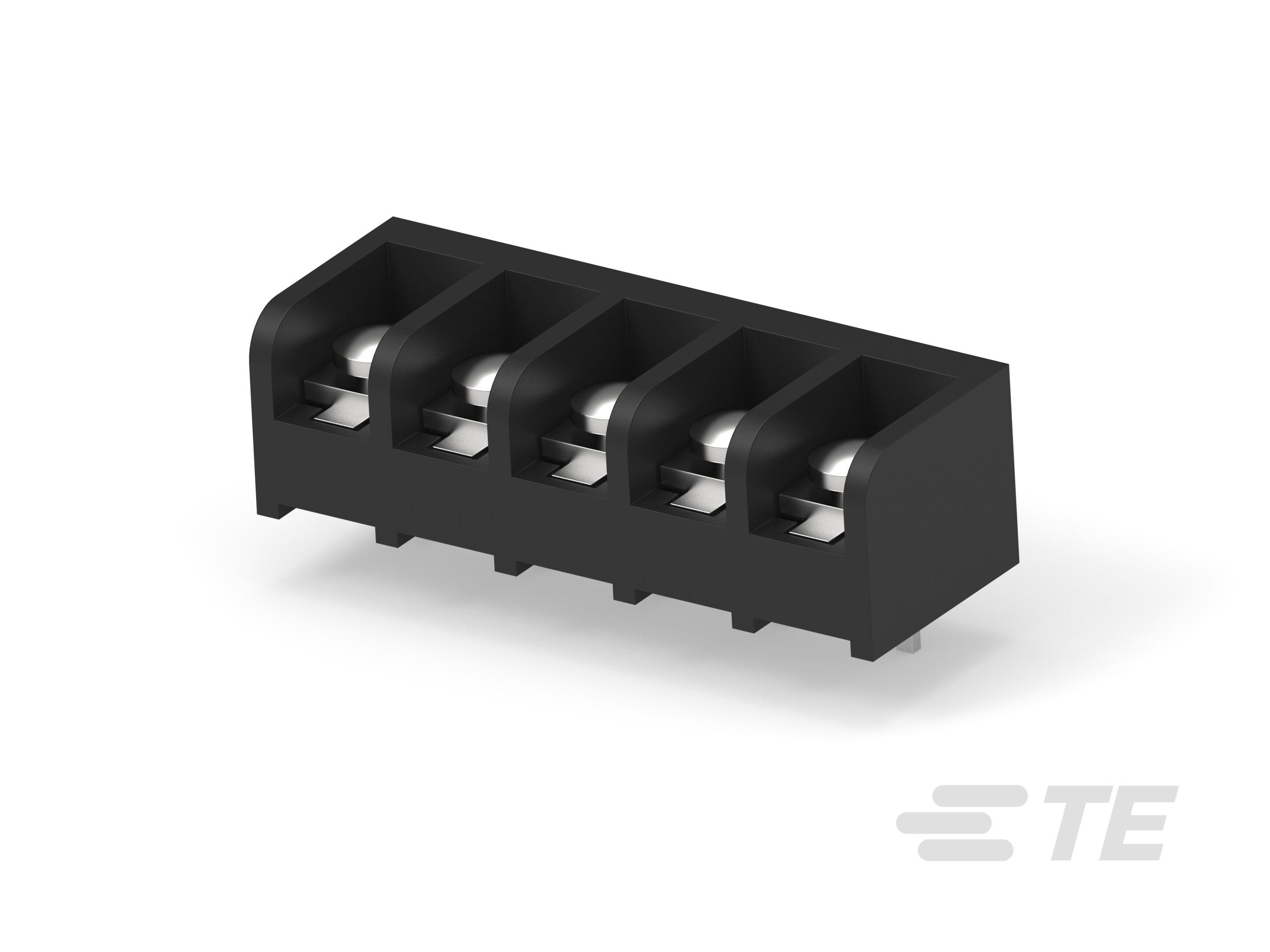

 TE Connectivity AMP Connectors | 5 | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 5 | Nylon Polyamide (PA) | Steel | Zinc | UL94 V-0 | Through Hole | 105 C | ||
 TE Connectivity AMP Connectors | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 9 | 9 | ||||||||
 TE Connectivity AMP Connectors | 4 | Barrier Block | 300 VDC | 15 A | 22 AWG | 14 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 4 | Cover | |||||||

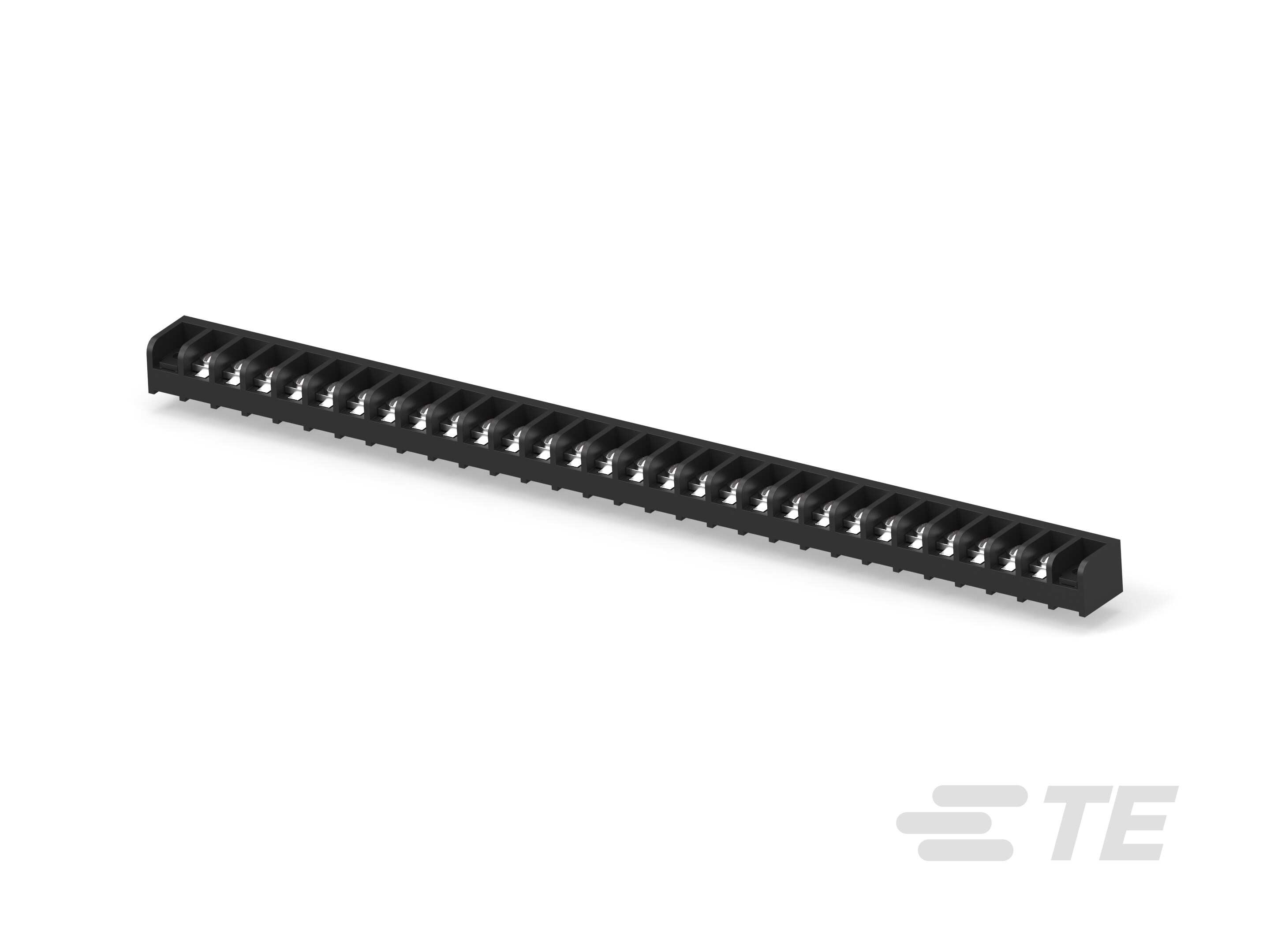

 TE Connectivity AMP Connectors | Barrier Block | 150 VDC | 20 A | 22 AWG | 12 AWG | Screws with Captive Plate | 1 | 0.325 in | 8.26 mm | PC Pin | 3 Wall (Tri) | Black | 28 | Flange | 28 |
