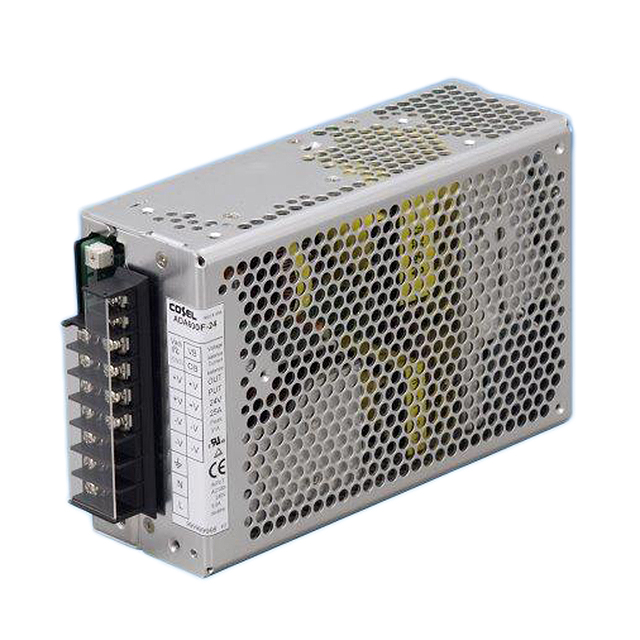

ADA600F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 48V 336W
| Part | Current - Output 1 | Power (Watts) | Power (Watts) | Efficiency | Features | Number of Outputs | Voltage - Isolation | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Standard Number | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Current - Output (Max) [Max] | Voltage - Output 1 [custom] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 7 A | 600 W | 336 W | 89 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 48 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 594 W | 360 W | 87 % | Adjustable Output PFC Universal Input | 1 | 3000 V | ITE (Commercial) | 71 °C | -10 °C | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 60950-1 62368-1 | 264 VAC | 85 VAC | 10 A | 36 V | AC | ||||
Cosel USA, Inc. | 10 A | 594 W | 360 W | 87 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 60950-1 62368-1 | 36 V | |||||
Cosel USA, Inc. | 7 A | 600 W | 336 W | 89 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 48 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 15 A | 600 W | 360 W | 86 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 24 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 15 A | 600 W | 360 W | 86 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 24 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 15 A | 600 W | 360 W | 86 % | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 24 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 15 A | 600 W | 360 W | 86 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 24 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 7 A | 600 W | 336 W | 89 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 48 V | 60950-1 62368-1 | |||||
Cosel USA, Inc. | 12 A | 600 W | 360 W | 87 % | Adjustable Output DC Input Capable PFC Universal Input | 1 | 3000 V | Chassis Mount | ITE (Commercial) | 71 °C | -10 °C | Enclosed | CE CSA cURus TUV UL | 195 mm | 5 in | 5 in | 7.68 in | 2.56 " | 65 mm | 30 V | 60950-1 62368-1 |
