2344656 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

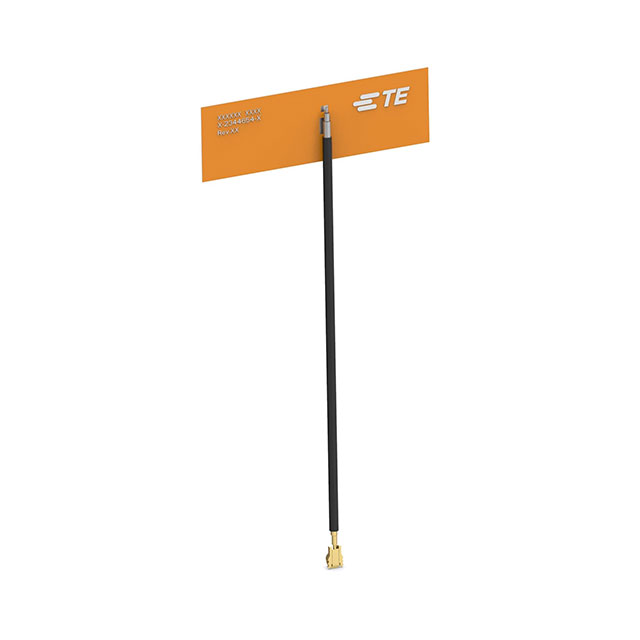

WLAN DUAL BAND ANTENNA FPC V 200
| Part | Mounting Type | Frequency Range [Max] | Frequency Range [Min] | Applications | Frequency (Center/Band) | Frequency Group | Frequency Group [Min] | Frequency Group [Max] | Features | Features | VSWR | Antenna Type | Gain | Number of Bands | Height (Max) | Height (Max) [Max] | RF Family/Standard | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Adhesive | 2.5 GHz 5.875 GHz | 2.4 GHz 5.15 GHz | Bluetooth WLAN Zigbee™ | 2.45 GHz 5.5125 GHz | 4 GHz | 2 GHz | 3 GHz | Cable | 200 mm | 2 | PCB Trace | 2 dBic | 2 | 0.19 mm | 0.007 in | 802.15.4 Bluetooth WiFi | I-PEX MHF1 U.FL (UMCC) |
