896-005 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 5POS 0.125
| Part | Material - Insulation | Termination Rows | Mounting Type | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Contact Finish | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Read Out | Gender | Pitch | Pitch | Card Type | Color | Number of Rows | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

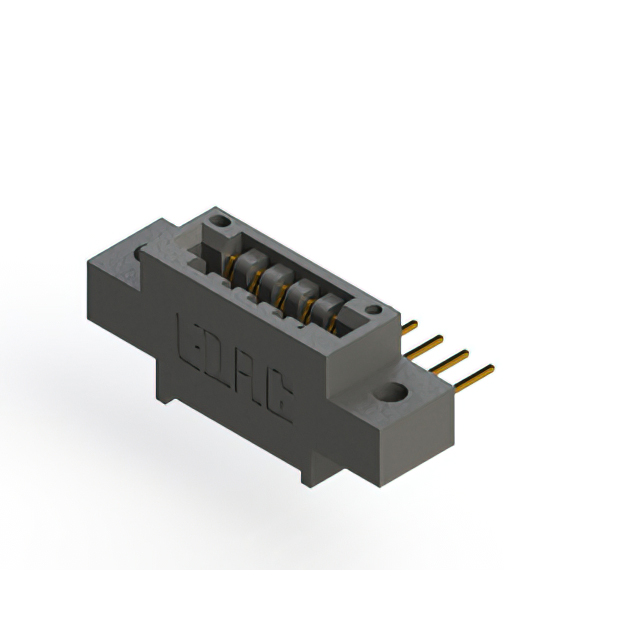

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Right Angle Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | ||

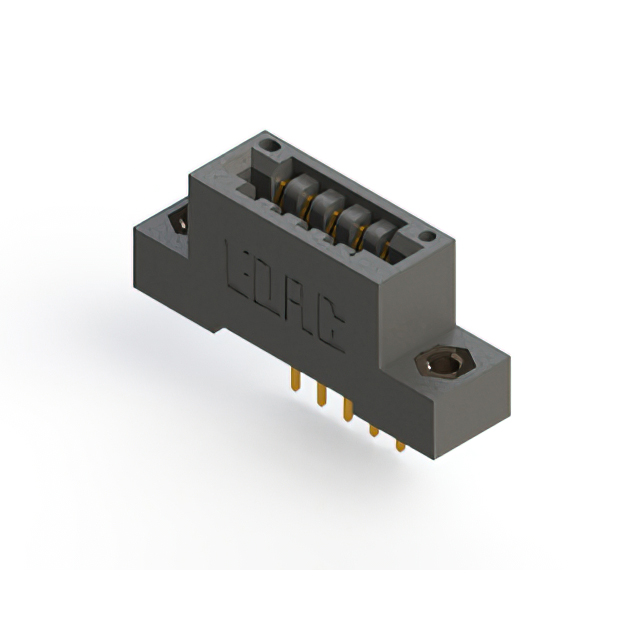

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Floating Bobbin Flush Mount | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | 0.116 " | 2.95 mm |

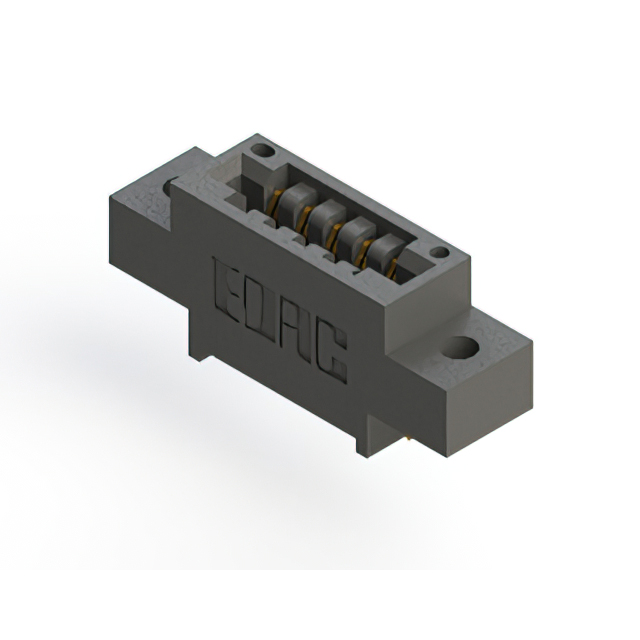

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | |

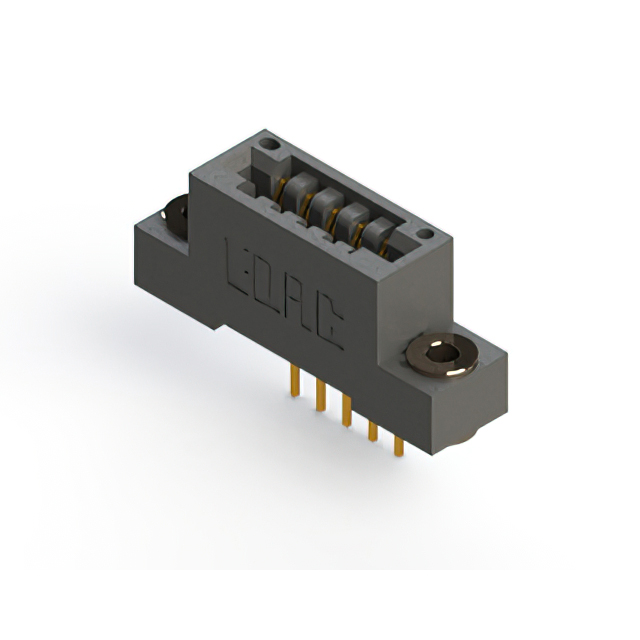

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | ||

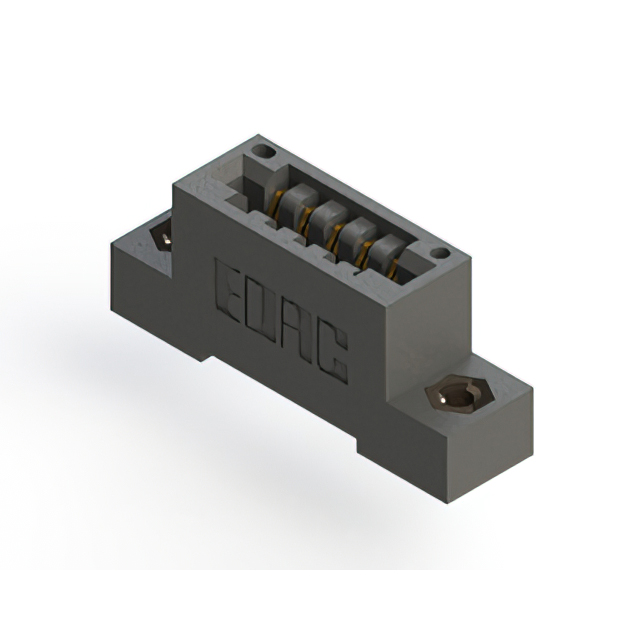

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Right Angle Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | |

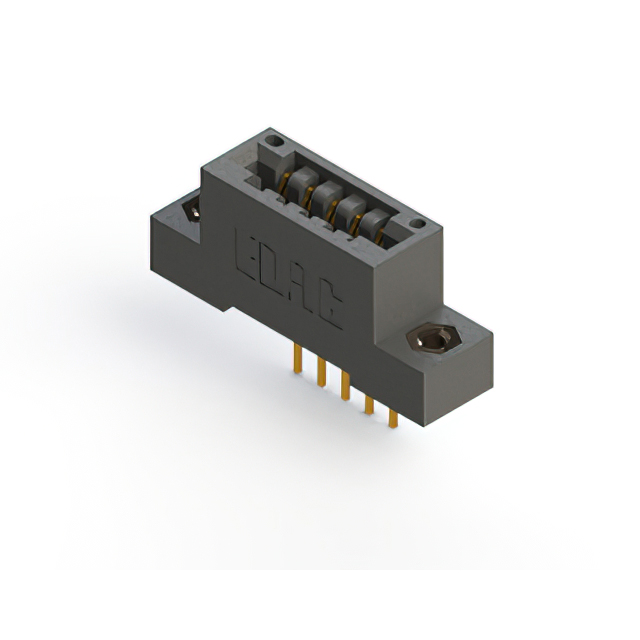

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | ||

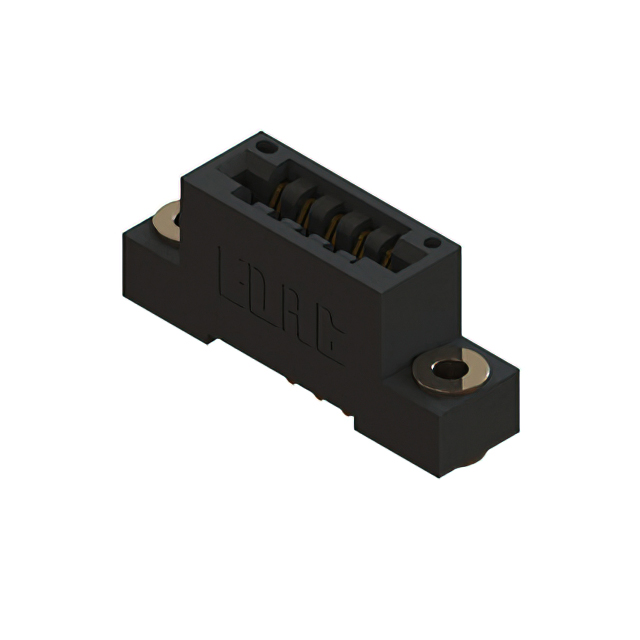

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Floating Bobbin Flush Mount | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | 0.116 " | 2.95 mm |

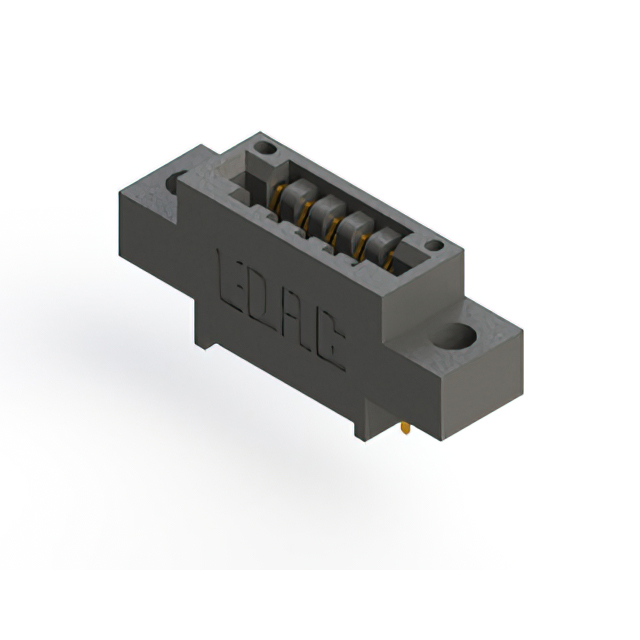

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Right Angle Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | Gold | Cantilever | 0.25 Ám | 10 Áin | 5 | Single | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | Black | 1 | Copper Alloy |
