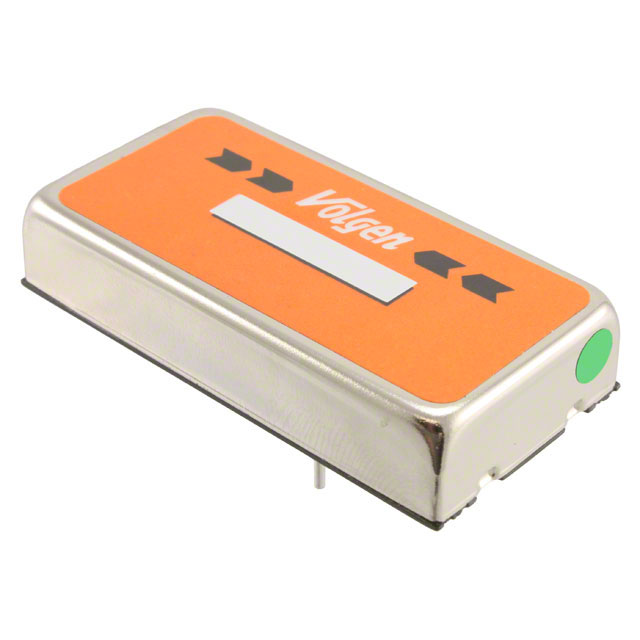

MT10A Series

Catalog

DC DC CONVERTER 15V 10W

Part	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Isolation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Efficiency	Size / Dimension	Voltage - Input (Max) [Max]	Package / Case	Power (Watts)
Volgen + Furuno MT10A-2415SI-W	Through Hole	670 mA	9 V	15 V	1.5 kV	Isolated Module	85 °C	-40 C	ITE (Commercial)	1	81 %	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	6-DIP Module	10 W
Volgen + Furuno MT10A-4815SI-W	Through Hole	670 mA	18 V	15 V	1.5 kV	Isolated Module	85 °C	-40 C	ITE (Commercial)	1	84 %	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	6-DIP Module	10 W
Volgen + Furuno MT10A-2405SI-W	Through Hole	2 A	9 V	5 V	1.6 kV	Isolated Module	85 °C	-40 C	ITE (Commercial)	1	80 %	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	6-DIP Module	10 W
Volgen + Furuno MT10A-4805SI-W	Through Hole	2 A	18 V	5 V	1.5 kV	Isolated Module	85 °C	-40 C	ITE (Commercial)	1	81 %	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	6-DIP Module	10 W
Volgen + Furuno MT10A-2412SI-W	Through Hole	830 mA	9 V	12 V	1.5 kV	Isolated Module	85 °C	-40 C	ITE (Commercial)	1	84 %	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	6-DIP Module	10 W
