ATS-06A Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 36.83X57.6X11.43MM T766

...

Part	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Length	Length	Material	Material Finish	Package Cooled	Shape [custom]	Shape [custom]	Width [y]	Width [y]	Type	Width [x]	Width [x]	Shape	Fin Height	Fin Height	Length [x]	Fin Height [custom]	Fin Height [custom]	Length [x]	Width	Width
Advanced Thermal Solutions Inc. ATS-06A-36-C2-R0	Push Pin	14.82 °C/W	11.43 mm	0.45 "	1.45 "	36.83 mm	Aluminum	Blue Anodized	ASIC BGA CPU LGA	Rectangular	Fins	57.6 mm	2.267 in	Top Mount
Advanced Thermal Solutions Inc. ATS-06A-170-C3-R0	Push Pin	10.26 °C/W	15 mm	0.59 in	1.181 in	0.03 m	Aluminum	Blue Anodized	ASIC BGA CPU LGA					Top Mount	30 mm	1.181 in	Fins Square

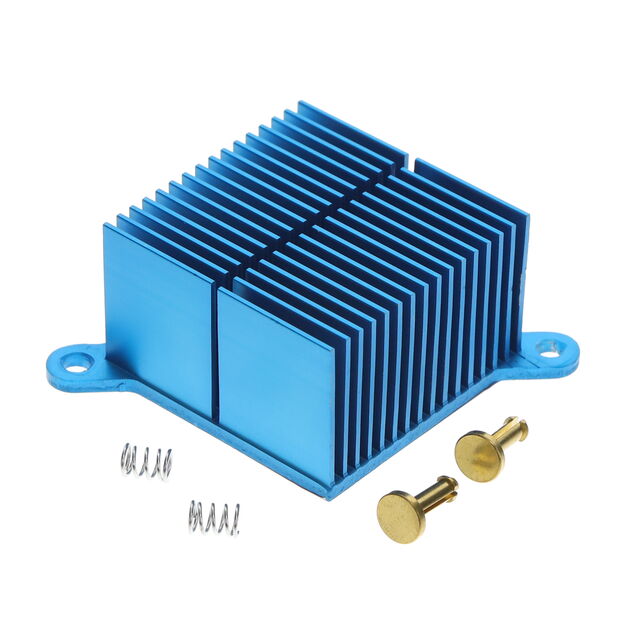

Advanced Thermal Solutions Inc. ATS-06A-64-C2-R0	Push Pin	9.39 °C/W					Aluminum	Blue Anodized	ASIC BGA CPU LGA			40 mm	1.575 in	Top Mount			Fins Square	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-06A-175-C2-R0	Push Pin	13.52 °C/W				35 mm	Aluminum	Blue Anodized	ASIC BGA CPU LGA			35 mm	1.378 "	Top Mount			Fins Square			1.378 "	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-06A-169-C2-R0	Push Pin	15.71 °C/W			1.181 in	0.03 m	Aluminum	Blue Anodized	ASIC BGA CPU LGA					Top Mount	30 mm	1.181 in	Fins Square				0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-06A-151-C1-R0	Push Pin		30 mm	1.181 in		35 mm	Aluminum	Blue Anodized	ASIC BGA CPU LGA			35 mm	1.378 "	Top Mount			Fins Square			1.378 "
Advanced Thermal Solutions Inc. ATS-06A-13-C3-R0	Push Pin	13.78 °C/W	15 mm	0.59 in			Aluminum	Blue Anodized	ASIC BGA CPU LGA					Top Mount	50 mm	1.969 in	Fins Square			1.969 in			50 mm
Advanced Thermal Solutions Inc. ATS-06A-08-C2-R0	Push Pin	14.61 °C/W	15 mm	0.59 in			Aluminum	Blue Anodized	ASIC BGA CPU LGA					Top Mount			Fins Square			1.772 in			45 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-06A-48-C3-R0	Push Pin	7.78 °C/W				25 mm	Aluminum	Blue Anodized	ASIC BGA CPU LGA					Top Mount	25 mm	0.984 "	Fins Square			0.984 in	1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-06A-168-C1-R0	Push Pin	6.94 °C/W				25 mm	Aluminum	Blue Anodized	ASIC BGA CPU LGA					Top Mount	25 mm	0.984 "	Fins Square	25 mm	0.984 in	0.984 in
