DKLP Series

Catalog

CMC 16A 3LN TH

Part	DC Resistance (DCR) (Max) [Max]	Number of Lines	Mounting Type	Package / Case	Current Rating (Max) [Max]	Voltage Rating - DC	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max)

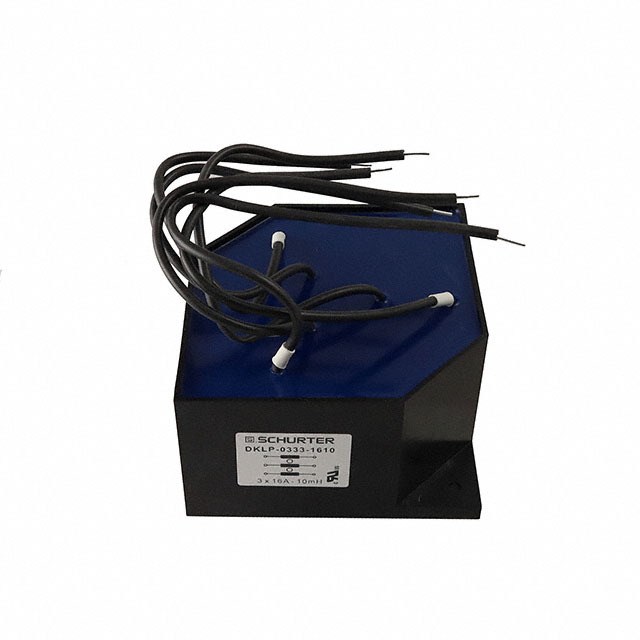

SCHURTER Inc. DKLP-0333-1610	30 mOhm	3	Through Hole	Nonstandard	16 A	760 V	540 V	4.724 " 120 mm	4.724 in 120 mm	100 °C	-25 °C

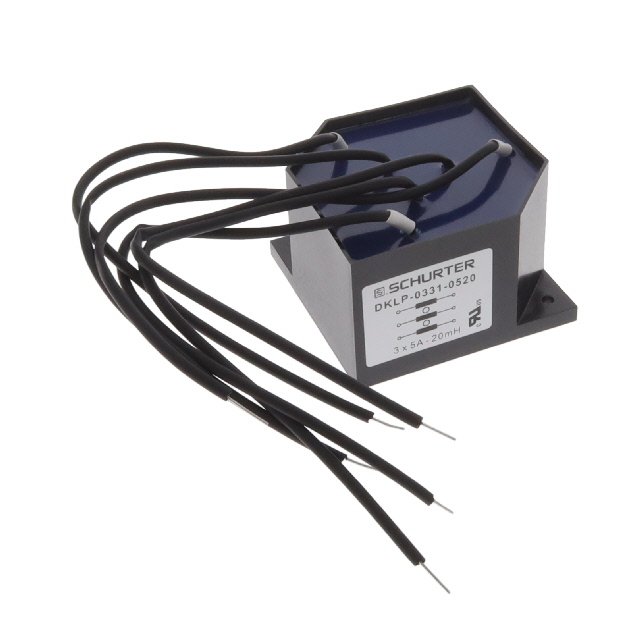

SCHURTER Inc. DKLP-0331-0520	100 mOhm	3	Through Hole	Nonstandard	5 A	760 V	540 V	80 mm	80 mm	100 °C	-25 °C	3.15 "	3.15 in

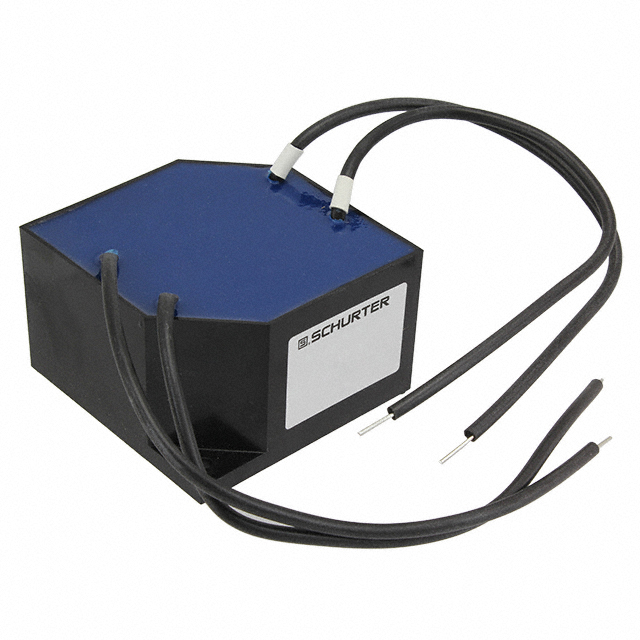

SCHURTER Inc. DKLP-0231-0720	62 mOhm	2	Chassis Mount	Nonstandard	7 A	760 V	540 V	80 mm	80 mm	100 °C	-25 °C	3.15 "	3.15 in

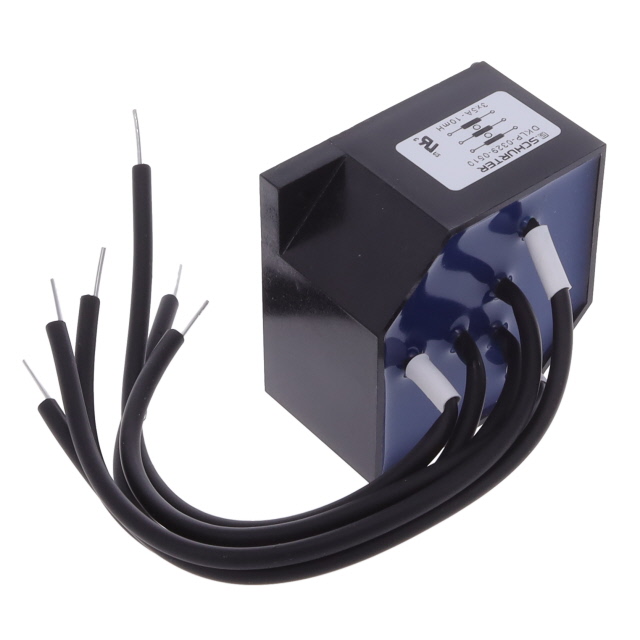

SCHURTER Inc. DKLP-0329-0510		3	Through Hole	Nonstandard	5 A	760 V	540 V	48 mm	48 mm	100 °C	-25 °C	1.89 in	1.89 in

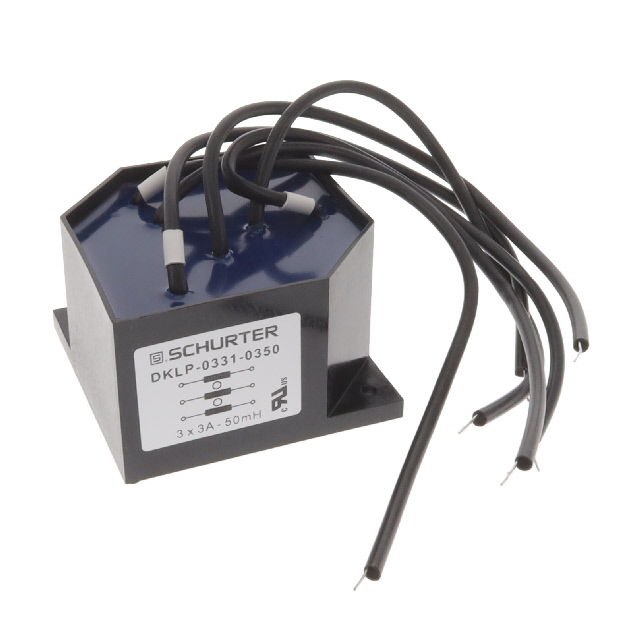

SCHURTER Inc. DKLP-0331-0350	260 mOhm	3	Through Hole	Nonstandard	3 A	760 V	540 V	80 mm	80 mm	100 °C	-25 °C	3.15 "	3.15 in

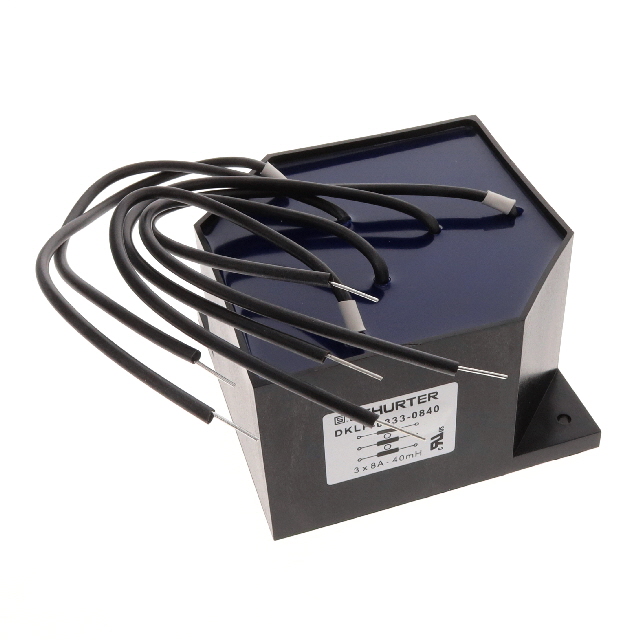

SCHURTER Inc. DKLP-0333-0840		3	Through Hole	Nonstandard	8 A	760 V	540 V	4.724 " 120 mm	4.724 in 120 mm	100 °C	-25 °C			110 mOhm

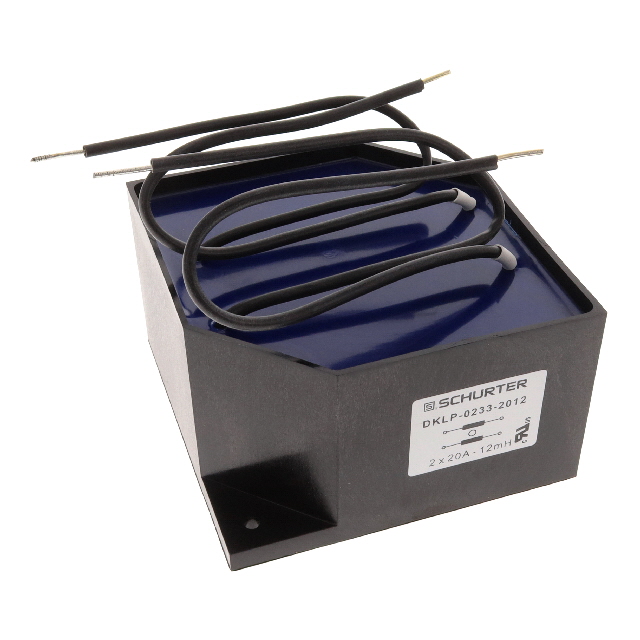

SCHURTER Inc. DKLP-0233-2012	19 mOhm	2	Through Hole	Nonstandard	20 A	760 V	540 V	4.724 " 120 mm	4.724 in 120 mm	100 °C	-25 °C

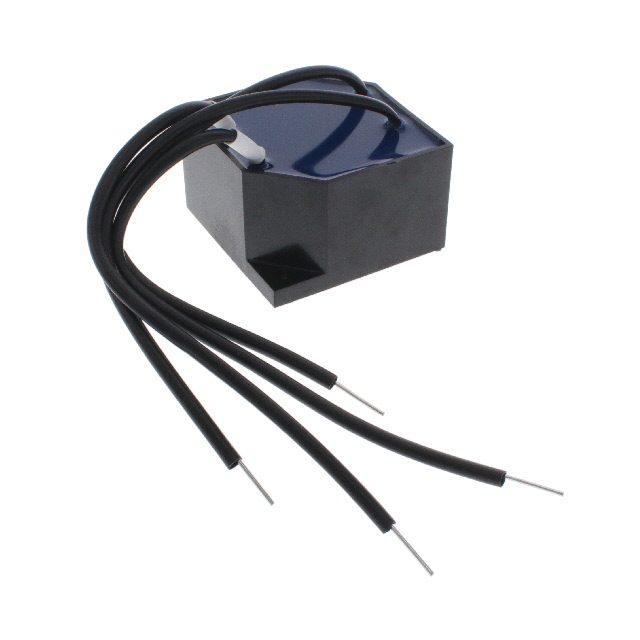

SCHURTER Inc. DKLP-0229-0614	46 mOhm	2	Through Hole	Nonstandard	6 A	760 V	540 V	48 mm	48 mm	100 °C	-25 °C	1.89 in	1.89 in
SCHURTER Inc. DKLP-0231-0540	126 mOhm	2	Through Hole	Nonstandard	5 A	760 V	540 V	80 mm	80 mm	100 °C	-25 °C	3.15 "	3.15 in

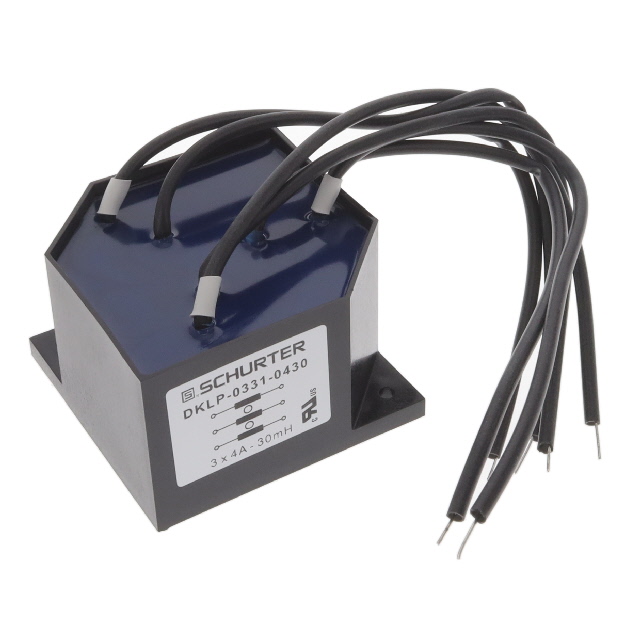

SCHURTER Inc. DKLP-0331-0430	155 mOhm	3	Through Hole	Nonstandard	4 A	760 V	540 V	80 mm	80 mm	100 °C	-25 °C	3.15 "	3.15 in
