M22-204 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,32 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL ROHS COMPLIANT: YES

Part	Shrouding	Number of Rows [custom]	Contact Type	Termination	Current Rating (Amps)	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Fastening Type	Mounting Type	Connector Type	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish - Post
Harwin Inc. M22-2041605	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in	Gold	Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm

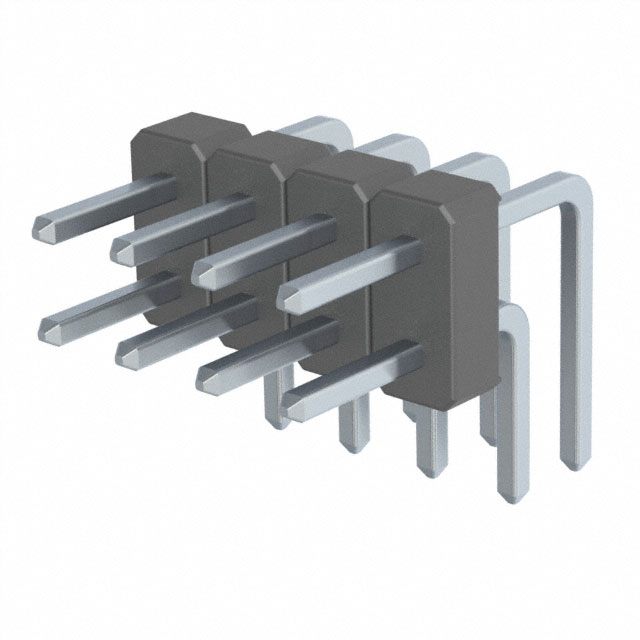

Harwin Inc. M22-2040446	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in		Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	8	Tin

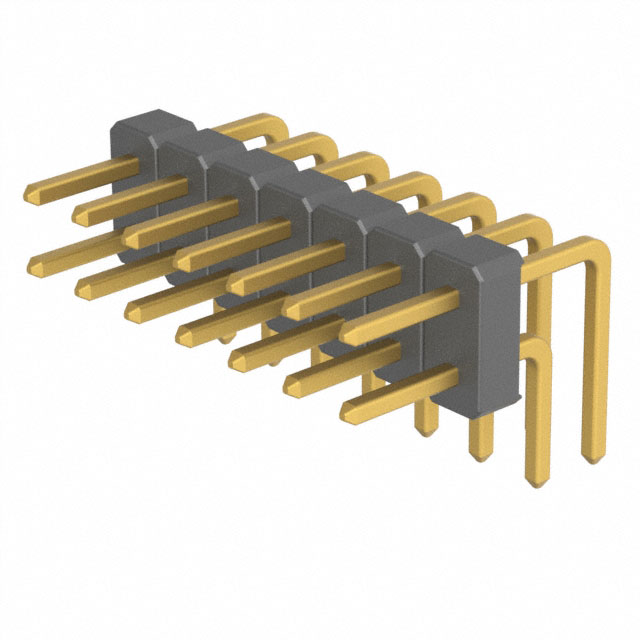

Harwin Inc. M22-2040705	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in	Gold	Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	14

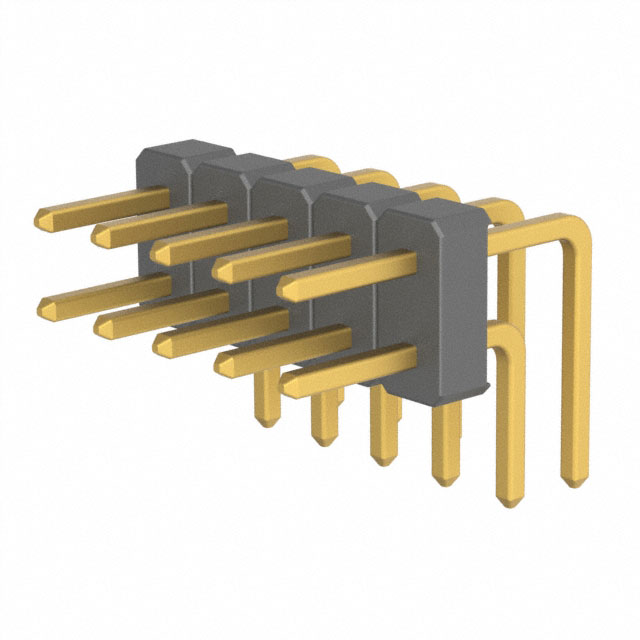

Harwin Inc. M22-2040505	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in	Gold	Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	10

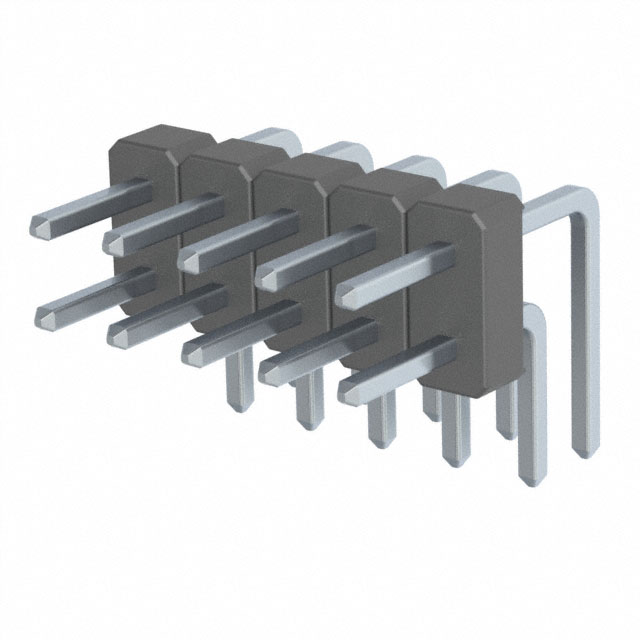

Harwin Inc. M22-2040546	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in		Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	10	Tin
Harwin Inc. M22-2042005	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in	Gold	Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	40

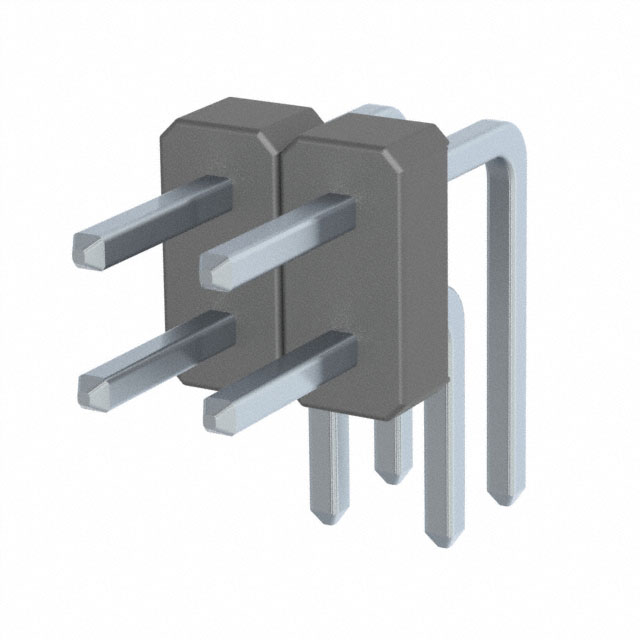

Harwin Inc. M22-2040246	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in		Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	4	Tin
Harwin Inc. M22-2040205	Unshrouded	2	Male Pin	Solder	1 A	Phosphor Bronze	Black	0.079 "	2 mm	UL94 V-0	All	4 mm	0.157 in	Gold	Push-Pull	Right Angle Through Hole	Header Cuttable	Square	Nylon 6T Polyamide (PA6T)	-40 C	105 ░C	3.5 mm	0.138 in	2 mm	0.079 in	0.118 in	3 mm	4
