072 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 6.88"L X 4.88"W

Part	Design	Weight [custom]	Weight [custom]	Area (L x W)	Area (L x W)	Material Flammability Rating	Color	Container Type	Ratings	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Features	Height	Height

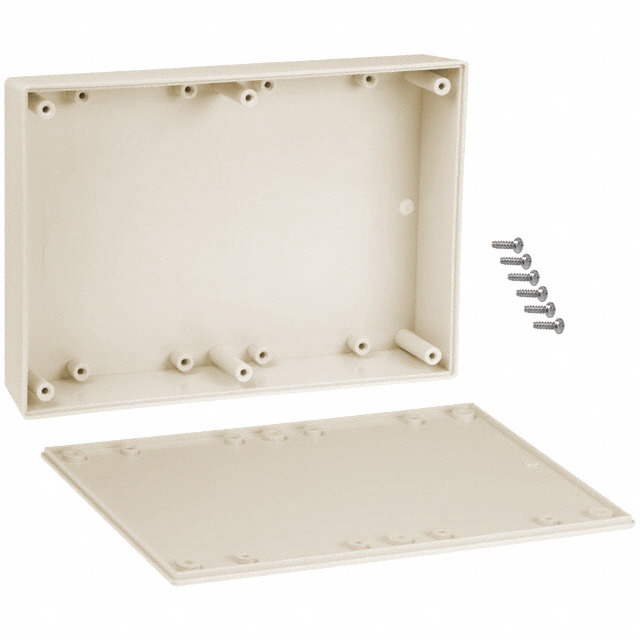

Serpac 072,AL	Cover Included Hand Held	0.37 lb	167.83 g	33.6 in²	217 cm²	UL94 HB	Almond	Box	IP40 NEMA 1	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	ABS Plastic	PCB Supports	1.4 in	35.56 mm

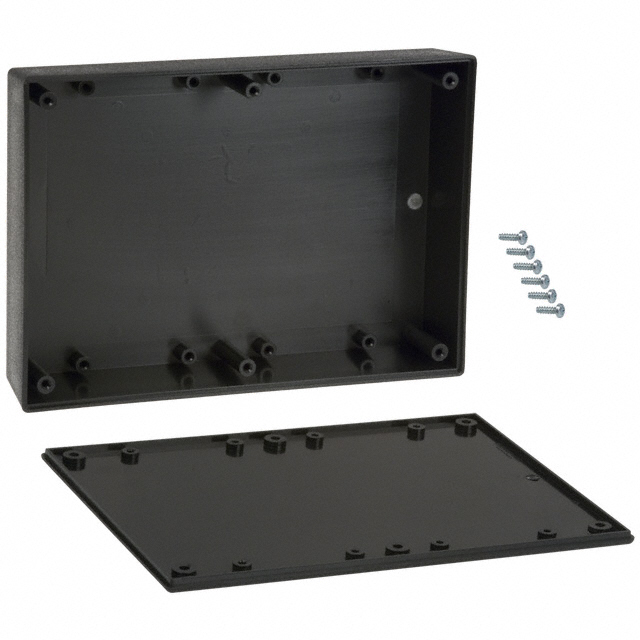

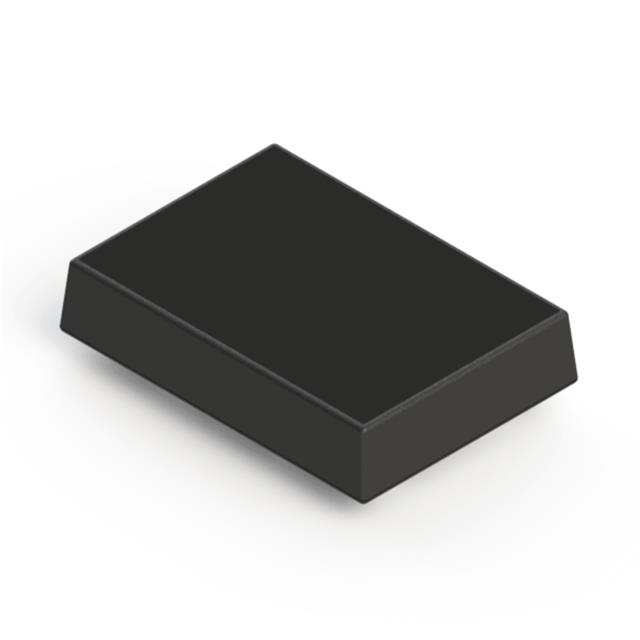

Serpac 072,BK	Cover Included Hand Held	0.37 lb	167.83 g	33.6 in²	217 cm²	UL94 HB	Black	Box	IP40 NEMA 1	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	ABS Plastic	PCB Supports	1.4 in	35.56 mm

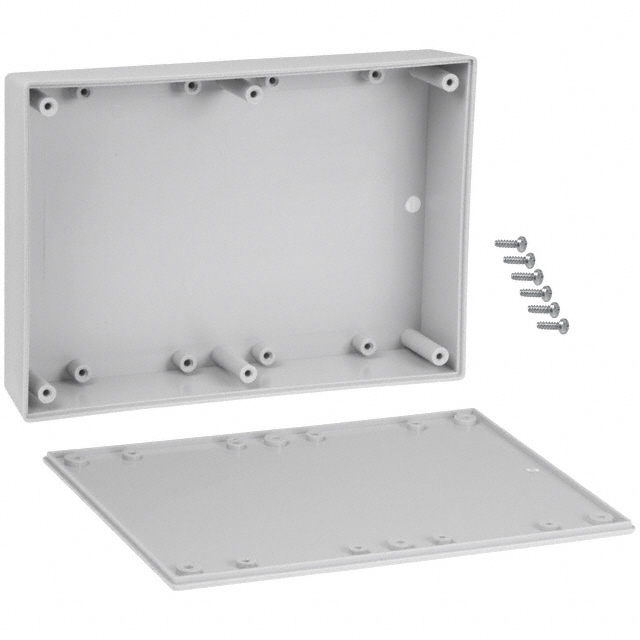

Serpac 072,GY	Cover Included Hand Held	0.37 lb	167.83 g	33.6 in²	217 cm²	UL94 HB	Gray	Box	IP40 NEMA 1	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	ABS Plastic	PCB Supports	1.4 in	35.56 mm
