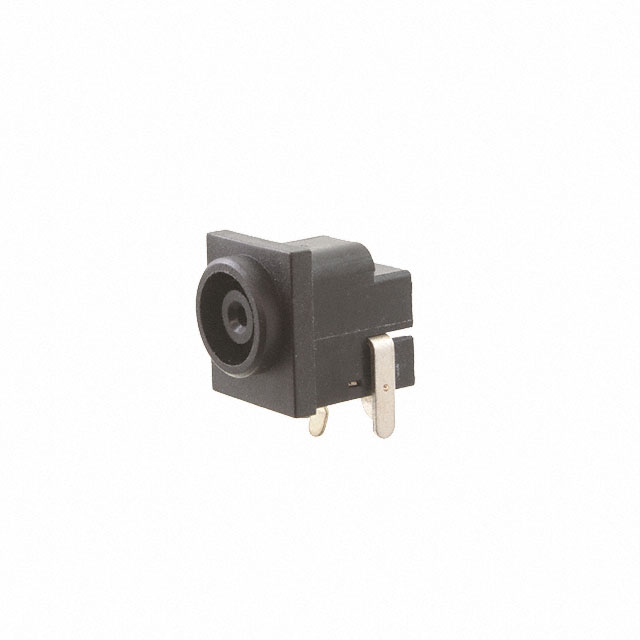

ADC-039 Series
Manufacturer: Adam Tech
Beta
⌘K
DC POWER JACK
| Part | Body Color | Contact Material - Plating | Contact Material | Termination | Features | Shielding | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Gender | Material Flammability Rating | Mounting Type | Internal Switch(s) | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Connector Type | Insulation Color | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter | Actual Diameter [diameter] | Actual Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Black | Silver | Copper Alloy | Kinked Pin | Board Guide | Unshielded | 30 V | -20 ░C | 70 °C | 2 A | Female | UL94 V-0 | Right Angle Through Hole | Single Switch Normally Closed | 2 | 3 | Jack | Black | 1.4 mm 4.3 mm 6.5 mm | 0.055 in 0.169 " 0.256 " | EIAJ-5 | 0.057 in 0.154 in | 1.45 mm 3.9 mm |
