15DYS830 Series
Manufacturer: Ideal Power Ltd.
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 30V 30W
| Part | Power (Watts) | Voltage - Output | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Approval Agency | Standard Number | Efficiency | Input Type | Region Utilized | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Form | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Weight | Weight | Output Connector [custom] | Output Connector [custom] | Output Connector | Output Connector [x] | Cord Length | Cord Length | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ideal Power Ltd. | 30 Watts | 30 V | 1 A | 3.02 " | 1.89 in | 48 mm | 76.8 mm | 1.22 in | 31 mm | CE TUV | 62368-1 | Level VI | Fixed Blade | Europe | ITE (Commercial) | 40 °C | 0 °C | Wall Mount | 264 VAC | 90 VAC | CEE 7/16 | |||||||||

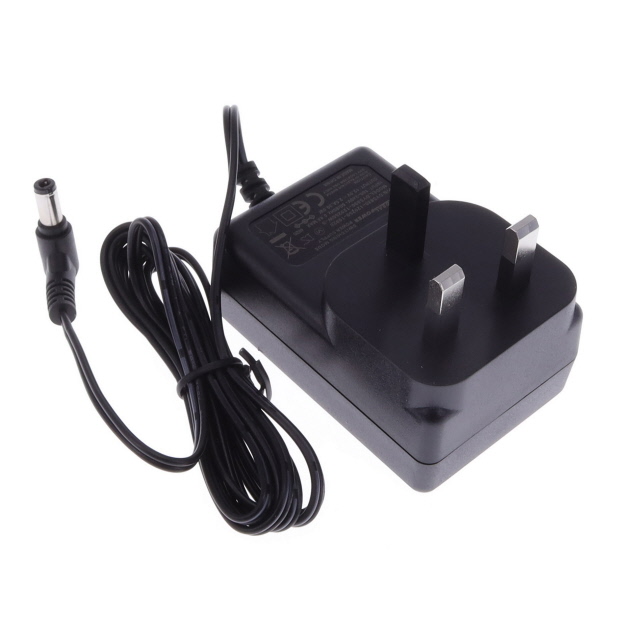

 Ideal Power Ltd. | 30 Watts | 12 V | 2.5 A | 3.02 " | 1.96 " | 50 mm | 76.8 mm | 1.22 in | 31 mm | CE | 62368-1 | Level VI | Fixed Blade | United Kingdom | ITE (Commercial) | 40 °C | 0 °C | Wall Mount (Class I) | 264 VAC | 90 VAC | BS 1363 | |||||||||
Ideal Power Ltd. | 20 W | 5 V | 4 A | 3.02 " | 1.89 in | 48 mm | 76.8 mm | 1.22 in | 31 mm | CE TUV | 62368-1 | Level VI | Fixed Blade | Europe | ITE (Commercial) | 40 °C | 0 °C | Wall Mount | 264 VAC | 90 VAC | CEE 7/16 | |||||||||

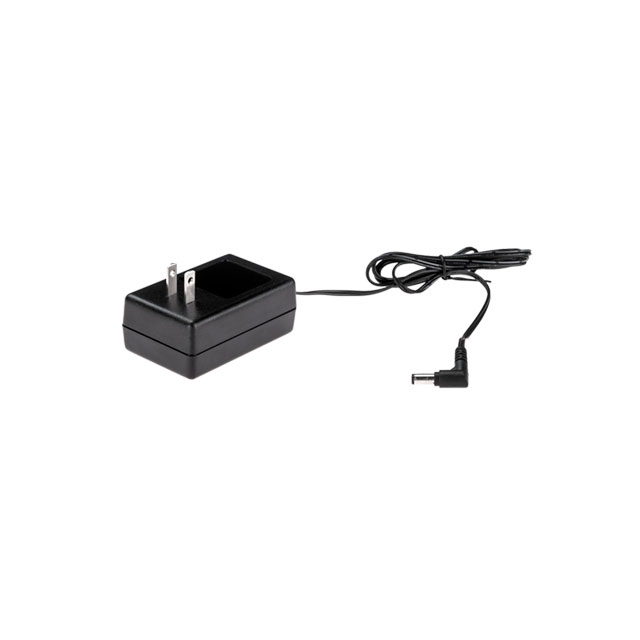

 Ideal Power Ltd. | 30 Watts | 12 V | 2.5 A | 3.02 " | 1.89 in | 48 mm | 76.8 mm | 1.22 in | 31 mm | cULus | 62368-1 | Level VI | Fixed Blade | North America | ITE (Commercial) | 40 °C | 0 °C | Wall Mount | 264 VAC | 90 VAC | NEMA 1-15P | |||||||||
Ideal Power Ltd. | 30 Watts | 24 V | 1.25 A | 3.02 " | 1.89 in | 48 mm | 76.8 mm | 1.22 in | 31 mm | cULus | 62368-1 | Level VI | Fixed Blade | North America | ITE (Commercial) | 40 °C | 0 °C | Wall Mount | 264 VAC | 90 VAC | NEMA 1-15P | |||||||||

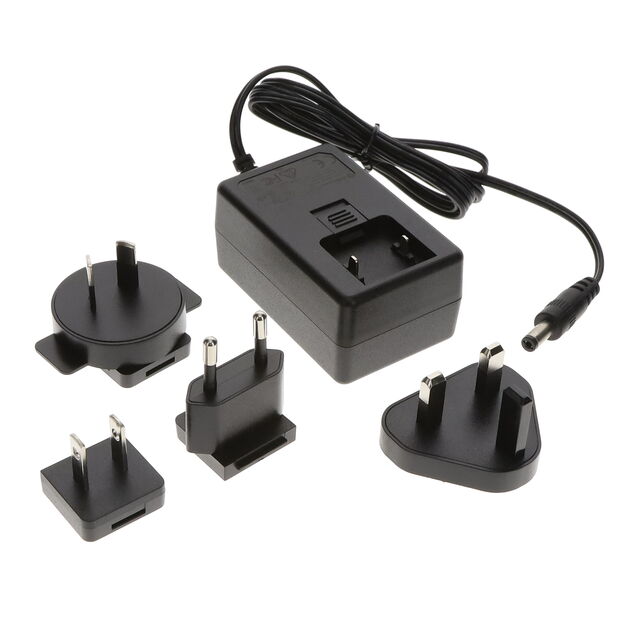

 Ideal Power Ltd. | 20 W | 5 V | 4 A | 3.02 " | 1.87 " | 47.5 mm | 76.8 mm | 1.38 in | 35 mm | CE cULus TUV UL | 62368-1 | Level VI | Multi-Blade (Included) | International | ITE (Commercial) | 40 °C | 0 °C | Wall Mount | 264 VAC | 90 VAC | Multi-Blade (Included) | 0.441 lb | 200.03 g | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | 1.5 m | 59 in | Positive Center |

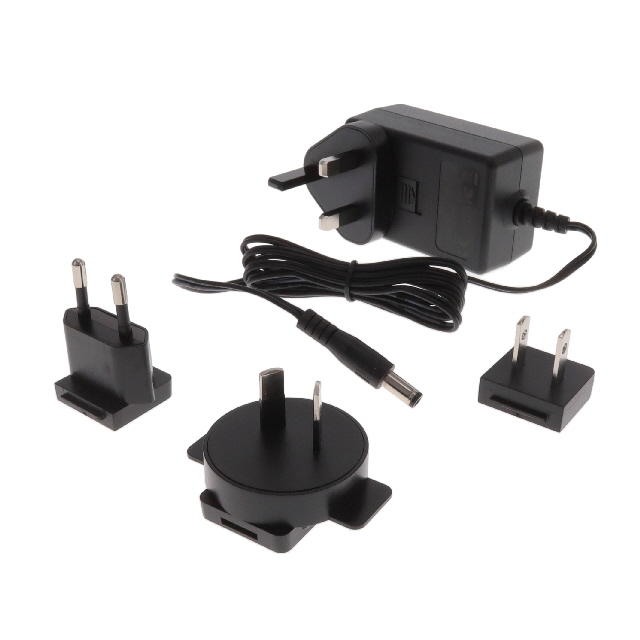

 Ideal Power Ltd. | 30 Watts | 12 V | 2.5 A | 3.02 " | 1.87 " | 47.5 mm | 76.8 mm | 1.38 in | 35 mm | CE cULus TUV UL | 62368-1 | Level VI | Multi-Blade (Included) | International | ITE (Commercial) | 40 °C | 0 °C | Wall Mount | 264 VAC | 90 VAC | Multi-Blade (Included) | 0.441 lb | 200.03 g | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | 1.5 m | 59 in | Positive Center |
