CMLB104T Series

Catalog

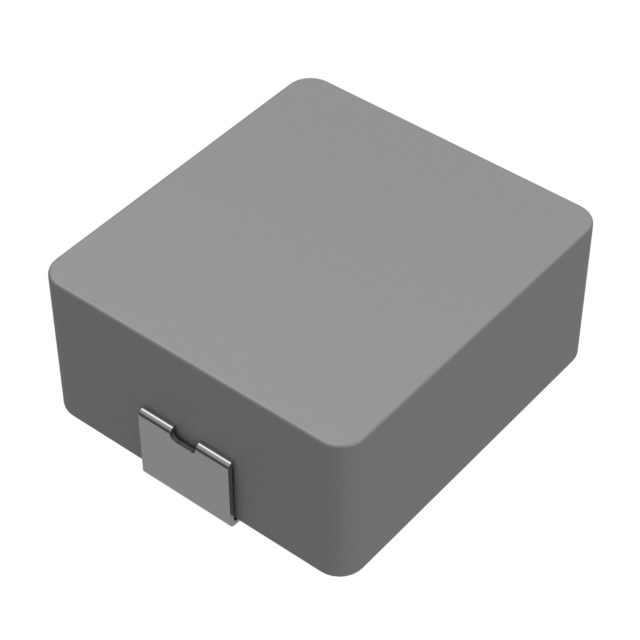

FIXED IND 1.5UH 16A 4.2MOHM SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Tolerance	Shielding	Mounting Type	Inductance	Inductance Frequency - Test	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLB104T-1R5MS	-55 C	125 °C	18 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	1.5 µH	100 kHz	16 A	0.439 in	10 mm	11.15 mm	0.394 in	Nonstandard	4.2 mOhm
Delta Electronics/Cyntec CMLB104T-R36MS	-55 C	125 °C	42 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	360 nH	100 kHz	33 A	0.439 in	10 mm	11.15 mm	0.394 in	Nonstandard		1.18 mOhm
Delta Electronics/Cyntec CMLB104T-R56MS	-55 C	125 °C	28 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	560 nH	100 kHz	25 A	0.439 in	10 mm	11.15 mm	0.394 in	Nonstandard		1.8 mOhm
Delta Electronics/Cyntec CMLB104T-220MS	-55 C	125 °C	5.4 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	22 µH	100 kHz	5 A	0.427 in	10 mm	10.85 mm	0.394 in	Nonstandard		66 mOhm
Delta Electronics/Cyntec CMLB104T-R15MS	-55 C	125 °C	64 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	150 nH	100 kHz	41 A	0.439 in	10 mm	11.15 mm	0.394 in	Nonstandard		0.55 mOhm
Delta Electronics/Cyntec CMLB104T-R22MS	-55 C	125 °C	59 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	220 nH	100 kHz	36 A	0.439 in	10 mm	11.15 mm	0.394 in	Nonstandard	0.93 mOhm
Delta Electronics/Cyntec CMLB104T-1R0MS	-55 C	125 °C	26 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	1 µH	100 kHz	19 A	0.439 in	10 mm	11.15 mm	0.394 in	Nonstandard	3.3 mOhm
Delta Electronics/Cyntec CMLB104T-150MS	-55 C	125 °C	6.9 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	15 µH	100 kHz	6.3 A	0.427 in	10 mm	10.85 mm	0.394 in	Nonstandard		45 mOhm
Delta Electronics/Cyntec CMLB104T-4R7MS	-55 C	125 °C	13 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	4.7 ÁH	100 kHz	8.5 A	0.427 in	10 mm	10.85 mm	0.394 in	Nonstandard		20 mOhm
Delta Electronics/Cyntec CMLB104T-330MS	-55 C	125 °C	5 A	4 mm	0.157 in	Metal	20 %	Shielded	Surface Mount	33 µH	100 kHz	4.4 A	0.427 in	10 mm	10.85 mm	0.394 in	Nonstandard		91 mOhm
