TXL7-96 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

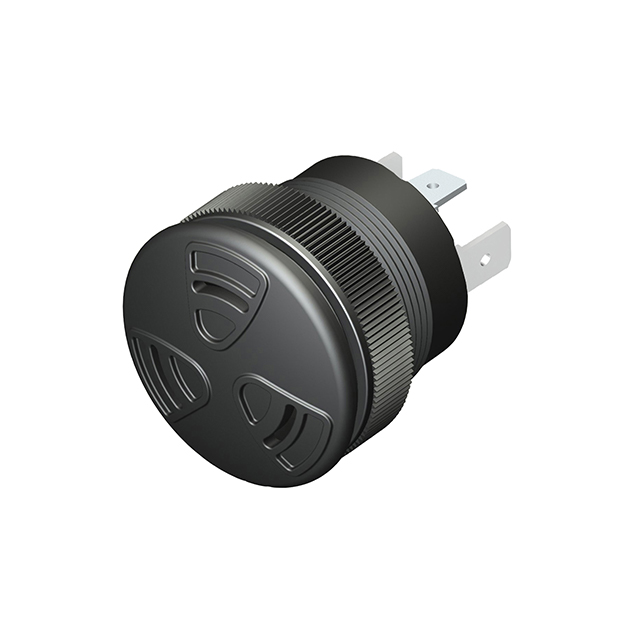

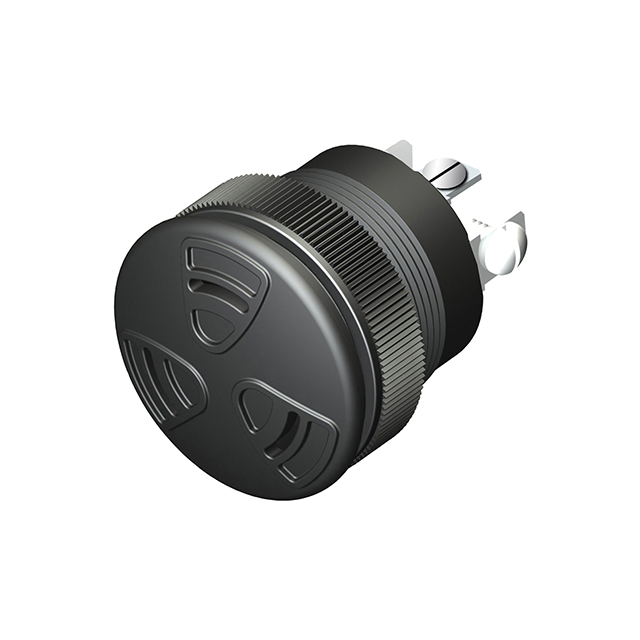

BUZZER PIEZO 51.31MM PNL MNT
| Part | Frequency | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Range [Max] | Voltage Range [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Technology | Approval Agency | Operating Mode | Sound Pressure Level (SPL) | Ingress Protection | Port Location | Driver Circuitry | Input Type | Termination | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 1.8 kHz | 15 mA | 45 mA | Panel Mount | 2.02 in | 51.31 mm | 30 V | 9 V | 41.4 mm | 1.63 in | Piezo | UL UR | Multiple Tone | 108 dB | IP68 - Dust Tight Waterproof | Top | Indicator Internally Driven | DC | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm |
 Floyd Bell Inc | 1.8 kHz | 15 mA | 45 mA | Panel Mount | 2.02 in | 51.3 mm | 30 V | 9 V | 41.4 mm | 1.63 in | Piezo | UL UR | Multiple Tone | 108 dB | IP68 - Dust Tight Waterproof | Top | Indicator Internally Driven | DC | 0.25 " | Quick Connect Tab | 6.35 mm |
