UT071 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN RCPT HSNG MALE 23POS PNL MT
| Part | Note | Housing Color | Orientation | Contact Shape | Shell Finish | Operating Temperature (Min) | Operating Temperature (Max) | Shielding | Fastening Type | Insert Material | Ingress Protection Description | Ingress Protection IP Rating | Connector Type | Mounting Type | Shell Material | Number of Positions | Mounting Feature | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Contact Size | Type | Contact Type | Material Flammability Rating | Shell Size - Insert Width | Shell Size - Insert Length | Shell Size - Insert | Position Types |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

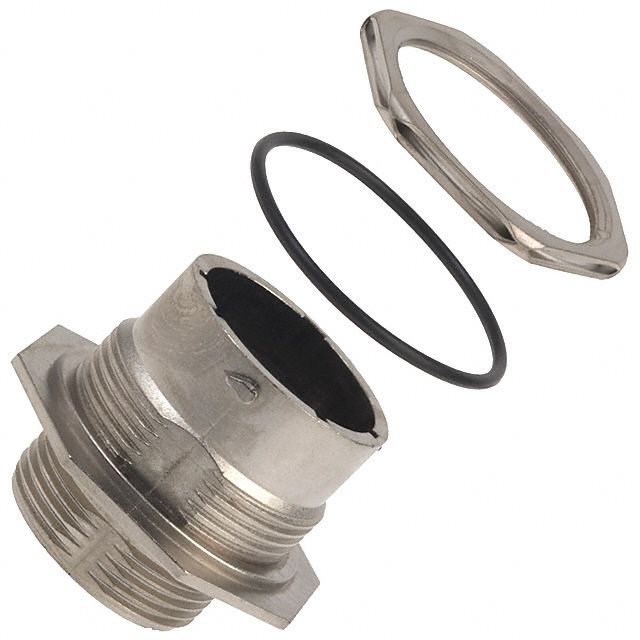

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 23 | Bulkhead Front Side Nut | 23 | 18 | 16 S | For Male Pins | Crimp Solder | UL94 V-0 | ||||

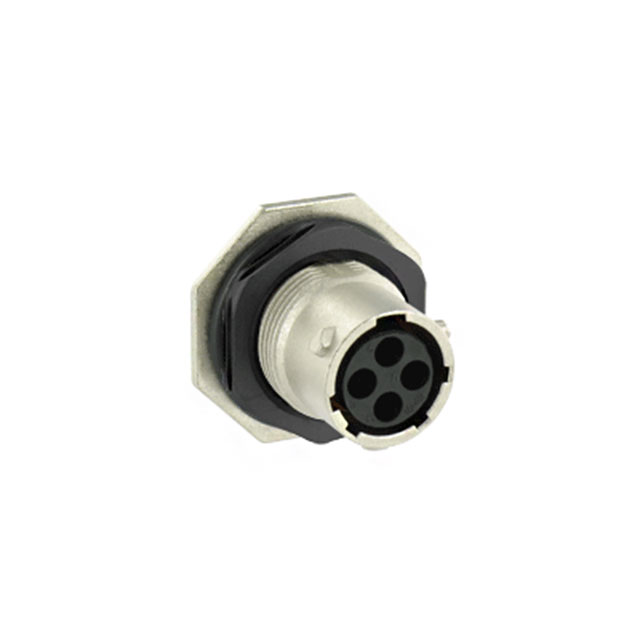

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 4 | Bulkhead Front Side Nut | 16 S | For Female Sockets | Crimp Solder | UL94 V-0 | 4 mm | 10 mm | ||||

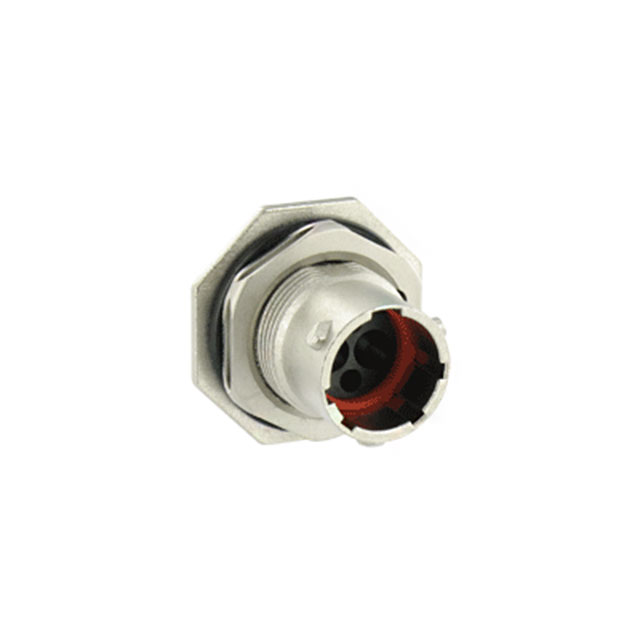

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Water Resistant Waterproof | IP68 IP69K | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 4 | Bulkhead Front Side Nut | 12 20 | For Male Pins | Crimp Solder | UL94 V-0 | 10-2W2 | |||||
Amphenol Aerospace Operations | Contacts Not Included | Silver | W | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 12 | Bulkhead Front Side Nut | 16 S | For Male Pins | Crimp Solder | UL94 V-0 | 12 mm | 14 mm | ||||

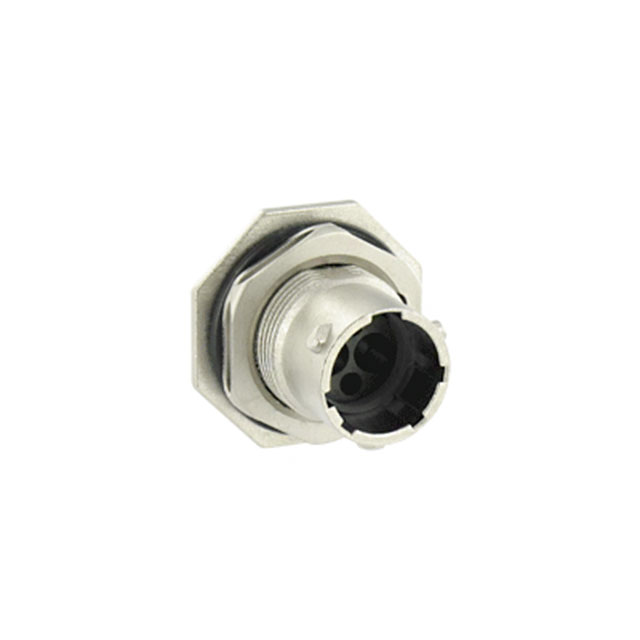

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 4 | Bulkhead Front Side Nut | 12 20 | For Male Pins | Crimp Solder | UL94 V-0 | 10-2W2 | |||||

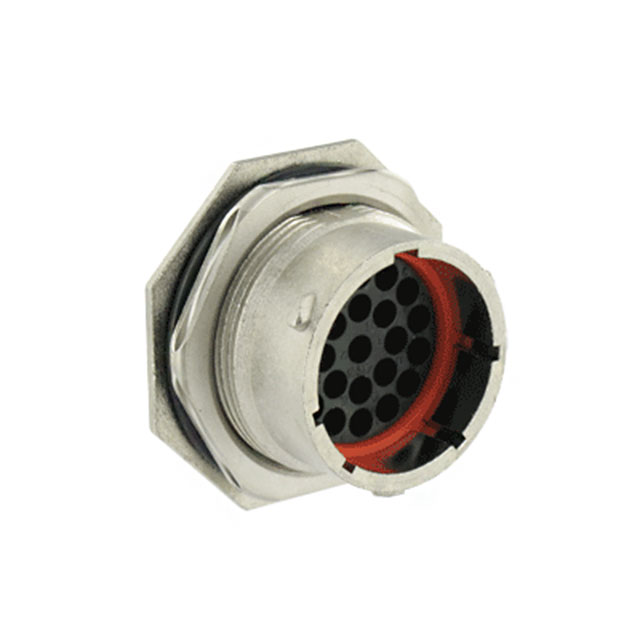

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Water Resistant Waterproof | IP68 IP69K | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 23 | Bulkhead Front Side Nut | 23 | 18 | 16 S | For Male Pins | Crimp Solder | UL94 V-0 | ||||
Amphenol Aerospace Operations | Contacts Not Included | Silver | W | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 19 | Bulkhead Front Side Nut | 19 | 16 S | 16 S | For Female Sockets | Crimp Solder | UL94 V-0 | ||||
Amphenol Aerospace Operations | Contacts Not Included | Silver | W | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 4 | Bulkhead Front Side Nut | 16 S | For Male Pins | Crimp Solder | UL94 V-0 | 4 mm | 10 mm | ||||

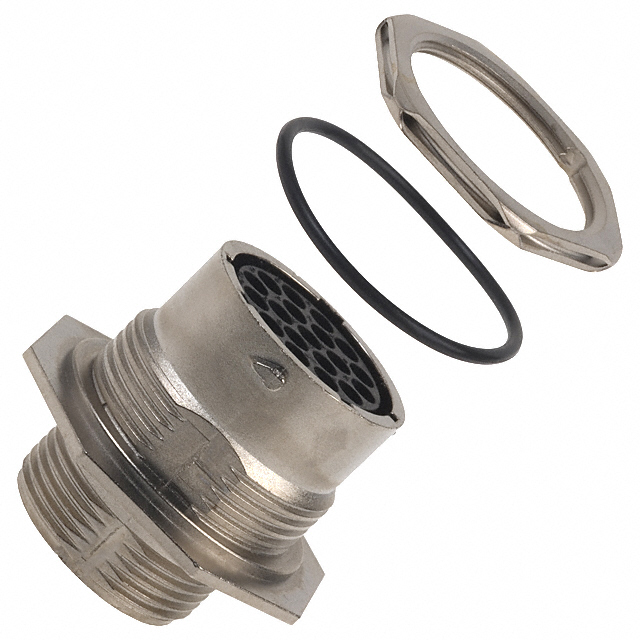

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 19 | Bulkhead Front Side Nut | 19 | 16 S | 16 S | For Female Sockets | Crimp Solder | UL94 V-0 | ||||

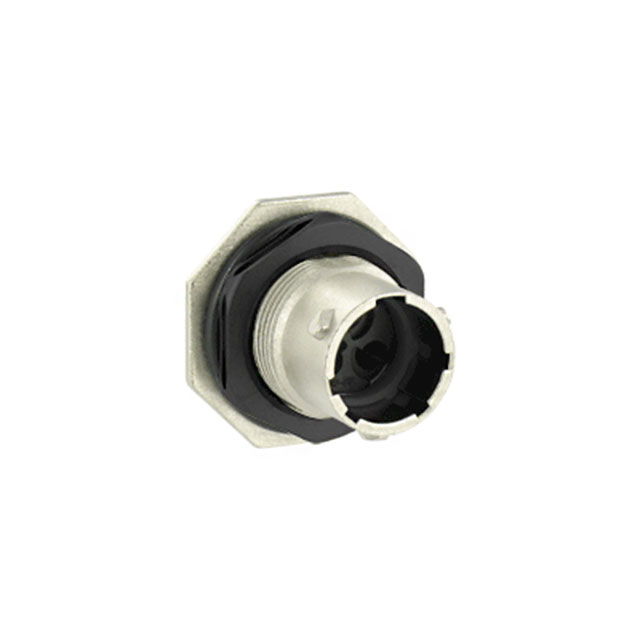

 Amphenol Aerospace Operations | Contacts Not Included | Silver | N (Normal) | Circular | Nickel | -40 °C | 105 °C | Shielded | Bayonet Lock | Glass Filled Thermoplastic | Dust Tight Waterproof | IP67 | Receptacle Housing | Panel Mount | Halogen Free Zinc Alloy | 3 | Bulkhead Front Side Nut | 16 S | For Male Pins | Crimp Solder | UL94 V-0 | 3 mm | 10 mm | PE |
