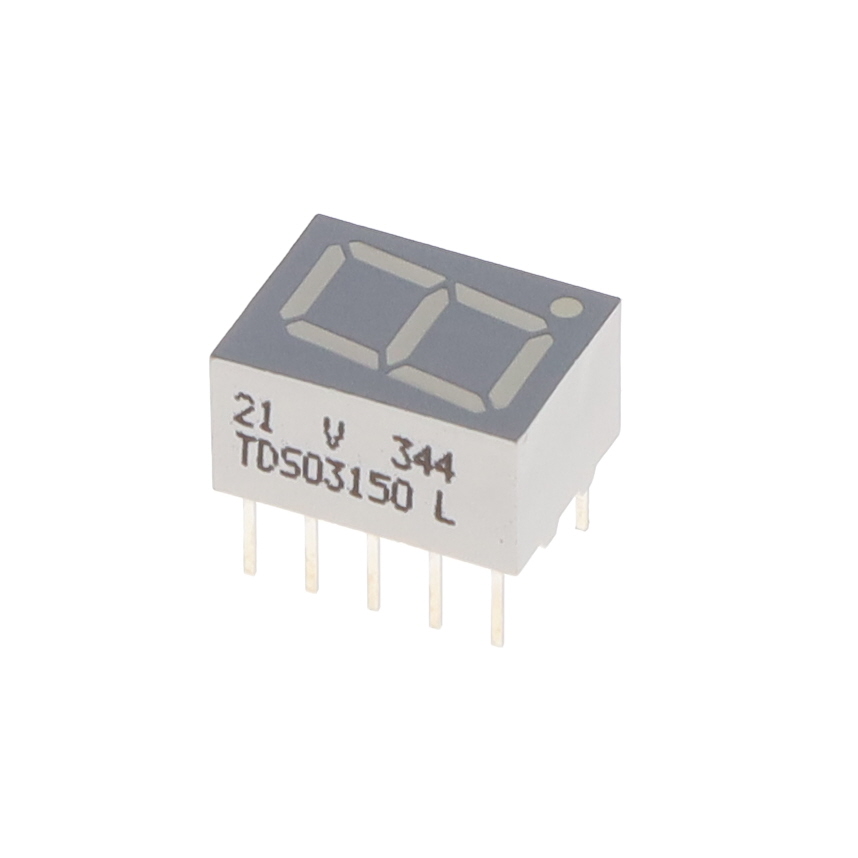

TDSO3150 Series

Catalog

DISP 7SEG 0.39" SGL OR-RED 10DIP

Part	Color	Display Type	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Wavelength - Peak	Current - Test	Number of Characters [custom]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Common Pin
Vishay General Semiconductor - Diodes Division TDSO3150-L	Orange-Red	7-Segment	480 mW	2 V	0.39 in	10 mm	5.6 mcd	630 nm	20 mA	1	6.4 mm 9.45 mm 12.6 mm	0.5 in	0.252 in	0.372 in	Common Anode
Vishay General Semiconductor - Diodes Division TDSO3150-KL	Orange-Red	7-Segment	480 mW	2 V	0.39 in	10 mm	5.6 mcd	630 nm	20 mA	1	6.4 mm 9.45 mm 12.6 mm	0.5 in	0.252 in	0.372 in	Common Anode
