1304A4 Series
Manufacturer: Belden Inc.
Beta
⌘K

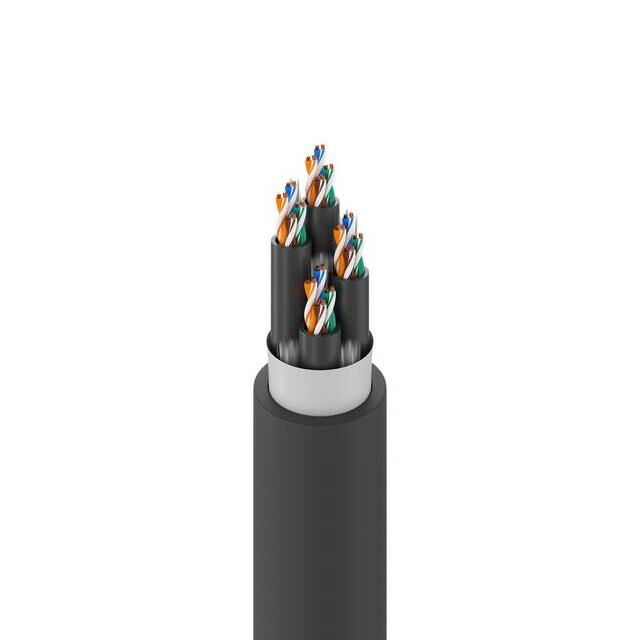

4 CHANNEL 4PR #24 PO FRPVC PVC
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket Color | Cable Type | Length | Length | Voltage | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 7 | 32 AWG | Polypropylene (PP) | 75 ░C | -30 ░C | Poly-Vinyl Chloride (PVC) | 19.1 mm | 0.752 in | 24 AWG | Copper Bare | 1.905 mm | 0.075 in | 32 | Black | Multi-Pair Cat5e | 304.8 m | 1000 ft | 300 VDC | Audio Ethernet |
