L6R20 Series

Catalog

AC/DC WALL MOUNT ADAPTER 9V 20W

Part	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Form	Approval Agency	Cord Length	Cord Length	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Input Connector	Applications	Input Type	Efficiency	Standard Number
Tri-Mag, LLC L6R20-090	9 V	40 °C	0 °C	North America	Wall Mount	cUL FCC UL	1.5 m	59 in	2.22 A	26.5 mm	1.04 in	59 mm	2.32 in	41 mm	1.61 in	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC	20 W	NEMA 1-15P	ITE (Commercial)	Fixed Blade	Level VI	62368-1

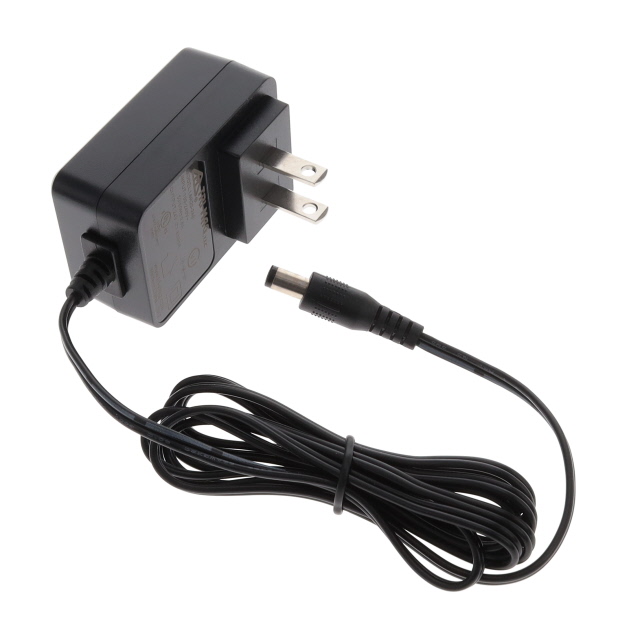

Tri-Mag, LLC L6R20-240	24 V	40 °C	0 °C	North America	Wall Mount	cUL FCC UL	1.5 m	59 in	830 mA	26.5 mm	1.04 in	59 mm	2.32 in	41 mm	1.61 in	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC	20 W	NEMA 1-15P	ITE (Commercial)	Fixed Blade	Level VI	62368-1
