LMH6554 Series

Catalog

2.8 GHZ ULTRA LINEAR FULLY DIFFERENTIAL AMPLIFIER

Part	Output Type	Current - Output / Channel	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Number of Circuits	-3db Bandwidth	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Amplifier Type	Slew Rate	Package / Case	Channels per IC	Utilized IC / Part	Current - Supply (Main IC)	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Board Type	Supplied Contents

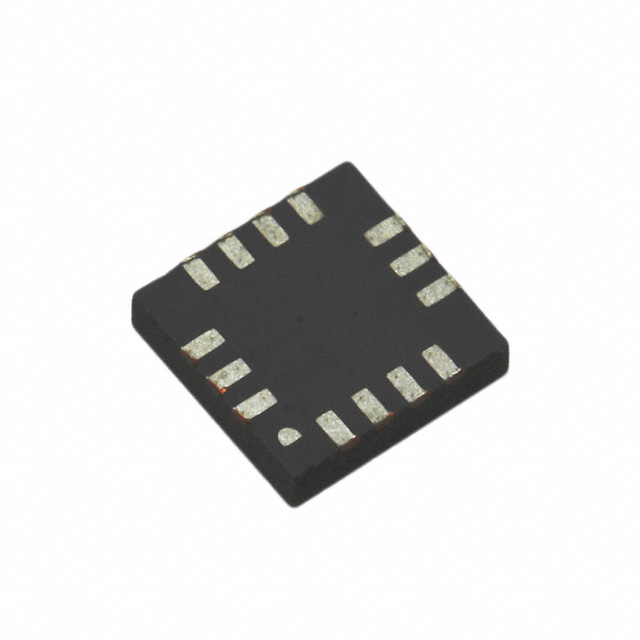

Texas Instruments LMH6554LEE/NOPB	Differential	150 mA	14-UQFN (2.5x2.5)	5.25 V	6.5 mV	1	2.8 GHz	Surface Mount	125 °C	-40 °C	1 µA	4.7 V	Current Feedback	6200 V/µs	14-UFQFN
Texas Instruments LMH6554LE/NOPB	Differential	150 mA	14-UQFN (2.5x2.5)	5.25 V	6.5 mV	1	2.8 GHz	Surface Mount	125 °C	-40 °C	1 µA	4.7 V	Current Feedback	6200 V/µs	14-UFQFN

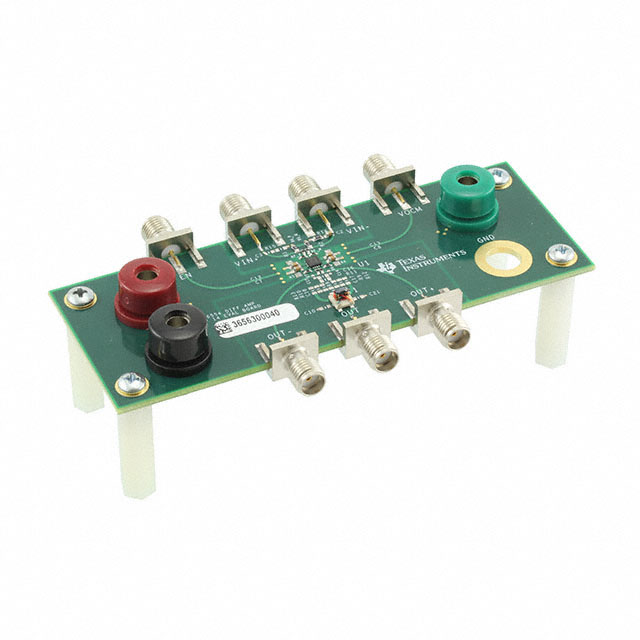

Texas Instruments LMH6554LE-EVAL/NOPB	Differential	150 mA					2.8 GHz						Current Feedback	6200 V/µs		1 - Single	LMH6554	52 mA	4.7 V	5.25 V	Fully Populated	Board(s)
