2314877 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

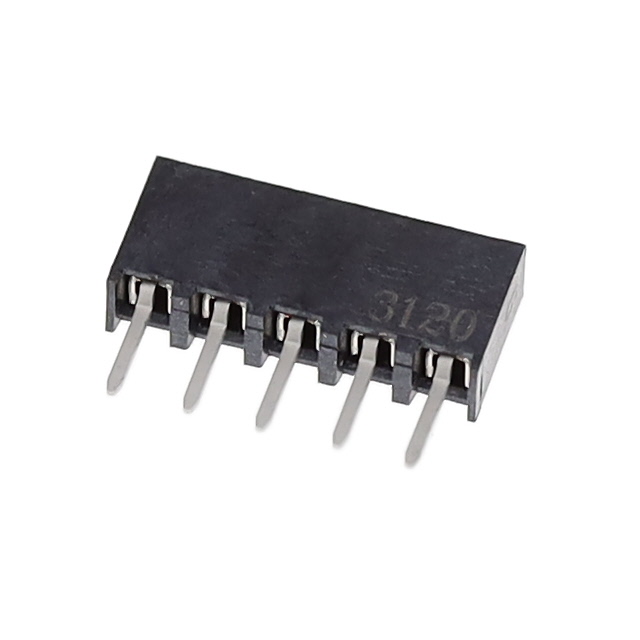

5P,2MM,B-B,REC,SRVT,2.7,0.38AU,T
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Mating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Connector Type | Termination | Number of Positions Loaded | Voltage Rating | Number of Rows | Contact Material | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | 0.177 in | 4.5 mm | Through Hole | Gold | Black | 3 µm | 118.1 µin | Square | 125 °C | -40 °C | Liquid Crystal Polymer (LCP) | Receptacle | Solder | All | 125 VDC | 1 | Phosphor Bronze | Tin | 15 µin | 0.38 µm | Push-Pull | 2 A | 0.106 in | 2.69 mm | UL94 V-0 | Female Socket |
