MW173KB2403 Series

Catalog

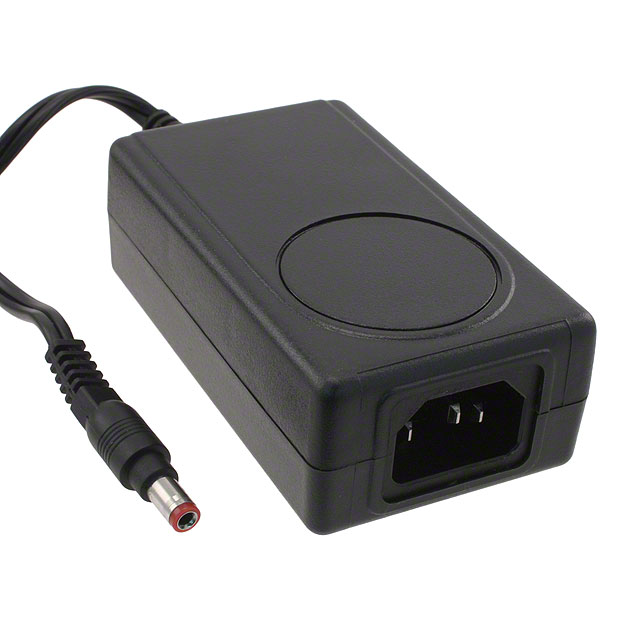

AC/DC WALL MOUNT ADAPTER 24V 32W

Part	Form	Approval Agency	Input Type	Power (Watts)	No Load Power Consumption	Input Connector	Polarization	Voltage - Output	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Cord Length	Cord Length	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]
SL POWER / Advanced Energy MW173KB2403B01	Wall Mount	CE cULus	Fixed Blade	32 W	500 mW	NEMA 1-15P	Positive Center	24 V	Medical	95 mm	2.13 in	33 mm	1.26 "	54 mm	3.74 "	100 VAC	240 VAC	1.33 A	70.9 "	1.8 m	Level IV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	North America	40 °C	0 °C
SL POWER / Advanced Energy MW173KB2403F01	Desktop (Class I)	CE cULus	Cord (Sold Separately)	32 W	500 mW	IEC 320-C14	Positive Center	24 V	Medical	95 mm	2.13 in	33 mm	1.26 "	54 mm	3.74 "	100 VAC	240 VAC	1.33 A	70.9 "	1.8 m	Level IV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	International	40 °C	0 °C
