A3UL-TMU Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Actuator Marking	Voltage Rating - DC	Color - Actuator/Cap	Mounting Type	Circuit	Ingress Protection	Switch Function	Type	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination Voltage (Nominal)	Current Rating (Amps)	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
Omron Automation and Safety A3UL-TMU-2A1C-5M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	SPDT	IP65	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	12 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector

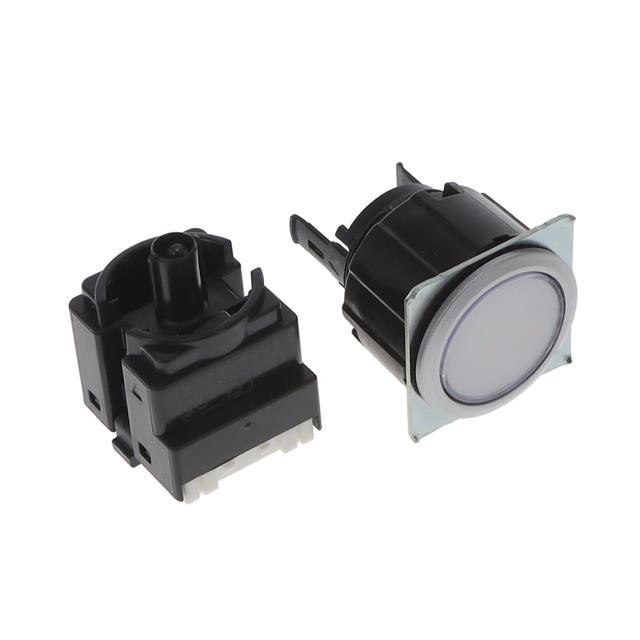

Omron Automation and Safety A3UL-TMU-1A1C-5M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	SPDT	IP65	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	5 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-3A2C-M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	DPDT	IP40	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	24 V	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-2A2C-M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	DPDT	IP40	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	12 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-2A1C-M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	SPDT	IP40	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	12 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-3A2C-5M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	DPDT	IP65	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	24 V	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-1A2C-M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	DPDT	IP40	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	5 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector

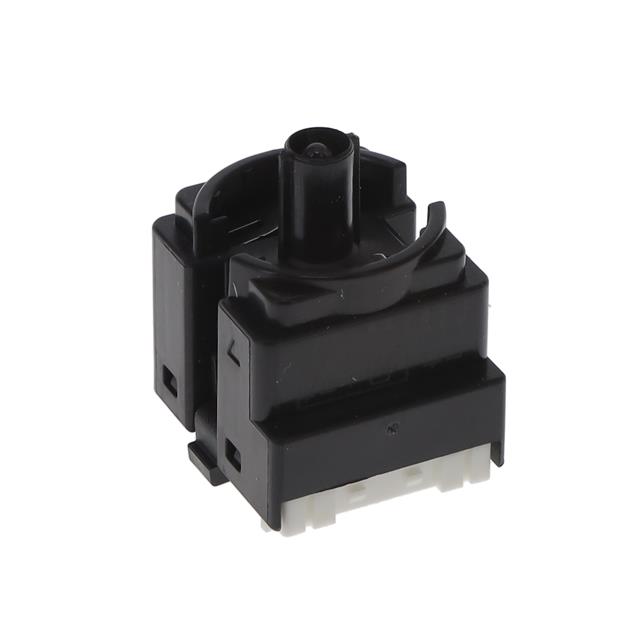

Omron Automation and Safety A3UL-TMU-2A2C-5M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	DPDT	IP65	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	12 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-3A1C-M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	SPDT	IP40	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	24 V	100 mA	LED Umber	55 °C	-20 ░C	Connector
Omron Automation and Safety A3UL-TMU-1A1C-M-S	200000 Cycles	1000000 Cycles	No Marking	30 V	Clear	Panel Mount Front	SPDT	IP40	On-Mom	Illuminated Standard	25.2 mm	Button Flush Round	5 VDC	100 mA	LED Umber	55 °C	-20 ░C	Connector
