GZC20 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 20POS 2.54MM

Part	Mounting Type	Fastening Type	Insulation Color	Insulation Material	Contact Finish - Mating	Style	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Type	Current Rating (Amps)	Number of Rows	Connector Type	Material Flammability Rating	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions GZC20SBSN-M89	Surface Mount Right Angle	Push-Pull	Black	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	0.23 in	5.84 mm	125 °C	-65 ░C	Square	Phosphor Bronze	10 çin	0.25 çm	Solder	Male Pin	3 A	1	Header	UL94 V-0	All	Unshrouded	0.1 in	2.54 mm	600 V	Tin-Lead	20	3.56 mm	0.14 in	2.54 µm	100 µin
Sullins Connector Solutions GZC20SGSN-M89	Surface Mount Right Angle	Push-Pull	Black	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	0.318 "		125 °C	-65 ░C	Square	Phosphor Bronze	10 çin	0.25 çm	Solder	Male Pin	3 A	1	Header	UL94 V-0	All	Unshrouded	0.1 in	2.54 mm	600 V	Tin-Lead	20	3.56 mm	0.14 in	2.54 µm	100 µin	8.08 mm

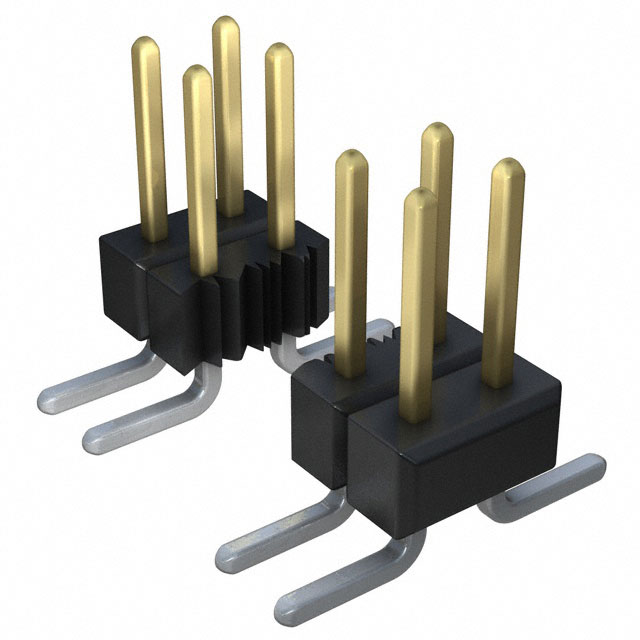

Sullins Connector Solutions GZC20DABN-M30	Surface Mount	Push-Pull	Black	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	0.23 in	5.84 mm	125 °C	-65 ░C	Square	Phosphor Bronze	10 çin	0.25 çm	Solder	Male Pin	3 A	2	Header	UL94 V-0	All	Unshrouded	0.1 in	2.54 mm	600 V	Tin-Lead	40	2.54 mm	0.1 in	2.54 µm	100 µin		2.54 mm	0.1 in
Sullins Connector Solutions GZC20SABN-M30	Surface Mount	Push-Pull	Black	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	0.23 in	5.84 mm	125 °C	-65 ░C	Square	Phosphor Bronze	10 çin	0.25 çm	Solder	Male Pin	3 A	1	Header	UL94 V-0	All	Unshrouded	0.1 in	2.54 mm	600 V	Tin-Lead	20	2.54 mm	0.1 in	2.54 µm	100 µin
