LM5026 Series

Catalog

IC REG CTRLR FWRD CONV 16WSON

Part	Operating Temperature [Min]	Operating Temperature [Max]	Duty Cycle (Max)	Function	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Control Features	Topology	Output Configuration	Output Phases	Number of Outputs	Supplier Device Package	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type	Package / Case	Package / Case [x]	Package / Case [y]	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part	Main Purpose	Board Type	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Current - Output
Texas Instruments LM5026SDX/NOPB	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-WSON (5x5)	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-WFDFN Exposed Pad
Texas Instruments LM5026MT-TI	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-TSSOP	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-TSSOP	0.173 in	4.4 mm
Texas Instruments LM5026MT	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-TSSOP	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-TSSOP	0.173 in	4.4 mm
Texas Instruments LM5026MTX/NOPB	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-TSSOP	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-TSSOP	0.173 in	4.4 mm

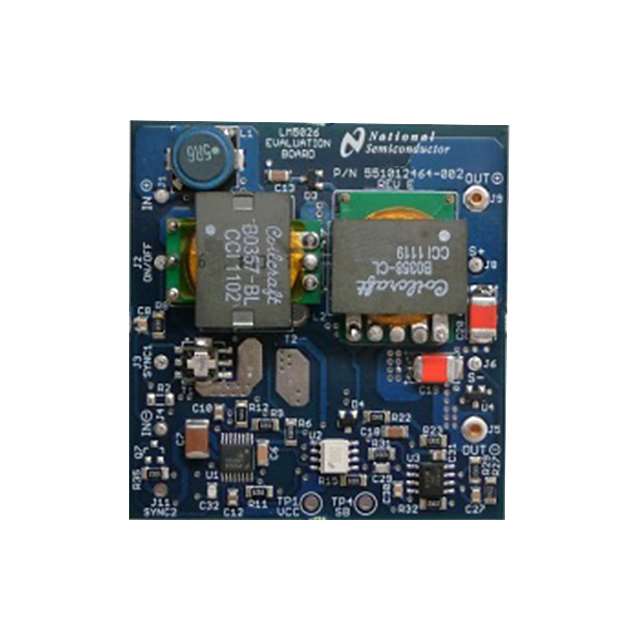

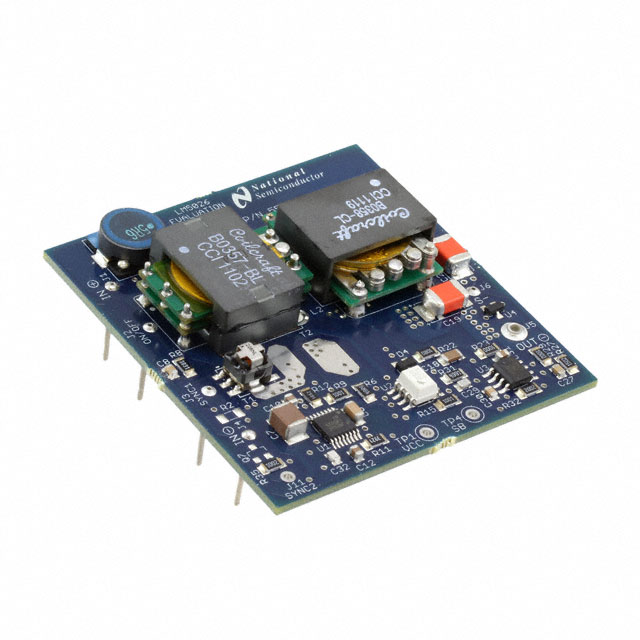

Texas Instruments LM5026EVAL/NOPB																				Board(s)	Isolated	1	LM5026	DC/DC Step Down	Fully Populated	Buck	36 V	78 V	3.3 V	30 A
Texas Instruments LM5026MTX	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-TSSOP	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-TSSOP	0.173 in	4.4 mm
Texas Instruments LM5026SD/NOPB	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-WSON (5x5)	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-WFDFN Exposed Pad
Texas Instruments LM5026SDX	-40 °C	125 ¯C	70 % 80 %	Step-Up/Step-Down	15 V	8 V	Dead Time Control Frequency Control Reset Soft Start	Forward Converter	Isolation Capable Positive	1	2	16-WSON (5x5)	Surface Mount	590 kHz	200 kHz	Transistor Driver	16-WFDFN Exposed Pad
Texas Instruments LM5026EVAL																				Board(s)	Isolated	1	LM5026	DC/DC Step Down	Fully Populated	Buck	36 V	78 V	3.3 V	30 A
