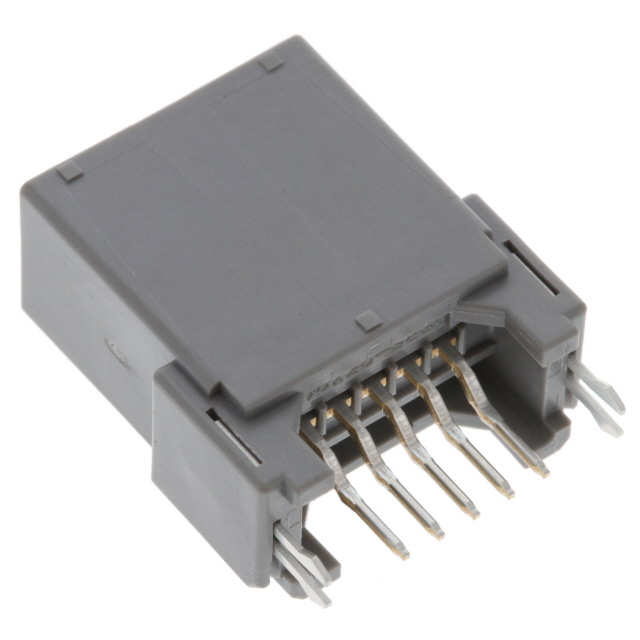

MX34005U Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER VERT 5POS 2.2MM
| Part | Applications | Contact Material | Number of Rows | Contact Length - Mating | Contact Length - Mating | Number of Positions | Number of Positions Loaded | Contact Finish - Post | Mounting Type | Insulation Color | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Termination | Connector Type | Shrouding | Contact Type | Features | Contact Shape | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Brass | 1 | 0.303 in | 7.7 mm | 5 | All | Tin | Through Hole | Gray | 0.594 in | 15.09 mm | 0.126 " | 3.2 mm | Glass Filled Syndiotactic Polystyrene (SPS) | Solder | Header | Shrouded - 4 Wall | Male Pin | Board Lock | Square | 0.087 in | 2.2 mm | 3 A | Locking Ramp | 85 °C | -40 C | Board to Cable/Wire |
